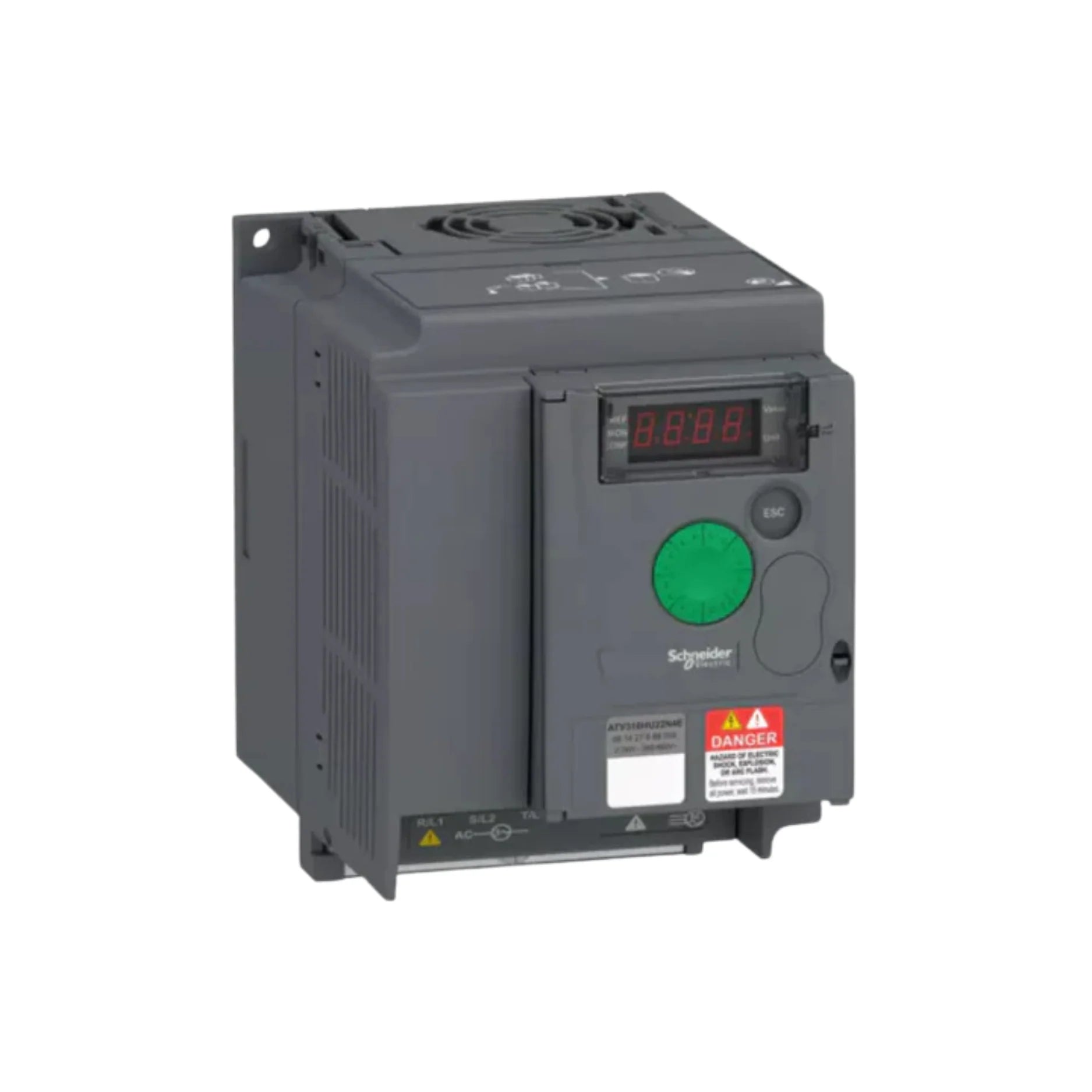

Schneider Electric ATV310HU22N4E

Overview

Experience precision and efficiency in motor control with the Schneider Electric ATV310HU22N4E. This advanced variable speed drive (VSD) is engineered to deliver exceptional performance for 2.2 kW (3 horsepower) asynchronous motors operating on 380–460V AC, 3-phase power supplies. Part of the renowned Altivar 310 series, this unit is your go-to solution for enhancing operational reliability, reducing energy consumption, and providing nuanced control across a diverse spectrum of industrial machinery. Its robust design and sophisticated control algorithms ensure your applications run smoothly and economically.

Key Features

• Dynamic Power Handling: Rated for 2.2 kW (3 hp) output, perfect for a variety of industrial motor demands.
• Versatile Voltage Input: Compatible with 380–460V AC, 3-phase electrical systems, offering broad applicability.
• Extensive Output Frequency Range: Provides precise motor speed regulation from 0.5 Hz up to 400 Hz.
• Sensorless Vector Control: Advanced control method optimized for asynchronous motors, ensuring smooth and accurate performance without extensive sensor feedback.
• Adaptive Overload Capabilities:
  • For Heavy-Duty Operations: Sustains 150% of the motor's rated current for up to 60 seconds.
  • For Normal-Duty Operations: Handles 110% of the motor's rated current for up to 60 seconds.
• Integrated C2 EMC Filter: Reduces electromagnetic interference, safeguarding sensitive equipment and ensuring compliance.
• Flexible Communication Options: Supports both Modbus RTU and CANopen protocols for seamless integration into existing control architectures.
• Enhanced Safety Functionality: Features Safe Torque Off (STO) to prevent unexpected motor startup, boosting operational security.
• Compact & Efficient Mounting: Engineered for space-saving wall or panel installation.
• IP20 Protection Rating: Offers protection against solid objects, suitable for controlled industrial environments.

Technical Specifications

• Model Identification: ATV310HU22N4E
• Product Line: Altivar 310 Series
• Input Power Requirements: 380–460V AC, 3-phase
• Output Power Rating: 2.2 kW (3 hp)
• Rated Output Current Specifications:
  • Heavy Duty: 5.0 Amperes
  • Normal Duty: 6.5 Amperes
• Adjustable Output Frequency: 0.5 Hz to 400 Hz
• Peak Overload Capacity: 150% for 60 seconds (Heavy Duty applications)
• Control Signal Inputs: 6 customizable digital inputs, along with 1 analog input.
• Discrete Control Outputs: Three outputs provided (two open collector, one relay).
• Thermal Management: Utilizes forced convection cooling to maintain optimal operating temperatures.
• Operational Temperature Range: From -10°C to +50°C.
• Physical Dimensions (H x W x D): Approximately 232 x 150 x 172 mm.
• Unit Mass: Around 3.7 kg.
• Global Compliance: CE, UL, CSA, EAC, RCM certified for international standards adherence.

Applications

• Pumping and Ventilation Systems: Achieve precise control over fluid dynamics and airflow, contributing to considerable energy savings.
• Material Handling Conveyors: Facilitate gentle starts and stops, reducing wear and tear on machinery and conveyed goods.
• Industrial Mixers and Agitators: Maintain consistent torque for superior blending and mixing processes.
• HVAC Infrastructure: Optimize the performance of heating, ventilation, and air conditioning systems for improved building efficiency.
• General Purpose Manufacturing Equipment: A versatile solution for a broad array of motor control tasks across various industrial settings.

Why Choose This Model?

The Schneider Electric ATV310HU22N4E stands out as a highly reliable and cost-effective solution for modern industrial environments. Its intelligent design prioritizes energy optimization, actively working to reduce your operational expenses by minimizing power consumption. The compact yet robust construction ensures dependable performance even in demanding conditions, offering longevity and consistent uptime. With flexible integration capabilities via Modbus RTU and CANopen, this VSD easily adapts to your existing control networks. Furthermore, the inclusion of advanced safety features like Safe Torque Off provides peace of mind, proactively safeguarding both equipment and personnel. Invest in the ATV310HU22N4E for a clear advantage in efficiency, control, and safety.

Order Now

Elevate your industrial processes today. This Schneider Electric ATV310HU22N4E variable speed drive is ready for immediate dispatch, with expedited worldwide shipping available to meet your project deadlines regardless of location.
