Schneider Electric ATV310HU15N4E

Overview

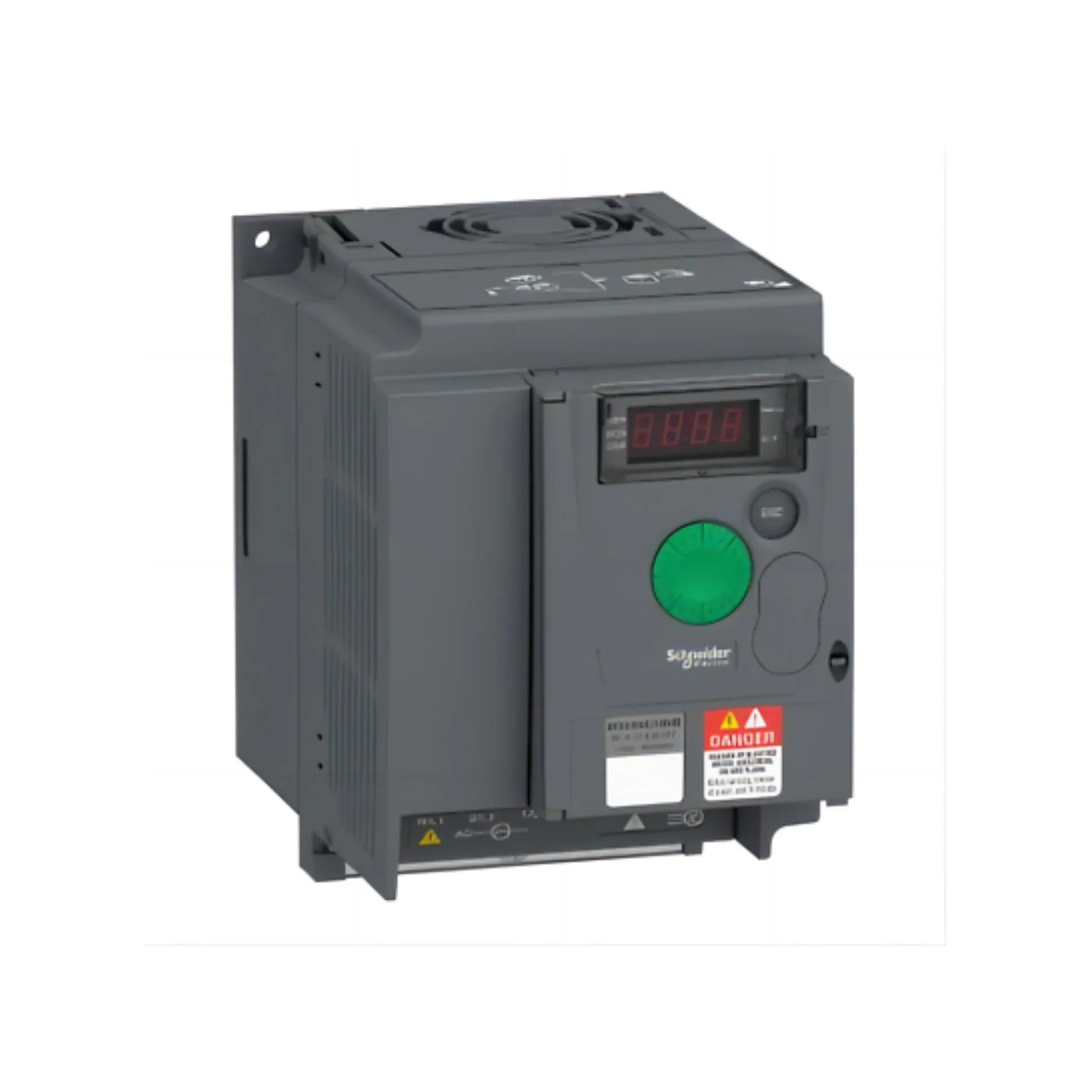

Unlock unparalleled motor control with the Schneider Electric ATV310HU15N4E, a robust 1.5 kW (2 hp) Variable Frequency Drive from the esteemed Altivar 310 series. Engineered for seamless integration and exceptional performance, this VFD is your go-to solution for precise management of three-phase asynchronous motors across diverse industrial applications. Its compact design belies its powerful capabilities, making it an ideal choice for machinery where space is at a premium but efficiency cannot be compromised.

Key Features

• Optimized Power Delivery: Provides 1.5 kW (2 hp) of reliable power, perfectly matched for a range of industrial motors.
• Versatile Input Voltage: Operates efficiently with a 380–460V AC, 3-phase input, ensuring broad compatibility.
• Expansive Output Frequency Range: Delivers flexible motor speed control from 0.5 to 400 Hz, catering to varied operational needs.
• Advanced Motor Control: Features sensorless vector control for asynchronous motors, guaranteeing smooth and accurate performance.
• Exceptional Overload Tolerance: Built to withstand demanding conditions with 150% overload for 60 seconds (Heavy Duty) and 110% for 60 seconds (Normal Duty).
• Integrated Communication: Equipped with Modbus RTU (RJ45) for straightforward integration into existing control systems.
• Intelligent Built-in Functions: Includes PID control for process regulation, multi-speed operation for enhanced versatility, flying start capability, and auto-tuning for simplified commissioning.
• Integrated EMC Filter: Features a C2 class EMC filter, minimizing electromagnetic interference and ensuring compliance.

Technical Specifications

• Model Identifier: ATV310HU15N4E
• Product Series: Altivar 310
• Operating Voltage: 380–460V AC ±10%
• Output Amperage: 4.1 A (optimized for Heavy Duty applications)
• Adjustable Frequency Output: 0.5–400 Hz
• Cooling Method: Efficient forced convection
• Ingress Protection: IP20 rated, suitable for protected environments
• Installation Flexibility: Designed for both wall and panel mounting
• Operational Temperature Range: Resilient performance from -10°C to +50°C
• Physical Dimensions (H x W x D): Approximately 143 mm x 104 mm x 151 mm
• Unit Weight: Approximately 1.9 kg
• Compliance & Certifications: CE, UL, CSA, EAC approved, ensuring global standards.

Applications

• Precision Pumping & Ventilation: Achieve significant energy savings and ultra-smooth flow regulation for pump and fan systems.
• Material Handling Systems: Implement controlled acceleration and deceleration for conveyors, reducing wear and tear while optimizing throughput.
• Mixing & Agitation Processes: Maintain stable and consistent speeds for agitators and mixers, even under fluctuating load conditions.
• General Industrial Equipment: An ideal and compact solution for a broad spectrum of industrial machines requiring reliable motor control.

Why Choose This Model?

The ATV310HU15N4E stands out as a prime choice for professionals seeking a blend of performance, reliability, and ease of use. This VFD is purpose-built for demanding industrial tasks, promising consistent and dependable operation even in challenging environments. Its remarkable energy efficiency capabilities actively contribute to reducing operational costs by intelligently managing power consumption. Furthermore, the compact footprint of this drive is a significant advantage, allowing for optimal space utilization within control cabinets without sacrificing functionality. With its straightforward configuration process and seamless Modbus integration, setting up and connecting this drive into your existing infrastructure is remarkably simple, minimizing downtime and maximizing productivity.

Order Now

Secure your Schneider Electric ATV310HU15N4E today. This high-performance Variable Frequency Drive is currently available in stock and ready for expedited global delivery, bringing advanced motor control directly to your operations.
