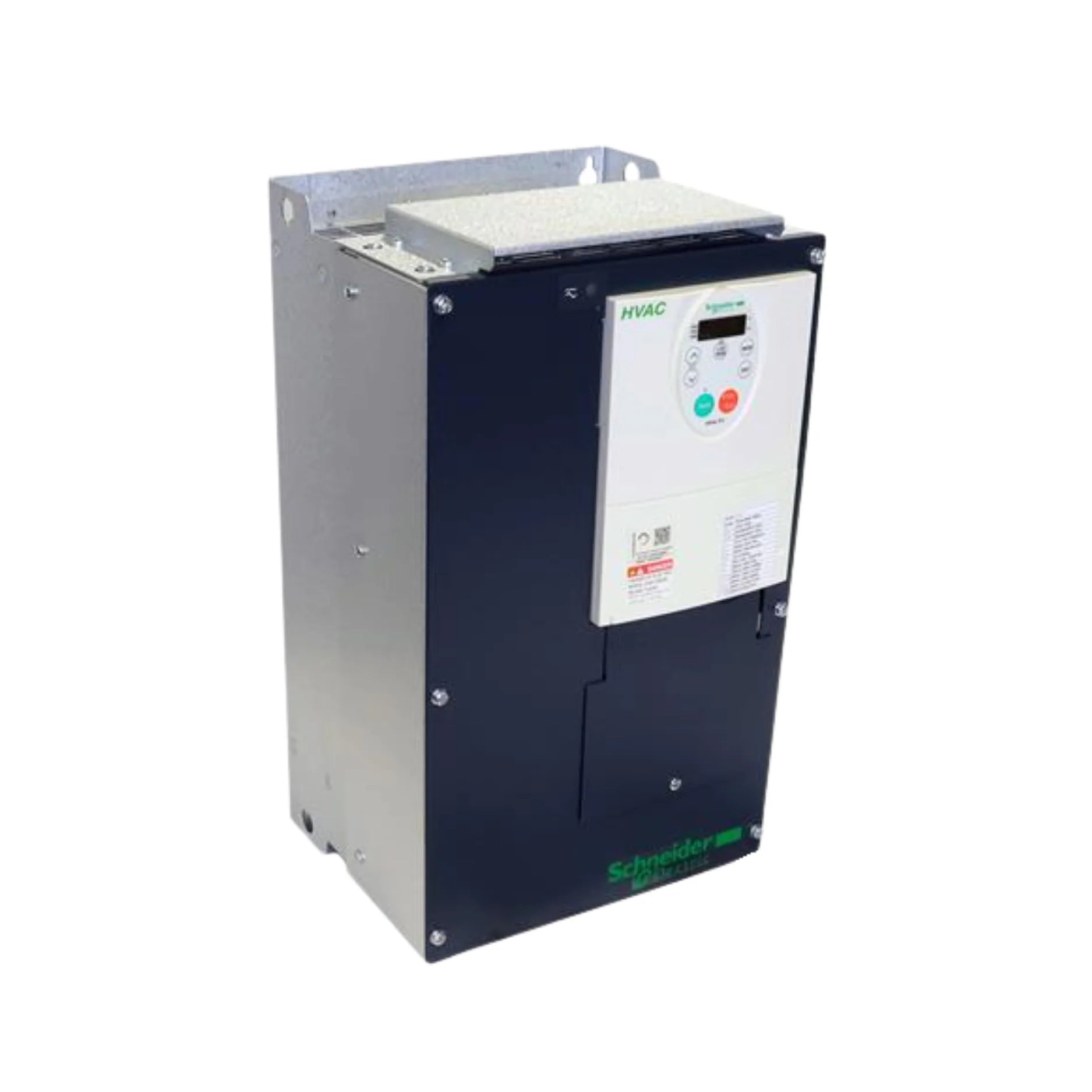

Schneider Electric ATV212HD30N4

Overview

Unleash unparalleled efficiency and precision in your building management systems with the Schneider Electric ATV212HD30N4 variable frequency drive. This robust 30 kW (40 hp) VFD, a distinguished member of the Altivar 212 series, is meticulously engineered to meet the sophisticated demands of modern HVAC and fluid handling applications. Designed for 380–480V AC 3-phase inputs, the ATV212HD30N4 integrates advanced control algorithms and energy-saving functionalities, establishing it as the premier solution for optimizing operational costs and enhancing system performance in commercial and industrial environments.

From large-scale ventilation to critical pumping stations, this drive ensures seamless integration and intelligent power management, contributing significantly to a greener and more efficient infrastructure. Its intelligent design prioritizes longevity and reliability, guaranteeing consistent performance even in the most demanding operational settings.

Key Features

• Commanding Power Output: Delivers a substantial 30 kW (40 hp) capacity, ideal for high-demand fan and pump motors.
• Broad Input Voltage Range: Compatible with 380–480V AC, 3-phase power supplies, ensuring versatile application.
• Precision Frequency Control: Offers an output frequency range from 0.5 to 200 Hz for fine-tuned motor speed adjustments.
• Optimized V/F Control: Specifically calibrated for superior performance in fan and pump applications, maximizing efficiency.
• Integrated Intelligent Functions:
  • PID Regulation: Maintain exact process variables with integrated proportional-integral-derivative control.
  • Seasonal Sleep/Wake Modes: Automate energy conservation during low-demand periods.
  • Adaptive Energy Optimization: Continuously adjusts power to motor load for peak energy savings.
• Intuitive User Interface: Equipped with an onboard keypad and a clear LCD display for straightforward configuration and monitoring.
• Extensive Communication Protocols: Supports standard building management interfaces including Modbus, BACnet, Metasys N2, and Apogee FLN for seamless network integration.
• Integrated EMC Filtering: Features a built-in Category C2 compliant EMI filter, ensuring electromagnetic compatibility and reducing interference.
• Enhanced Overload Tolerance: Withstands 120% overload for up to 60 seconds, providing exceptional resilience for transient demands.

Technical Specifications

• Model Identifier: ATV212HD30N4
• Product Line: Altivar 212 Series
• Electrical Input: 3-phase 380–480V AC
• Rated Output Current: 61 A
• Frequency Agility: 0.5 to 200 Hz output range
• Frequency Granularity: 0.1 Hz resolution for precise adjustments
• Cooling Mechanism: Forced convection for effective heat dissipation
• Environmental Protection: IP21 rated (enclosed), IP20 (open type)
• Operational Temperature: -10°C to +50°C (with derating applied above 40°C)
• Installation Flexibility: Suitable for wall or panel mounting configurations
• Physical Dimensions (H x W x D): Approximately 584 mm x 280 mm x 265 mm
• Unit Mass: Approximately 20 kg
• Global Compliance: CE, UL, CSA, RoHS certified

Applications

• Advanced HVAC Systems: Provides meticulous control over fresh air supply fans, chilling units, and air handling systems, cultivating optimal climate conditions.
• Water Management Stations: Empowers efficient flow regulation and pressure stabilization in municipal and industrial pumping infrastructure.
• Industrial Cooling Operations: Dynamically modulates fan speeds in cooling towers for superior thermal management and reduced water usage.
• Intelligent Commercial Buildings: Facilitates seamless integration with Building Management Systems (BMS) for unparalleled energy efficiency across all building services.

Why Choose This Model?

The Schneider Electric ATV212HD30N4 stands out as a superior choice for several compelling reasons:

• Intelligent Energy Conservation: Leverage sophisticated features like sleep/wake modes and an auto-energy optimizer to drastically cut down on power consumption and operational costs.
• Dedicated HVAC/Pump Functionality: Benefit from a drive specifically engineered and optimized for the unique requirements of fan and pump loads, ensuring peak performance and extended equipment life.
• Effortless System Connectivity: Its comprehensive suite of integrated communication protocols guarantees straightforward integration into existing building automation and control networks.
• Durability and Reliability: Constructed to Schneider Electric's rigorous standards, this VFD offers unwavering performance in challenging industrial environments, minimizing downtime and maintenance.
• Future-Proof Your Operations: Invest in a solution that not only meets today's energy efficiency demands but is also prepared for future smart building advancements.
