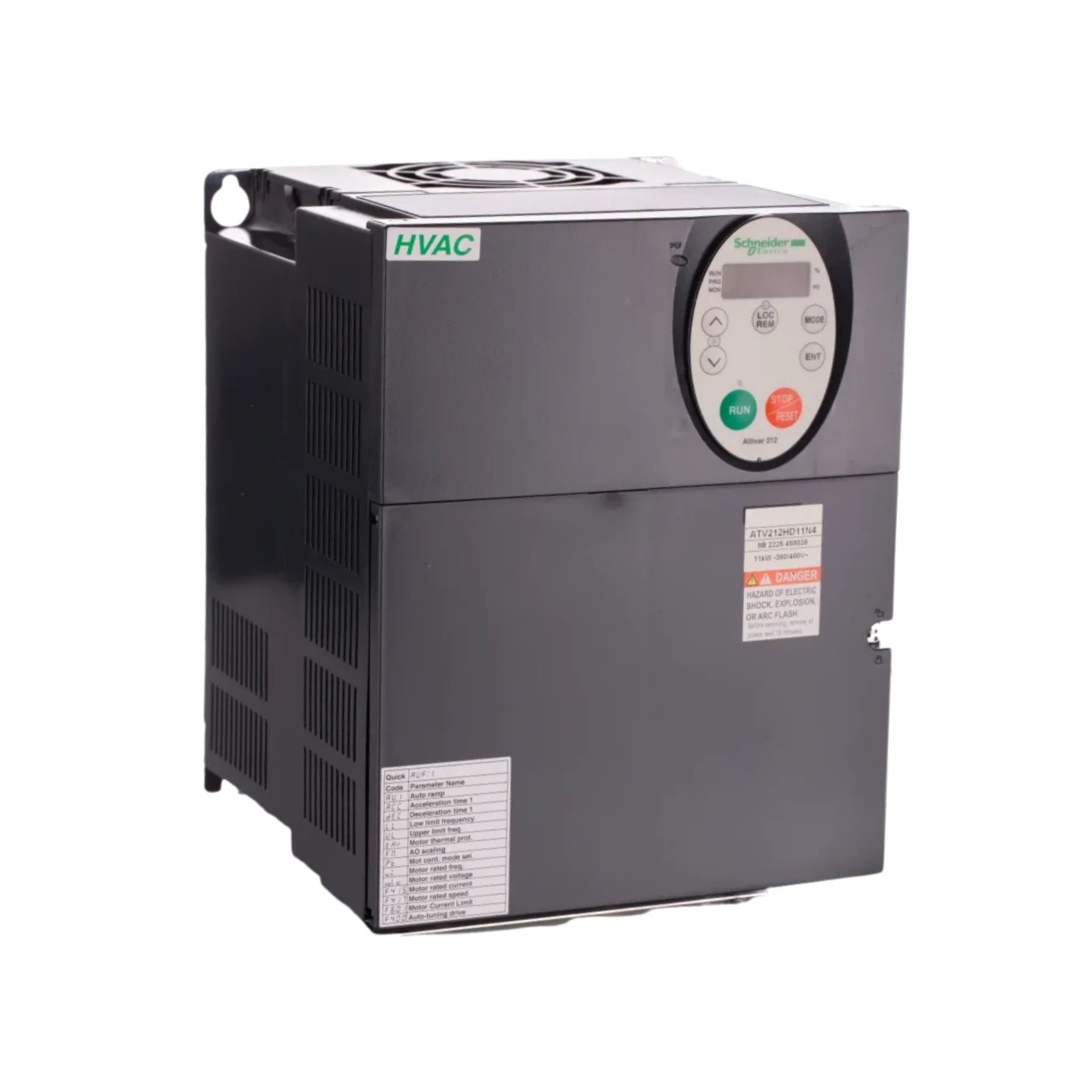

Schneider Electric ATV212HD11N4

Overview

The Schneider Electric ATV212HD11N4 heralds a new era in HVAC system control, delivering unparalleled efficiency and precision for a wide array of building applications. This robust variable speed drive (VSD), a distinguished member of the Altivar 212 series, is expertly engineered to manage motors up to 11 kW (15 HP). Operating seamlessly with 380–480V 3-phase power, it integrates advanced features such as an embedded EMC filter for reduced electromagnetic interference and native support for Modbus and BACnet communication protocols. This makes the ATV212HD11N4 an indispensable component for modern, interconnected building automation systems seeking optimal energy performance and intelligent climate management.

Key Features

• Substantial Power: Efficiently drives 11 kW (15 HP) motors.
• Versatile Voltage Input: Designed for 380–480V, 3-phase electrical systems.
• Broad Frequency Output: Provides precise control from 0.5 to 200 Hz.
• HVAC-Centric Design: Specifically tailored for the demands of heating, ventilation, and air conditioning.
• Advanced Control Algorithms: Features V/f control and Automatic Energy Optimization (AEO) for maximised efficiency.
• Integrated EMC Solution: Built-in C1/C2 class EMC filter minimizes electrical noise.
• Seamless Communication: Comes standard with embedded Modbus and BACnet MS/TP for effortless BMS integration.
• Expansion Ready: Optional support for LonWorks, Metasys N2, and APOGEE FLN protocols.
• User-Friendly Interface: Facilitates configuration via an optional remote keypad.

Technical Specifications

• Model Identifier: ATV212HD11N4
• Product Series: Altivar 212
• Rated Output Current: 24 A
• Peak Transient Current: Capable of 36 A for durations up to 60 seconds.
• Default Switching Frequency: 4 kHz
• Environmental Protection: Standard IP21 rating, with options for IP55 enclosures.
• Operational Temperature Range: -10°C to +50°C without requiring derating.
• Altitude Performance: Operates at full capacity up to 1000 meters above sea level.
• Installation Versatility: Suitable for either wall or panel mounting.
• Physical Dimensions (W x H x D): Approximately 220 mm x 350 mm x 232 mm.
• Mass: Weighs approximately 7.5 kg.

Applications

• Advanced Control for HVAC Fans and Blowers
• Optimized Regulation for Water Pumps and Circulators
• Precise Management of Air Handling Units (AHUs)
• Integral Component for Building Management Systems (BMS)

Why Choose This Model?

The Schneider Electric ATV212HD11N4 stands out as a premier choice for commercial and industrial HVAC applications due to its comprehensive feature set and dedication to performance. This drive is not merely a component; it's an investment in a smarter, more sustainable building environment. Its focus on energy efficiency helps reduce operational costs, while its robust design ensures long-term reliability. With embedded communication protocols like BACnet, integrating this VSD into existing or new building management systems is straightforward, providing granular control and real-time data for proactive maintenance and system optimization. Its ability to finely tune motor speeds across varied applications translates into significant energy savings and extended equipment lifespan, making it an intelligent choice for discerning facility managers and engineers.
