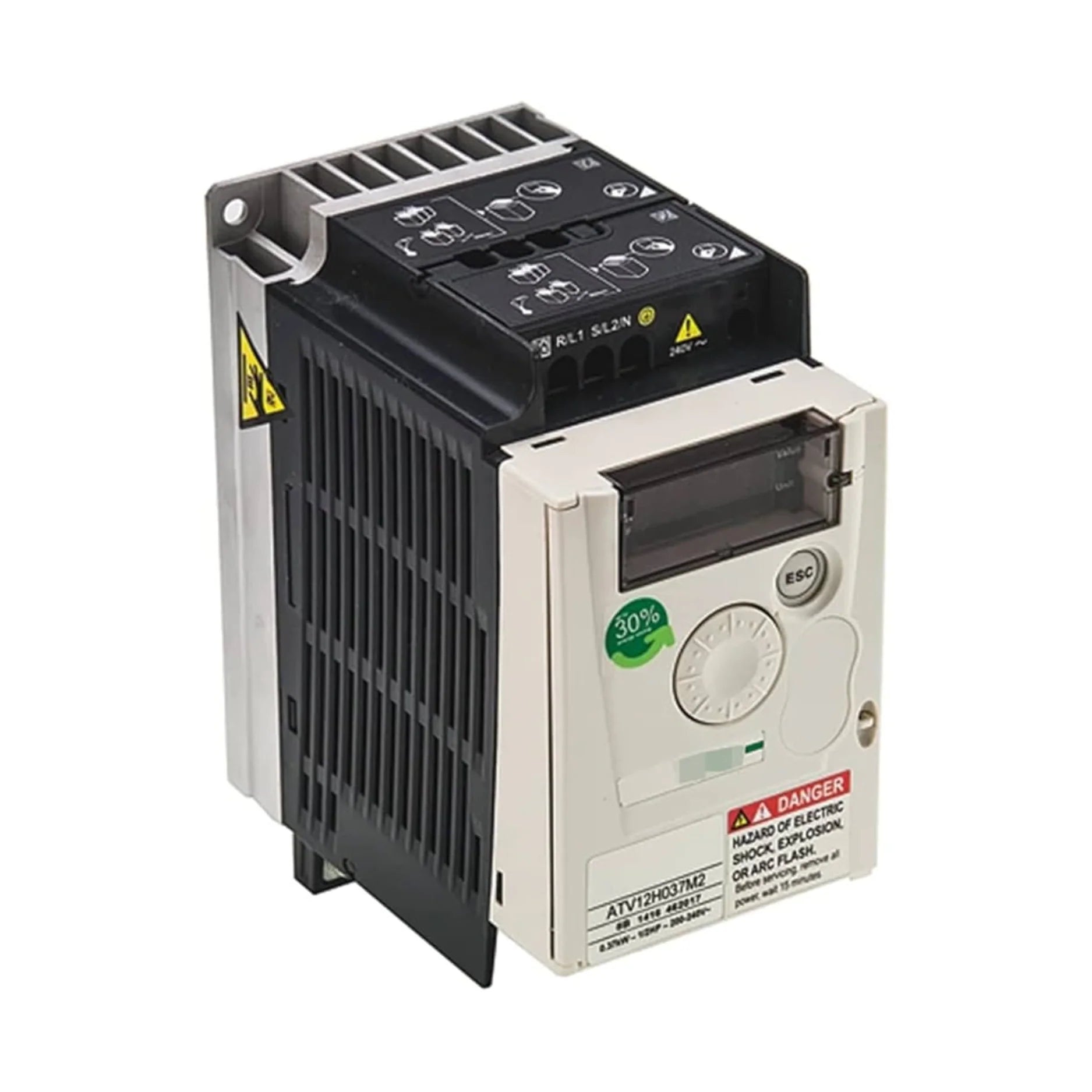

Schneider Electric ATV12H037M2

Overview

Unleash precise, efficient control over your small motor applications with the Schneider Electric ATV12H037M2 Variable Speed Drive. Part of the renowned Altivar 12 series, this VFD is expertly engineered for operations requiring reliable performance without complexity. With its compact form factor and robust feature set, the ATV12H037M2 provides a cost-effective solution for optimizing energy consumption and enhancing the operational longevity of your machinery. Designed for a single-phase 200–240V input and delivering a consistent 3-phase output, this drive is a cornerstone for light-duty industrial and commercial automation.

Key Features

• Precision Power Delivery: Rated at 0.37 kW (0.5 HP) for versatile small-scale motor control.
• Flexible Input/Output: Accommodates 200–240V single-phase input to provide 3-phase, 200–240V output.
• Dynamic Frequency Range: Offers an output frequency adjusting from 0.5 to an extensive 400 Hz.
• Advanced Control Modalities: Supports both V/f (Voltage/Frequency) and sophisticated Sensorless Flux Vector Control (SFVC) for optimal motor performance.
• Integrated Electromagnetic Compatibility: Equipped with a built-in EMC filter to minimize electrical interference and ensure smooth operation.
• Enhanced Safety Protocols: Features Safe Torque Off (STO) functionality, safeguarding personnel and equipment.
• User-Friendly Interface: Includes an integrated keypad for direct control, with an option for a remote keypad for added convenience.

Technical Specifications

• Model Number: ATV12H037M2
• Product Series: Altivar 12
• Output Current (Nominal): 2.3 A
• Adjustable Switching Frequency: Configurable from 2 kHz up to 16 kHz
• Ingress Protection: IP20 rated for protection against solid objects.
• Operational Temperature Range: Functions efficiently from -10°C to +40°C without derating.
• Mounting Versatility: Designed for either secure DIN rail or panel mounting.
• Compact Footprint (W x H x D): 72 mm x 143 mm x 148 mm
• Unit Weight: Approximately 1.1 kg

Applications

The Schneider Electric ATV12H037M2 is engineered to excel in a variety of environments where dependable and precise motor control is paramount. Its adaptability makes it an invaluable asset in:

• Smaller-scale fans and ventilation systems requiring nuanced speed adjustments.
• Efficient control of positive displacement and centrifugal pumps.
• Light-duty conveyor systems ensuring smooth and regulated material transport.
• Optimizing performance in HVAC and general ventilation setups.
• Integration into OEM equipment and other compact machinery designs.

Why Choose This Model?

Opting for the Schneider Electric ATV12H037M2 means investing in a solution that brings tangible benefits to your operations. This model stands out for its exceptional balance of performance, user-friendliness, and cost-effectiveness. Its highly compact design facilitates easy installation even in space-constrained settings, while its affordability makes advanced motor control accessible for light load applications. The inclusion of an integrated safety function (STO) and EMC filtering directly addresses critical operational concerns, offering peace of mind. For businesses seeking a reliable, straightforward, and efficient VFD for basic industrial and commercial automation tasks, the ATV12H037M2 represents an intelligent choice that delivers consistent results.
