Schneider Electric ATV630D22N4

Overview

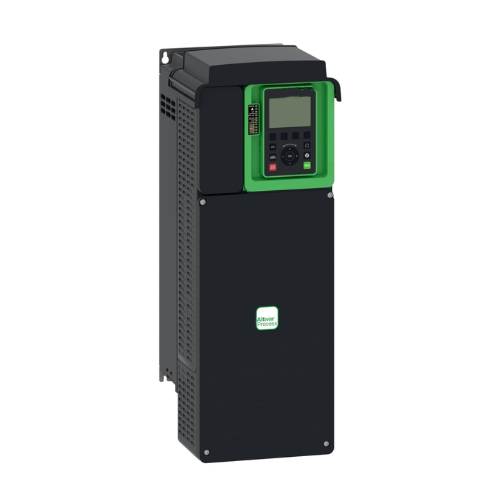

Experience unparalleled precision and efficiency with the Schneider Electric ATV630D22N4, a cutting-edge variable speed drive engineered for the most demanding industrial environments. Part of the acclaimed Altivar Process ATV630 series, this robust VSD is meticulously designed to excel in applications where energy optimization and sophisticated motor management are paramount. Delivering a substantial 22 kW (30 HP) power output across a versatile 380 to 480 V operating range, the ATV630D22N4 integrates state-of-the-art process monitoring, proactive predictive maintenance capabilities, and native communication protocols, ensuring seamless integration into modern automation architectures. Elevate your operational standards with a drive built for intelligent control and sustainable performance.

Key Features

• Powerful Output: Boasts a 22 kW (30 HP) rating, perfectly suited for heavy industrial loads and continuous operation.
• Broad Voltage Adaptability: Compatible with 3-phase systems operating between 380V and 480V, offering flexibility for various electrical setups.
• Process-Centric Optimization: Tailored specifically for critical process applications including advanced pump systems, ventilation, and HVAC.
• Intrinsic Energy Conservation: Features comprehensive power monitoring and innovative energy-saving functions to reduce operational costs.
• Dynamic Motor Control Options:
• Voltage/Frequency Ratio (V/F) for fundamental control.
• Sensorless Flux Vector Control (SFVC) for enhanced performance without an encoder.
• Flux Vector Control (FVC) with Encoder for ultimate precision and torque control.
• Versatile Output Frequency: Provides an adjustable output frequency from 0.1 Hz to 500 Hz, catering to diverse application speed requirements.
• Integrated Communication Suite: Equipped with Modbus RTU, Modbus TCP, Ethernet/IP, and CANopen for effortless network integration and remote management.
• Advanced Safety Mechanisms:
• Safe Torque Off (STO) for critical safety functions.
• Comprehensive protection against overvoltage, undervoltage, overcurrent, and short-circuits.
• Thermal monitoring and overload protection for motor and drive longevity.
• Intuitive User Interaction: A large graphic display, embedded Web Server, and various remote monitoring options facilitate ease of use and system oversight.

Technical Specifications

• Model Designation: ATV630D22N4
• Product Line: Altivar Process ATV630 Series
• Motor Capability: 22 kW (30 HP), designed for 3-phase motors.
• Input Voltage Range: 380–480 V AC (-15% to +10% tolerance).
• Rated Output Current: 45 A.
• Peak Transient Current: Capable of 67.5 A for durations up to 60 seconds.
• Adjustable Speed Range: 1 Hz to 500 Hz.
• Enclosure Protection: IP20 rated.
• Operational Temperature: -15°C to +50°C without derating the performance.
• Humidity Tolerance: 5–95% relative humidity, non-condensing.
• Altitude Limit: Optimal operation up to 1000 m without needing derating.
• Physical Dimensions (W x H x D): 235 mm x 500 mm x 237 mm.
• Product Mass: 19 kg.

Applications

• Water Management Systems: Ideally suited for sophisticated control in wastewater treatment, irrigation infrastructure, and diverse industrial pumping operations.
• Climate Control & HVAC: Provides precise management for air handling units and ventilation systems, enhancing air quality and energy efficiency.
• Industrial Airflow Solutions: Ensures exact speed regulation for large industrial fans and blowers, optimizing performance and reducing power consumption.
• Automated Logistics: Improves the functionality and efficiency of conveyor systems and other automated material handling equipment.

Why Choose This Model?

The Schneider Electric ATV630D22N4 stands out as a superior choice for several compelling reasons:

• Intelligent Energy Stewardship: Benefit from real-time power consumption insights and advanced features that actively reduce energy spend.
• Seamless Network Integration: Its multi-protocol communication support simplifies integration into existing industrial networks, facilitating data exchange and remote control.
• Unwavering Reliability & Protection: Built-in safety mechanisms and thermal management ensure continuous, safe, and dependable operation, safeguarding your valuable assets.
• Robust Industrial Design: Engineered for resilience and versatility, this drive is perfectly equipped to handle the rigors of heavy-duty industrial applications, ensuring long-term performance.

Order Now

Secure your Schneider Electric ATV630D22N4 today to transform your industrial processes. Benefit from our efficient shipping and reliable worldwide delivery services. Browse our extensive selection of Schneider Electric Altivar Process 630 VFDs or explore our full range of Schneider Electric Variable Frequency Drives to find the perfect solution for your needs.
