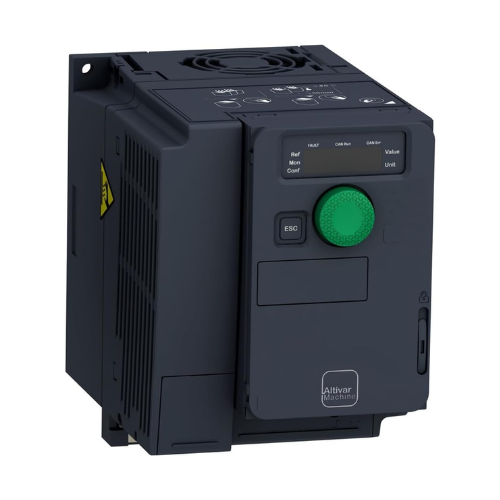

Schneider Electric ATV320U30N4C

Overview

Engineered for cutting-edge industrial operations, the Schneider Electric ATV320U30N4C represents a pinnacle in variable speed drive technology. Part of the lauded Altivar Machine ATV320 series, this compact powerhouse delivers exceptional control over both 3-phase synchronous and asynchronous motors. Boasting a robust 3 kW (4 HP) power rating and accommodating a versatile voltage range of 380 to 500 V, it's meticulously crafted for the rigorous demands of complex machinery. Its integrated Class C2 EMC filter guarantees minimized electromagnetic interference, ensuring seamless and reliable performance within sensitive environments. Experience unparalleled motor management and operational efficiency with this sophisticated drive.

Key Features

• Robust Power Delivery: Features a substantial 3 kW (4 HP) rating, providing ample power for demanding industrial processes and heavy-duty applications.
• Broad Voltage Adaptability: Perfectly compatible with 3-phase systems, operating efficiently across a voltage spectrum of 380–500V to suit diverse electrical infrastructures.
• Integrated EMC Compliance: Incorporates a Class C2 EMC filter directly, streamlining installation and significantly mitigating electromagnetic emissions for cleaner operation.
• Versatile Motor Control Mastery: Offers a comprehensive suite of control methodologies, including multi-point Voltage/Frequency Ratio, Sensorless Flux Vector Control (SFVC), Flux Vector Control (FVC) with Sensor, and an intelligent Energy Adaptation (ENA) System for handling unbalanced loads with grace.
• Extensive Frequency Range: Delivers a wide output frequency adjustable from 0.1 Hz to an impressive 599 Hz, catering to a vast array of machine speed requirements.
• Adjustable Switching Frequency: Features a nominal switching frequency of 4 kHz, with the flexibility to adjust it between 2 kHz and 16 kHz for fine-tuned performance.
• Comprehensive Protection Suite: Equipped with an array of protective circuits safeguarding against overcurrent, overheating, damaging overvoltage, undervoltage fluctuations, and critical short-circuit events, ensuring prolonged operational integrity.
• Intuitive User Interface: Designed with multiple analog and digital inputs/outputs, facilitating flexible integration and comprehensive control within existing automation systems.

Technical Specifications

• Model Identifier: ATV320U30N4C
• Product Family: Altivar Machine ATV320 Series
• Motor Output Capability: 3 kW (4 HP), specifically for 3-phase motors
• Incoming Voltage Range: 380–500 V, with a tolerance of -15% to +10%
• Rated Output Current: 7.1 A, optimized for a 4 kHz switching frequency
• Peak Transient Current: Capable of 10.7 A for durations up to 60 seconds, ideal for momentary overloads.
• Speed Control Range:
  • Asynchronous Motor: 1–100 (in open-loop mode), 1–1000 (in closed-loop mode)
  • Synchronous Motor: 1–50 (in open-loop mode)
• Environmental Protection Rating: IP20
• Operational Temperature Span: -10°C to +50°C, maintaining full performance without derating.
• Humidity Tolerance: 5–95% (without condensation)
• Altitude Limit: Stable operation up to 1000 m without derating.
• Physical Footprint (W x H x D): 72 mm x 143 mm x 158 mm
• Unit Mass: 1.22 kg

Applications

• Precision Machinery Command: Delivers pinpoint motor control essential for the most demanding automated manufacturing lines and robotics.
• Efficient Material Handling Systems: Optimizes the performance and energy consumption of conveyor belts, hoists, cranes, and other critical material transport equipment.
• Textile and Packaging Equipment: Provides nuanced speed and torque regulation, enhancing production quality and throughput in sensitive packaging and textile machinery.
• Pump and Fan Optimization: Ensures highly energy-efficient operation for HVAC systems and diverse industrial cooling fans and pumps, reducing operational costs.

Why Choose This Model?

The Schneider Electric ATV320U30N4C stands out as an indispensable component for modern industrial automation. Its ability to provide advanced control for both synchronous and asynchronous motors means unparalleled versatility across a wide spectrum of applications. The integrated Class C2 EMC filter isn't just a feature; it's a commitment to operational integrity, ensuring your systems remain free from disruptive electromagnetic interference. Beyond control, a comprehensive suite of protection features actively guards against potential faults, safeguarding your valuable equipment and minimizing downtime. This model's compact design, coupled with its robust industrial reliability, makes it a smart investment for any facility looking to enhance performance and ensure long-term stability. Opt for the ATV320U30N4C to empower your machinery with intelligence and resilience.

Order Now

Secure your Schneider Electric ATV320U30N4C today and elevate your machine control capabilities. Benefit from swift shipping and dependable worldwide delivery options. Explore our extensive range of Schneider Electric Altivar 320 VFDs or return to the full selection of Schneider Electric Variable Frequency Drives to find the perfect solution for your industrial needs.
