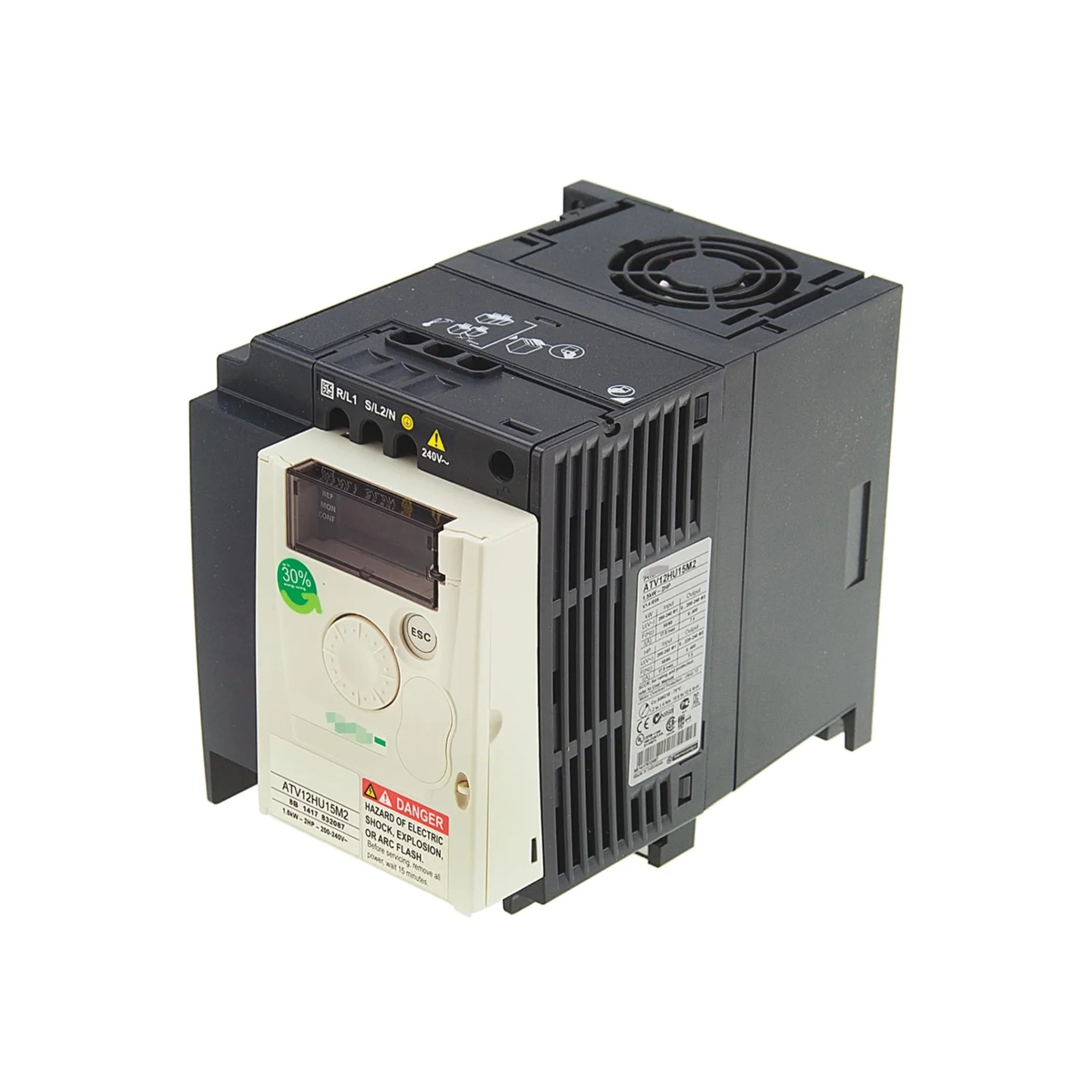

Schneider Electric ATV12HU15M2

Overview

Experience seamless and precise motor control with the Schneider Electric ATV12HU15M2, a robust 1.5 kW (2 HP) variable speed drive from the acclaimed Altivar 12 series. Engineered for optimal performance in a variety of light industrial and commercial settings, this drive solution provides exceptional regulation for small motors. Featuring a single-phase 200–240V input matched with a three-phase output, the ATV12HU15M2 delivers powerful yet compact functionality, ensuring straightforward installation and dependable operation across applications such as ventilation systems, conveyor belts, and diverse OEM equipment. Its smart design integrates essential features for efficient and safe motor management, making it an indispensable asset for modern industrial needs.

Key Features

• Output Power: Generous 1.5 kW (2 HP) capacity for versatile motor applications.
• Voltage Input: Capable 200–240V single-phase power supply.
• Voltage Output: Reliable 3-phase, 200–240V delivery.
• Frequency Range: Expansive 0.5 to 400 Hz output frequency tailored for dynamic control.
• Advanced Control Modalities: Includes both V/f (Voltage/Frequency) and sophisticated Sensorless Flux Vector Control (SFVC) for enhanced motor performance.
• Integrated Electromagnetic Compatibility: Built-in EMC filter minimizes electromagnetic interference, ensuring smooth operation.
• Critical Safety Mechanism: Features Safe Torque Off (STO) for immediate and secure motor shutdown.
• Intuitive Interface: Equipped with an integrated keypad for direct control, with an option for a remote keypad for flexible accessibility.

Technical Specifications

• Model Identifier: ATV12HU15M2
• Product Range: Altivar 12 Series
• Rated Current Output: 7.5 A nominal output current.
• Switching Frequency Adjustability: User-configurable from 2 to 16 kHz.
• Environmental Protection: IP20 rating ensures protection against solid objects.
• Operational Temperature Span: Functional from -10°C to +40°C without requiring derating.
• Mounting Versatility: Adaptable for both DIN rail and panel installations.
• Physical Footprint (W x H x D): Compact dimensions of 105 mm x 143 mm x 148 mm.
• Unit Mass: Weighs approximately 1.5 kg, facilitating easy handling and installation.

Applications

The Schneider Electric ATV12HU15M2 is engineered for adaptability across numerous light industrial scenarios, offering crucial motor control. Its robust design and precise functionality make it an ideal choice for:

• Ventilation and Pumping Systems: Optimizes the efficiency and control of fans and small pumps.
• Material Handling: Perfect for light-duty conveyor systems, ensuring smooth and reliable operation.
• Environmental Control: Enhances the performance and energy efficiency of HVAC systems.
• Original Equipment Manufacturing (OEM):Integrates seamlessly into various OEM machinery, adding value and precision.
• Small Machine Control: Provides reliable speed and torque control for a wide array of compact machinery.

Why Choose This Model?

Selecting the Schneider Electric ATV12HU15M2 is an investment in efficiency, reliability, and advanced control for your motor-driven applications. This model distinguishes itself through:

• Optimized for Small Motors: Delivers high-performance control in a remarkably compact and dependable package.
• Hassle-Free Setup: Designed for straightforward installation and intuitive operation, minimizing commissioning time.
• Integrated Safety and Compliance: Boasts a built-in EMC filter for electrical harmony and STO safety functionality for enhanced operational security.
• Targeted Industrial Suitability: Perfectly suited for a broad spectrum of light-duty industrial tasks, enhancing productivity and motor longevity.
• Unmatched Reliability: Built with Schneider Electric's renowned quality, ensuring consistent and long-lasting performance.

Order Now

Elevate your motor control capabilities today with the Schneider Electric ATV12HU15M2. Benefit from our streamlined ordering process, with fast shipping and comprehensive worldwide delivery options available to meet your global operational needs. Explore the comprehensive range of solutions within the Schneider Electric Altivar 12 family to discover more advanced motor control devices. For an even wider selection, browse our full inventory of Schneider Electric Variable Frequency Drives, designed to cater to every industrial requirement and application.
