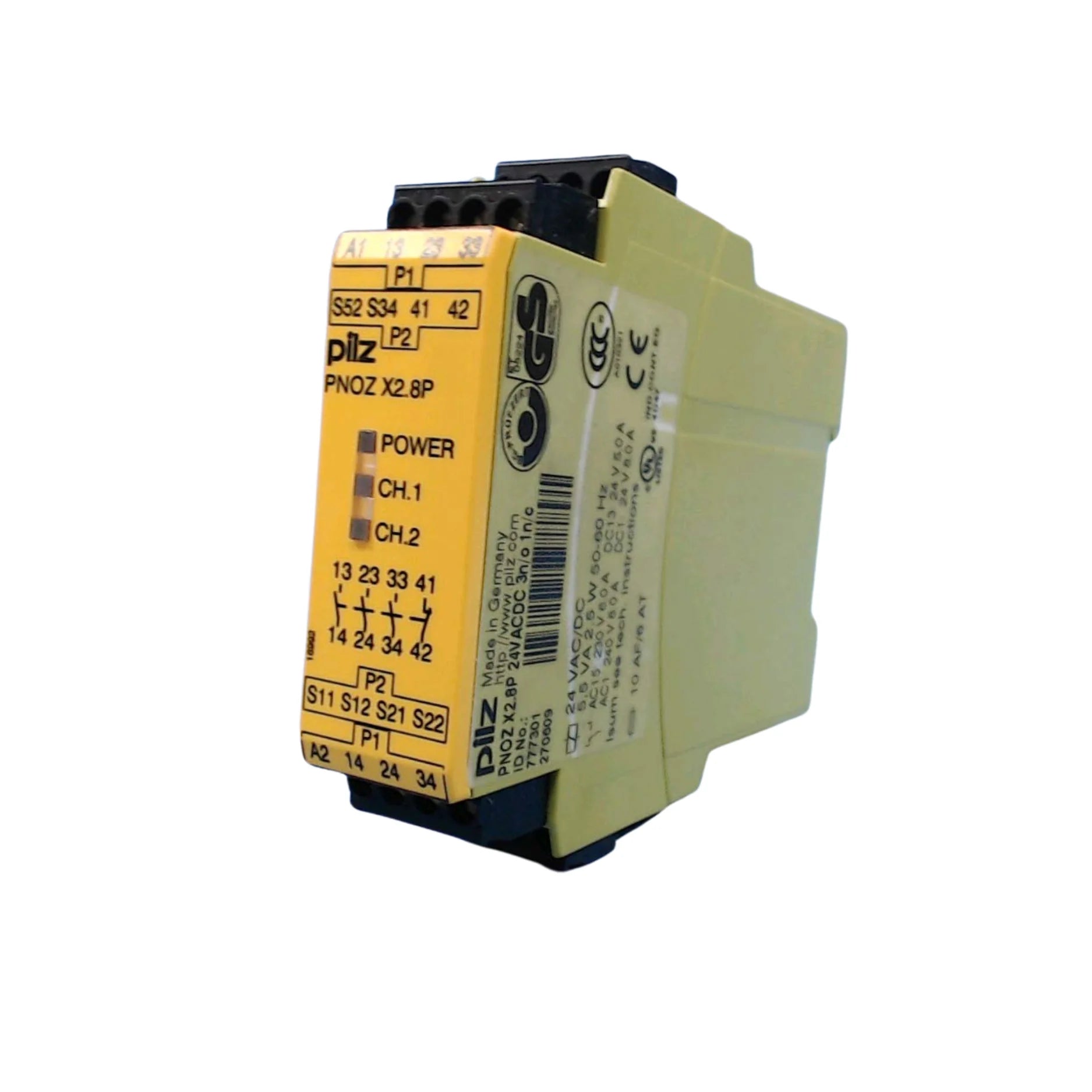

Pilz 777301

Overview

The Pilz 777301 PNOZ X2.8P safety relay stands as a cornerstone in industrial safety, providing unwavering protection for personnel and machinery. Engineered for exceptional reliability and rapid response, this sophisticated relay is meticulously designed to monitor critical safety functions such as emergency stop (E-STOP) circuits, safety gates, and light barriers. In fast-paced industrial environments, the PNOZ X2.8P ensures immediate and precise fault detection, guaranteeing optimal operational safety even in the most demanding conditions. Its robust construction, coupled with intuitive LED diagnostics, simplifies troubleshooting and maintenance, making it an indispensable component for any comprehensive industrial safety system. This relay effectively integrates into diverse automation architectures, offering peace of mind through its proven performance and adherence to stringent safety standards.

Key Features

• Emergency Stop & Safety Gate Monitoring: Provides immediate and safe interruption of circuits when activated, crucial for operator protection.
• 3 Normally Open (N/O) Safety Contacts: Delivers reliable and redundant safety control outputs to ensure machinery halts safely.
• 1 Normally Closed (N/C) Auxiliary Contact: Offers status monitoring capabilities for seamless integration into control systems.
• Single & Dual-Channel Operation: Accommodates various wiring configurations, providing flexibility for different safety circuit designs.
• Automatic or Monitored Start Options: Allows for configurable operational modes to suit specific application requirements and safety protocols.
• LED Status Indicators: Facilitates real-time, at-a-glance fault diagnostics, significantly reducing downtime and simplifying maintenance.
• DIN Rail Mounting: Ensures quick, secure, and straightforward installation within control cabinets, optimizing space and integration.

Technical Specifications

• Model: 777301
• Series: PNOZ X2.8P
• Supply Voltage: 24V AC/DC, enabling versatile power integration.
• Safety Outputs: 3 N/O Contacts, providing multiple points of safety control.
• Auxiliary Output: 1 N/C Contact, for auxiliary signaling or feedback.
• Input Configuration: Single or Dual-Channel, adaptable to various safety input types.
• Power Consumption: Approximately 2.5W, ensuring energy efficiency.
• Housing Material: Industrial-grade plastic, designed for durability in harsh environments.
• Protection Rating: Housing: IP40; Terminals: IP20, offering protection against solid objects and limited water ingress.
• Operating Temperature: -10°C to +55°C (14°F to 131°F), ensuring reliable operation in a wide range of temperatures.
• Mounting Type: DIN Rail, for easy and standardized installation.
• Dimensions: 45 mm width, compact design for space-saving integration.
• Approvals: CE, cULus Listed, TÜV, CCC, confirming compliance with international safety and quality standards.

Applications

• Industrial Automation Safety: Essential for implementing safe machine shutdowns and preventing unexpected starts, safeguarding operators and equipment.
• Emergency Stop Circuit Monitoring: Provides immediate and reliable safety control in the event of an emergency, enhancing workplace safety.
• Safety Gate & Access Control: Crucial for monitoring the status of safety gates, ensuring machinery stops when guards are opened, and preventing unauthorized access.
• Machine Safety & Hazard Prevention: Integral in preventing accidents by monitoring critical safety functions and ensuring safe operating conditions.
• Manufacturing & Assembly Safety Systems: Supports adherence to strict safety regulations and standards in production environments, contributing to a safer work environment.

Why Choose This Model?

The Pilz 777301 PNOZ X2.8P is more than just a safety relay; it's an investment in unparalleled industrial safety and operational efficiency. This model is rigorously certified and proven for a wide array of industrial safety applications, guaranteeing robust performance and compliance with global standards. Its adaptability to multiple wiring configurations allows for seamless integration into existing or new automation systems, offering design flexibility that saves time and resources during deployment. Beyond its technical prowess, the PNOZ X2.8P stands out for its user-friendly installation and integration process, minimizing setup complexities. Its durable, compact, and energy-efficient design ensures long-term reliability and cost-effectiveness, making it a smart choice for companies prioritizing both safety and operational continuity. Opting for the PNOZ X2.8P means choosing a solution that delivers peace of mind through superior protection and dependable performance.

Order Now

Secure your industrial operations with the Pilz 777301 PNOZ X2.8P Safety Relay today. Benefit from fast shipping and global delivery options, ensuring this essential safety component reaches your facility promptly.
