Pilz 774502

Overview

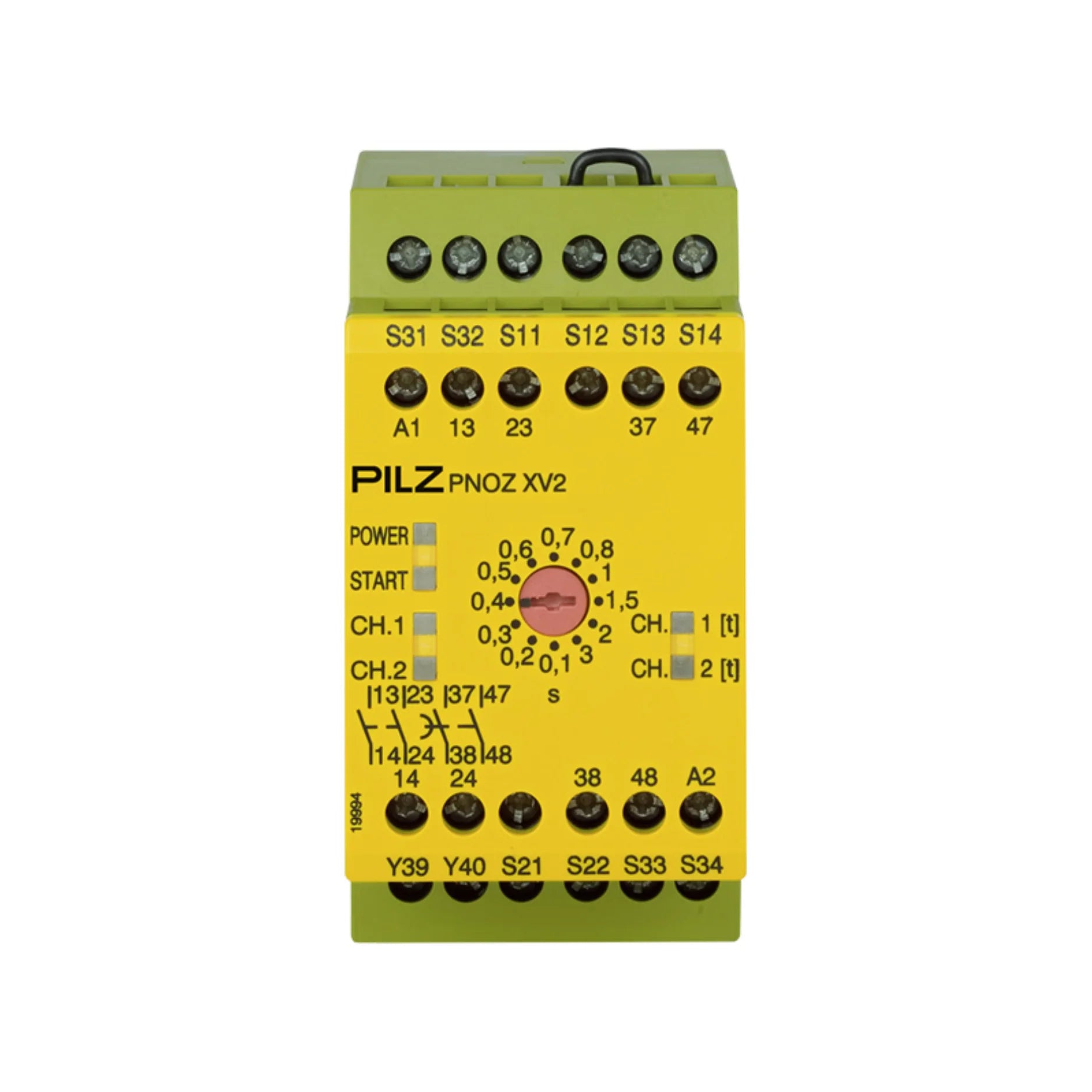

The Pilz 774502 PNOZ XV2 Safety Relay is a high-performance safety solution meticulously engineered for robust industrial automation environments. This advanced safety relay is specifically designed to meticulously monitor safety-critical functions such as emergency stop (E-STOP) systems, protective safety gates, and precise limit switches. Its core functionality revolves around providing both instantaneous and intricately timed delayed safety contacts, offering unparalleled flexibility in designing and implementing safety circuits that demand precise, sequential responses. With the Pilz 774502, engineers gain the ability to establish sophisticated safety protocols that adapt to dynamic operational needs, ensuring paramount safety for personnel and equipment.

Key Features

• 2 Instantaneous Normally Open (N/O) Safety Contacts: Engineered for immediate and decisive disconnection of safety circuits, these contacts act without delay upon the activation of a safety function, providing critical protection in urgent scenarios.
• 2 Delayed Normally Open (N/O) Safety Contacts: These contacts facilitate the implementation of controlled and sequential shutdown procedures. They allow for an adjustable time delay before deactivating, enabling machinery to reach a safe state systematically.
• Adjustable Time Delay: Offering a versatile range from 0.1 to 3 seconds, the configurable time delay can be finely tuned to meet the specific demands of diverse industrial applications, ensuring optimal safety and operational efficiency.
• Single and Dual-Channel Operation: The PNOZ XV2 supports a multitude of wiring configurations, accommodating both single and dual-channel safety inputs. This includes robust detection capabilities for short circuits across contacts, enhancing system integrity.
• LED Status Indicators: Integrated LED indicators provide real-time, clear visual feedback on the operational status of the relay and critical diagnostics, simplifying troubleshooting and maintenance.
• DIN Rail Mounting: Designed for seamless integration, its DIN rail mounting capability ensures effortless installation into existing control panels, minimizing downtime and optimizing space utilization.

Technical Specifications

• Model: 774502
• Series: PNOZ XV2
• Supply Voltage: 24V DC
• Instantaneous Safety Outputs: 2 N/O contacts
• Delayed Safety Outputs: 2 N/O contacts
• Time Delay Range: 0.1 to 3 seconds
• Power Consumption: Approximately 4.5W
• Dimensions (W x H x D): 45 mm x 87 mm x 121 mm
• Operating Temperature: -10°C to +55°C
• Mounting: DIN rail
• Approvals: CE, TÜV, cULus Listed, CCC

Applications

• Emergency Stop Monitoring: Provides both immediate and precisely timed delayed responses to E-STOP activations, ensuring comprehensive safety protocols are met.
• Safety Gate Monitoring: Manages and controls access to hazardous operational zones with advanced timed safety measures, preventing unauthorized entry during critical operations.
• Limit Switch Monitoring: Accurately controls and defines machine movements and positions, incorporating essential safety delays for enhanced operational security.
• Timed Safety Functions: Implements sophisticated, controlled shutdown sequences within automated manufacturing processes, crucial for preventing damage and ensuring personnel safety.

Why Choose This Model?

Choosing the Pilz 774502 PNOZ XV2 safety relay means investing in a class-leading safety solution that offers a distinct competitive advantage. This model stands out due to its exceptional fusion of versatility and dependability, making it an indispensable component for any rigorous industrial safety system. Its capacity to handle both instantaneous and time-delayed safety functions provides engineers with an unparalleled level of control and adaptability, allowing for the precise calibration of safety responses to align with specific operational demands. Furthermore, the Pilz 774502 adheres to stringent international safety standards, guaranteeing not only compliance but also superior performance and unwavering reliability in critical applications. Its compact form factor, coupled with straightforward DIN rail mounting, ensures that integration into existing control panels is both rapid and hassle-free, thereby minimizing installation time and optimizing system uptime. The ability to finely adjust the time delay functionality empowers users to customize safety protocols with exactitude, catering to unique application requirements and enhancing overall operational safety. Opt for the Pilz 774502 PNOZ XV2 for a robust, flexible, and fully compliant safety solution that elevates the protection of your industrial processes.

Order Now

Elevate the safety, reliability, and efficiency of your industrial operations by integrating the Pilz 774502 PNOZ XV2 safety relay into your systems today. Experience the peace of mind that comes with employing a state-of-the-art safety solution designed for peak performance. Benefit from our fast shipping and comprehensive worldwide delivery options to secure this essential safety component without delay.
