Pilz 774318

Overview

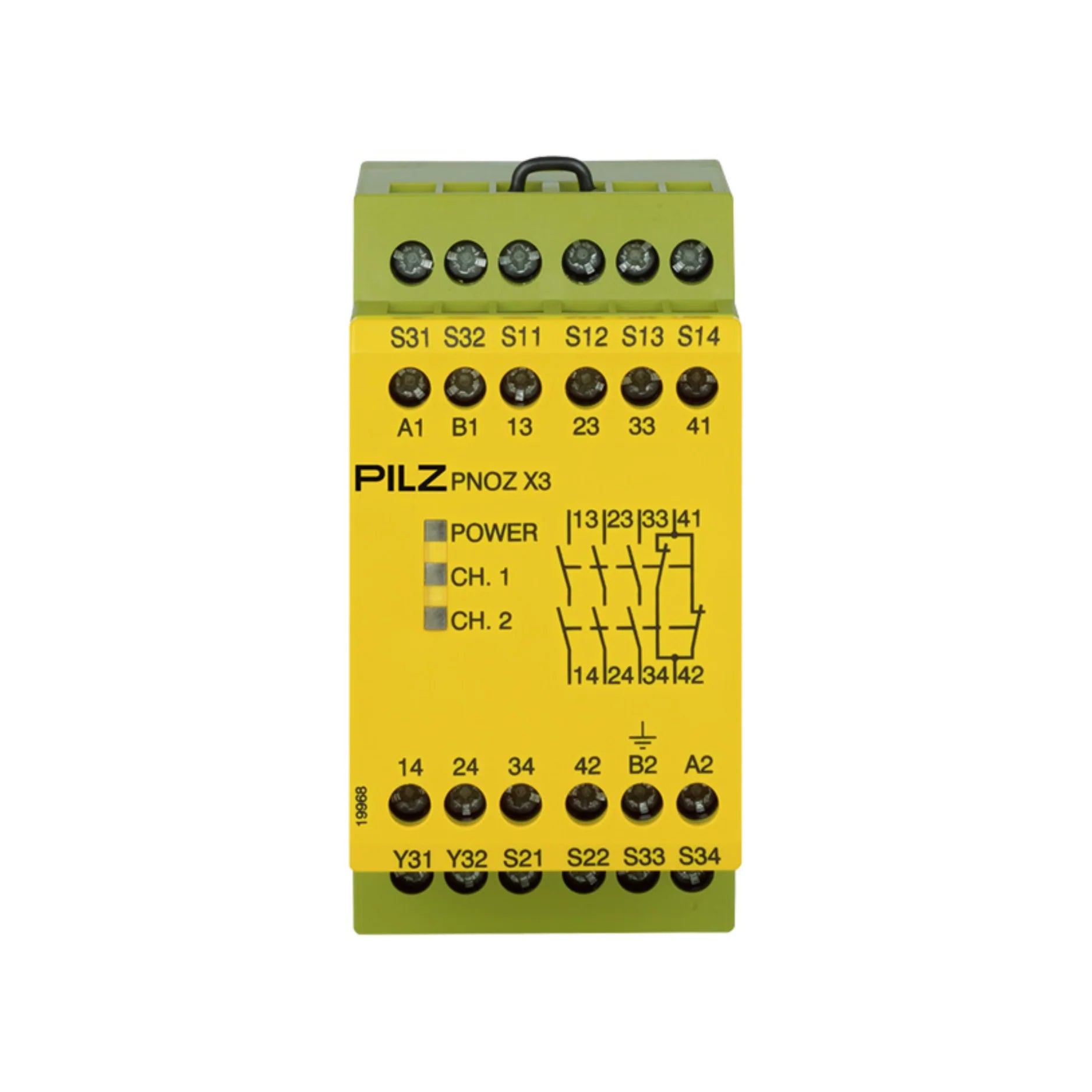

The Pilz 774318 PNOZ X3 Safety Relay is an indispensable component for robust industrial safety systems. Engineered for high-performance and unwavering reliability, this safety relay is expertly designed to vigilantly monitor critical safety functions such as emergency stop buttons, safety gates, and light barriers. In high-risk industrial environments, the PNOZ X3 guarantees optimal operational safety, safeguarding personnel and equipment through rapid response times and meticulous fault detection. Its integration into your automation processes ensures compliance with stringent safety regulations while minimizing downtime associated with potential hazards. The intuitive design, complemented by integrated LED diagnostics, streamlines installation and ongoing maintenance.

Key Features

• Emergency Stop & Safety Gate Monitoring: Provides immediate and secure circuit interruption in critical situations.
• 3 Normally Open (N/O) Safety Contacts: Delivers essential safety control for vital machine functions.
• 1 Normally Closed (N/C) Auxiliary Contact: Offers valuable status monitoring capabilities for enhanced system awareness.
• 1 Semiconductor Output: Expands signaling options for integrated system communication.
• Single & Dual-Channel Operation: Adapts to various wiring configurations, offering versatile integration.
• Automatic or Monitored Start Options: Provides flexible operational modes to suit specific application requirements.
• LED Status Indicators: Enables real-time, clear fault diagnostics for quick troubleshooting and minimized downtime.
• DIN Rail Mounting: Facilitates effortless installation and seamless integration into existing control cabinets.

Technical Specifications

• Model: 774318
• Series: PNOZ X3
• Supply Voltage: 230V AC / 24V DC (Versatile power input for global compatibility)
• Safety Outputs: 3 N/O Contacts (Ensures fail-safe performance)
• Auxiliary Output: 1 N/C Contact (For comprehensive system feedback)
• Semiconductor Output: 1 (For enhanced signaling and control)
• Input Configuration: Single or Dual-Channel (Adaptable to diverse safety architectures)
• Power Consumption: Approximately 2.5W (Energy-efficient operation)
• Housing Material: Industrial-grade plastic (Durable and resilient for harsh environments)
• Protection Rating:
  • Housing: IP40 (Protection against solid objects larger than 1mm)
  • Terminals: IP20 (Finger-safe protection)
• Operating Temperature: -20°C to +55°C (-4°F to 131°F) (Reliable performance across a wide temperature range)
• Mounting Type: DIN Rail (Standardized for quick and secure installation)
• Dimensions: 45 mm width (Compact design for space-constrained installations)
• Approvals: CE, cULus Listed, TÜV, CCC (Globally recognized certifications for quality and safety)

Applications

• Industrial Automation Safety: The cornerstone for ensuring safe and controlled machine shutdowns across all automated processes.
• Emergency Stop Circuit Monitoring: Provides an immediate and reliable response to emergency situations, preventing accidents and injuries.
• Safety Gate & Access Control: Plays a crucial role in protecting operators by securely monitoring access points to hazardous machinery.
• Machine Safety & Hazard Prevention: Actively prevents unauthorized or unsafe machine operation, upholding the highest safety standards.
• Manufacturing & Assembly Safety Systems: Essential for building compliant and robust safety infrastructures in all manufacturing and assembly lines.

Why Choose This Model?

The Pilz 774318 PNOZ X3 stands out as a superior choice for a multitude of compelling reasons. Its reputation for unwavering reliability and extensive certifications ensures that your industrial safety applications meet the most stringent global standards. This model offers exceptional versatility, supporting multiple wiring configurations to seamlessly integrate into diverse control systems without compromise. Installation and integration into existing automation systems are remarkably straightforward, minimizing installation time and complexity. Furthermore, its durable, compact, and energy-efficient design guarantees long-term, dependable performance, translating into reduced operational costs and enhanced system longevity. Invest in the PNOZ X3 for a safety solution that is both advanced and economically sound.

Order Now

Elevate your industrial safety standards today with the Pilz 774318 PNOZ X3 Safety Relay. Benefit from fast shipping and worldwide delivery options, ensuring that this critical safety component reaches you promptly, wherever your operations are located. Secure your environment and enhance operational efficiency by incorporating this high-performance safety solution into your systems.
