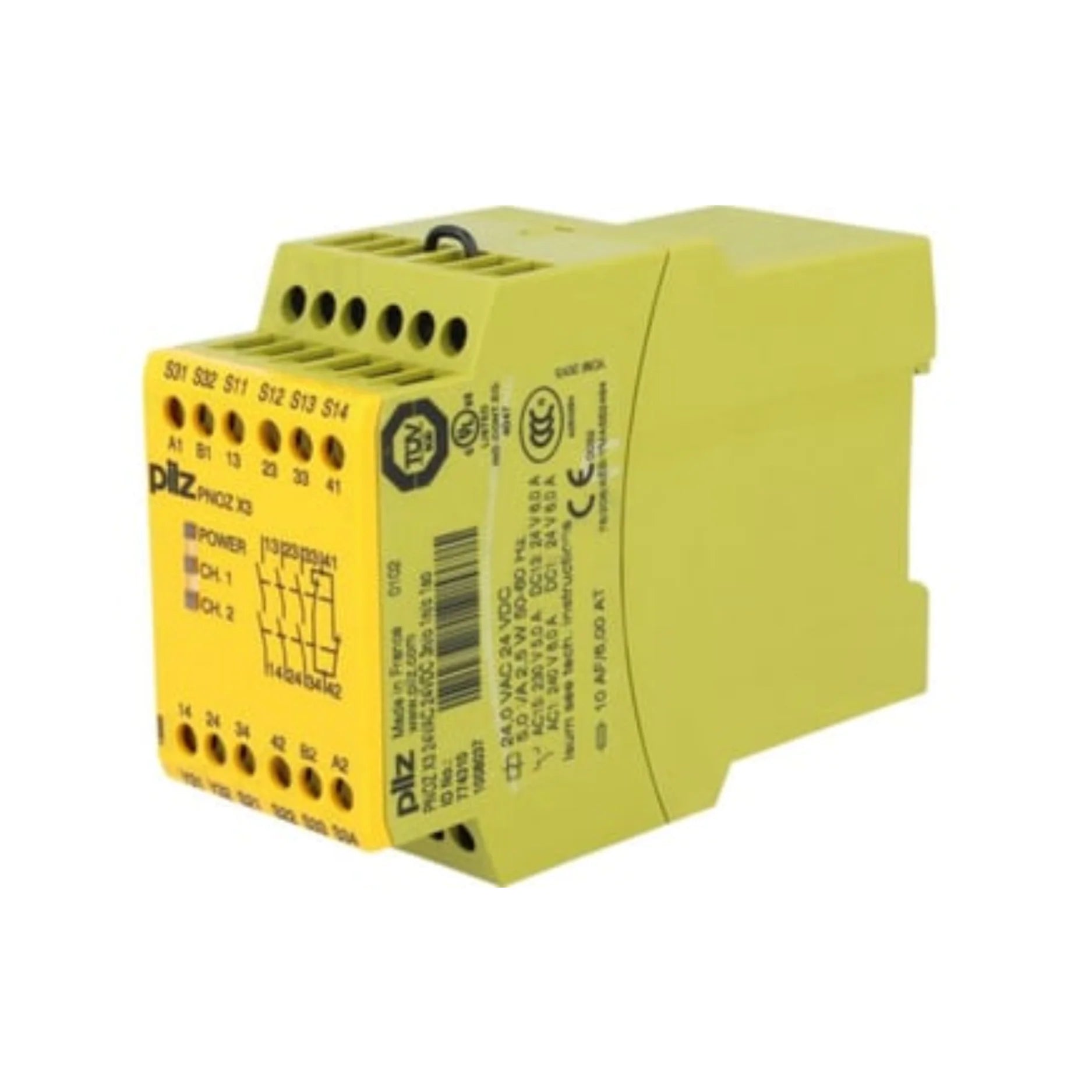

Pilz 774315

Overview

Elevate your industrial safety standards with the Pilz 774315 PNOZ X3 safety relay. Engineered for critical machine and process safety applications, this robust device provides unparalleled reliability in monitoring emergency stops, safety gates, and light barriers. Its sophisticated design ensures fail-safe switching and consistently dependable operation, safeguarding both personnel and equipment in demanding industrial environments.

The PNOZ X3 is equipped with a versatile configuration of three normally open (NO) contacts, one normally closed (NC) contact, and a semiconductor output. This powerful combination facilitates precise control and immediate shutdown of hazardous machinery in various industrial automation scenarios. Beyond its impressive functionality, the PNOZ X3 boasts a compact form factor ideal for DIN rail mounting, ensuring effortless integration and space efficiency within existing safety-critical systems. Trust Pilz for advanced safety solutions that meet and exceed industry requirements.

Key Features

• 3 NO Safety Contacts: Provides triple redundancy for secure integration into your safety circuits, offering enhanced protection.
• 1 NC Monitoring Contact: Delivers fail-safe monitoring capabilities, ensuring that any fault is detected and responded to instantaneously.
• 1 Semiconductor Output: Facilitates real-time transmission of safety signals, allowing for swift and precise responses to hazardous conditions.
• 24V DC Operating Voltage: Optimized for a wide array of industrial automation applications, ensuring seamless compatibility and efficient performance.
• LED Status Indicators: Offers at-a-glance diagnostics and continuous monitoring, allowing for quick identification of operational status.
• DIN Rail Mounting: Simplifies installation and promotes efficient use of control cabinet space, essential for modern industrial setups.

Technical Specifications

• Model: Pilz PNOZ X3 (774315)
• Operating Voltage: 24V DC
• Safety Contacts: 3 NO
• Monitoring Contact: 1 NC
• Semiconductor Output: 1 SO
• Connection Type: Screw terminals
• Mounting Type: DIN Rail
• Protection Rating: IP40 (housing), IP20 (terminals)
• Operating Temperature: -25°C to 55°C (-13°F to 131°F)

Applications

The Pilz 774315 PNOZ X3 safety relay is an indispensable component across a multitude of industrial safety applications, ensuring operational integrity and personnel protection:

• Emergency Stop Monitoring: Guarantees instantaneous and safe shutdown of machinery in urgent situations, minimizing risk.
• Safety Gate Monitoring: Prevents unauthorized access to hazardous areas, ensuring that machinery cannot operate if guards are breached.
• Two-Hand Control Systems: Protects operators by requiring simultaneous activation from both hands, preventing accidental contact with moving parts.
• Light Curtain & Sensor Integration: Seamlessly integrates with advanced automated safety systems, enhancing detection capabilities and response times.
• Presses & Robotics Safety Control: Provides robust fail-safe control and shutdown mechanisms for complex and high-risk machinery like industrial presses and robotic cells.

Why Choose This Model?

The Pilz 774315 PNOZ X3 stands out as a superior choice for your safety needs due to its unparalleled combination of reliability, performance, and user-friendly design. This safety relay is meticulously engineered to provide exceptional security in the most demanding industrial environments. Its compact size belies its powerful capabilities, making it a durable and efficient solution that integrates effortlessly into your existing safety infrastructure. By choosing the PNOZ X3, you are investing in a product that not only ensures compliance with stringent machine safety regulations but also significantly enhances operational efficiency through its dependable fail-safe switching mechanisms and streamlined installation process. It represents a commitment to the highest standards of industrial safety and operational continuity.

Order Now

Secure your operations with the Pilz 774315 PNOZ X3 safety relay today. Benefit from our fast shipping and worldwide delivery options, ensuring that your critical safety components arrive precisely when and where you need them. Enhance your machine safety and operational efficiency by incorporating this essential device into your industrial automation setup.
