Pilz 774310

Overview

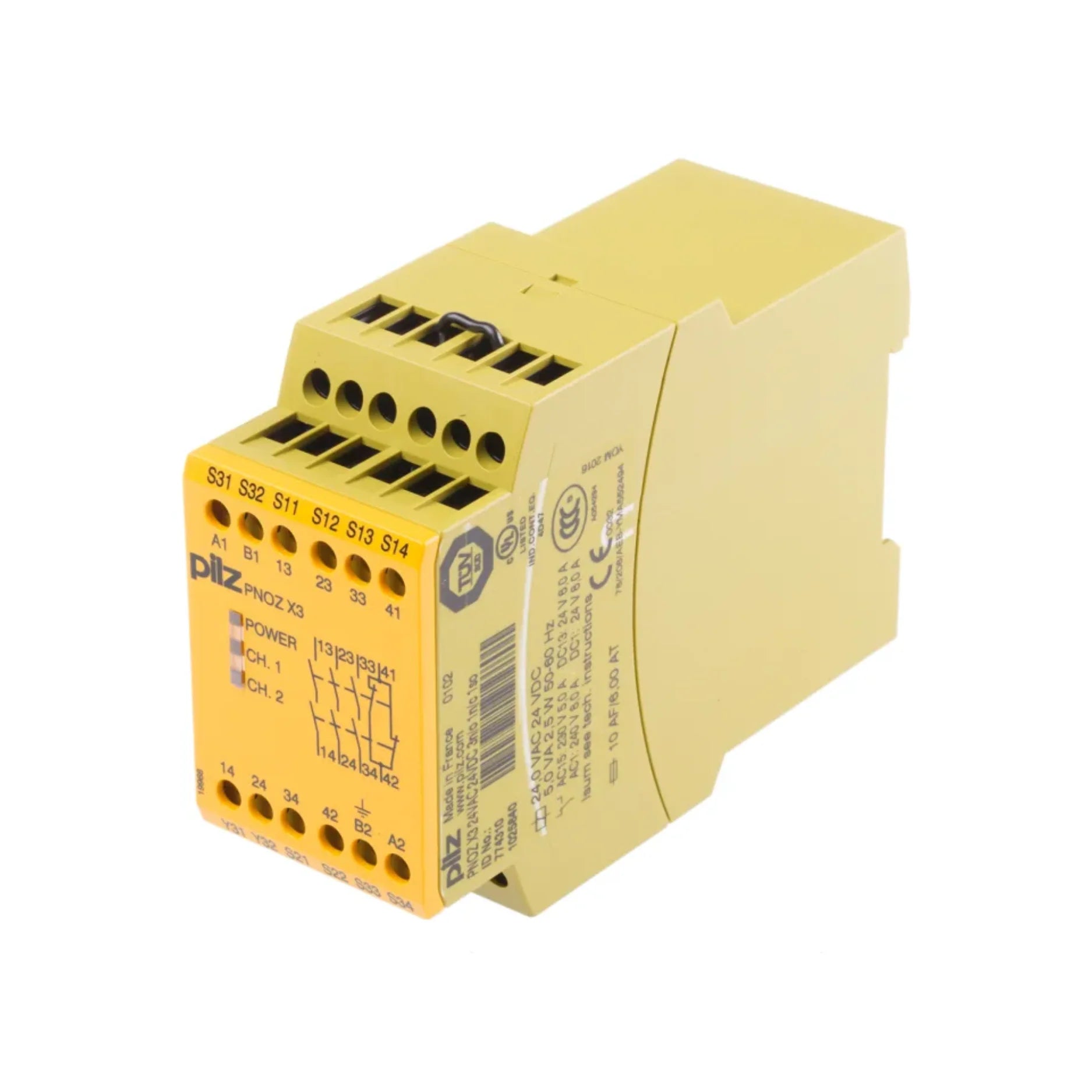

The Pilz 774310 PNOZ X3 Safety Relay is an indispensable component for maintaining paramount safety standards in industrial environments. Engineered by the renowned safety experts at Pilz, this high-reliability safety relay is specifically designed to meticulously monitor emergency stop (E-STOP) buttons, safety gates, and light barriers. Its robust design and advanced features ensure rapid fault detection and immediate, safe circuit interruption, thereby protecting personnel and machinery in hazardous operational zones. The PNOZ X3 stands out with its integrated LED diagnostics, simplifying troubleshooting and enhancing operational efficiency. This combination of rugged construction and intuitive design makes the Pilz 774310 PNOZ X3 an ideal, compliant, and cost-effective solution for a wide array of industrial safety applications, guaranteeing optimal operational safety.

Key Features

• Emergency Stop & Safety Gate Monitoring: Provides immediate and safe circuit interruption upon activation, vital for accident prevention.
• 3 Normally Open (N/O) Safety Contacts: Delivers critical, reliable safety control outputs for secure system integration.
• 1 Normally Closed (N/C) Auxiliary Contact: Offers valuable status monitoring capabilities, allowing for comprehensive system oversight.
• Single & Dual-Channel Operation: Accommodates diverse wiring configurations, providing flexibility for various industrial setups.
• Automatic, Manual, & Monitored Start Options: Ensures adaptable and convenient operation modes tailored to specific application requirements.
• LED Status Indicators: Facilitates real-time fault diagnostics, minimizing downtime and streamlining maintenance.
• Expandable Design: Seamlessly compatible with PNOZ X contact expansion modules, allowing for future system growth and customization.
• DIN Rail Mounting: Simplifies the installation process and integrates effortlessly into existing control cabinets.

Technical Specifications

• Model: 774310
• Series: PNOZ X3
• Supply Voltage: 24V AC/DC
• Safety Outputs: 3 N/O Contacts
• Auxiliary Output: 1 N/C Contact
• Input Configuration: Single or Dual-Channel
• Power Consumption: Low energy consumption for efficient operation, contributing to reduced running costs.
• Housing Material: High-grade industrial plastic, engineered for durability and longevity in demanding environments.
• Protection Rating:
  • Housing: IP40
  • Terminals: IP20
• Operating Temperature: -20°C to +55°C (-4°F to 131°F), ensuring reliable performance across a broad spectrum of industrial conditions.
• Mounting Type: DIN Rail
• Approvals: CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC – signifying adherence to global quality and safety standards.

Applications

• Industrial Automation Safety: Essential for orchestrating safe machine shutdowns and ensuring compliant operational procedures.
• Emergency Stop Circuit Monitoring: Provides immediate and foolproof safety control in critical situations.
• Safety Gate & Access Control: Significantly enhances operator protection by effectively managing access to hazardous areas.
• Machine Safety & Hazard Prevention: A cornerstone in preventing unauthorized machine operation and mitigating potential risks.
• Manufacturing & Assembly Safety Systems: Crucial for ensuring full compliance with stringent safety regulations and fostering a secure work environment.

Why Choose This Model?

The Pilz 774310 PNOZ X3 Safety Relay offers an unparalleled blend of reliability, efficiency, and compliance for critical industrial safety applications. Choosing this model means investing in a solution that is both highly dependable and certified to meet rigorous global industrial safety standards. Its ability to support multiple wiring configurations provides exceptional versatility, allowing for seamless integration into diverse automation systems without extensive modifications. Installation and setup are remarkably straightforward, reducing implementation time and complexity. Furthermore, its durable, compact, and energy-efficient design guarantees long-term, trouble-free operation, making it a cost-effective and smart choice for any organization prioritizing worker safety and operational integrity. With Pilz, you are choosing a legacy of safety innovation.
