Pilz 774300

Overview

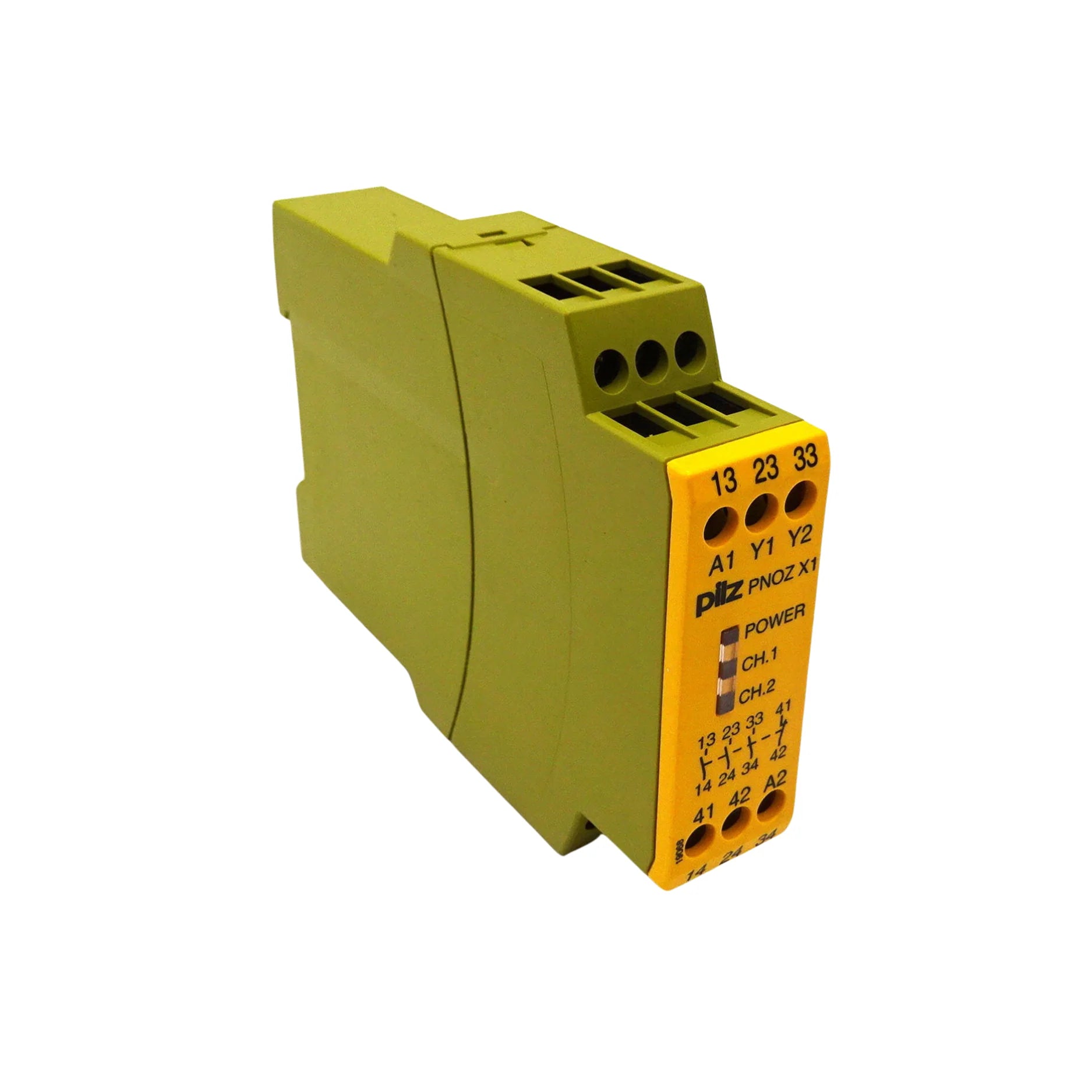

The Pilz 774300 PNOZ X1 Safety Relay stands as a cornerstone in industrial safety, providing unwavering reliability for critical monitoring applications. Engineered for the rigorous demands of modern automation, this high-performance safety relay is meticulously designed to safeguard personnel and equipment by vigilantly overseeing emergency stop (E-STOP) buttons, safety gates, and even light barriers. Its robust functionality ensures a rapid and decisive response to hazardous conditions, guaranteeing optimal operational safety across diverse industrial environments. Integrating seamlessly into existing systems, the PNOZ X1 represents a vital component in any comprehensive safety strategy, offering peace of mind through its proven effectiveness and advanced diagnostic capabilities.

Key Features

• Emergency Stop & Safety Gate Monitoring: Provides immediate and safe circuit interruption, stopping machinery in critical situations.
• 3 Normally Open (N/O) Safety Contacts: Delivers critical, redundant safety control for reliable system shutdown.
• 1 Normally Closed (N/C) Auxiliary Contact: Offers essential status monitoring, allowing for integration with control systems.
• Single-Channel Operation: Streamlines wiring and simplifies installation, reducing complexity and potential for error.
• Feedback Control Loop: Actively monitors external contactors or relays, ensuring their proper function within the safety circuit.
• LED Status Indicators: Provides clear, real-time diagnostic feedback, enabling quick identification and resolution of faults.
• Compact Design (22.5mm wide): Maximizes valuable control cabinet space, an essential consideration in densely packed industrial setups.
• DIN Rail Mounting: Facilitates quick and secure installation and integration within standard industrial enclosures.

Technical Specifications

• Model: 774300
• Series: PNOZ X1
• Supply Voltage: 24V AC/DC
• Safety Outputs: 3 N/O Contacts
• Auxiliary Output: 1 N/C Contact
• Input Configuration: Single-Channel
• Housing Material: Industrial-grade plastic, ensuring durability in harsh environments.
• Protection Rating:
  • Housing: IP40 (protection against solid objects over 1mm)
  • Terminals: IP20 (protection against solid objects over 12mm)
• Operating Temperature: -10°C to +55°C (14°F to 131°F), suitable for a wide range of industrial climates.
• Mounting Type: DIN Rail, for easy and secure installation.
• Dimensions: 22.5mm width, optimizing panel real estate.
• Approvals: CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC – demonstrating compliance with rigorous international safety standards.

Applications

• Industrial Automation Safety: Ensures the secure and timely shutdown of automated machinery, protecting operators and preventing damage.
• Emergency Stop Circuit Monitoring: Provides critical oversight for all emergency stop mechanisms, guaranteeing immediate response.
• Safety Gate & Access Control: Enhances operator protection by monitoring the status of safety gates and preventing unauthorized access to危险区域.
• Machine Safety & Hazard Prevention: A foundational component in comprehensive strategies to prevent machine-related injuries and operational risks.
• Manufacturing & Assembly Safety Systems: Essential for ensuring compliance with stringent safety regulations in production and assembly lines.

Why Choose This Model?

Opting for the Pilz 774300 PNOZ X1 Safety Relay is a strategic decision for any organization prioritizing uncompromised industrial safety. This model stands out due to its unwavering reliability and comprehensive certifications, making it a trusted solution for diverse industrial applications. Its intelligently engineered compact design not only conserves valuable panel space within control cabinets but also simplifies integration into complex automation systems. Beyond its space-saving benefits, the PNOZ X1 is renowned for its ease of installation and seamless integration, minimizing downtime during setup and maintenance. Built with durable, industrial-grade materials, this safety relay is designed for long-term, efficient performance, ensuring a robust and cost-effective solution for your safety needs. Experience the peace of mind that comes with deploying a globally recognized and certified safety component from Pilz.
