Pilz 772100

Overview

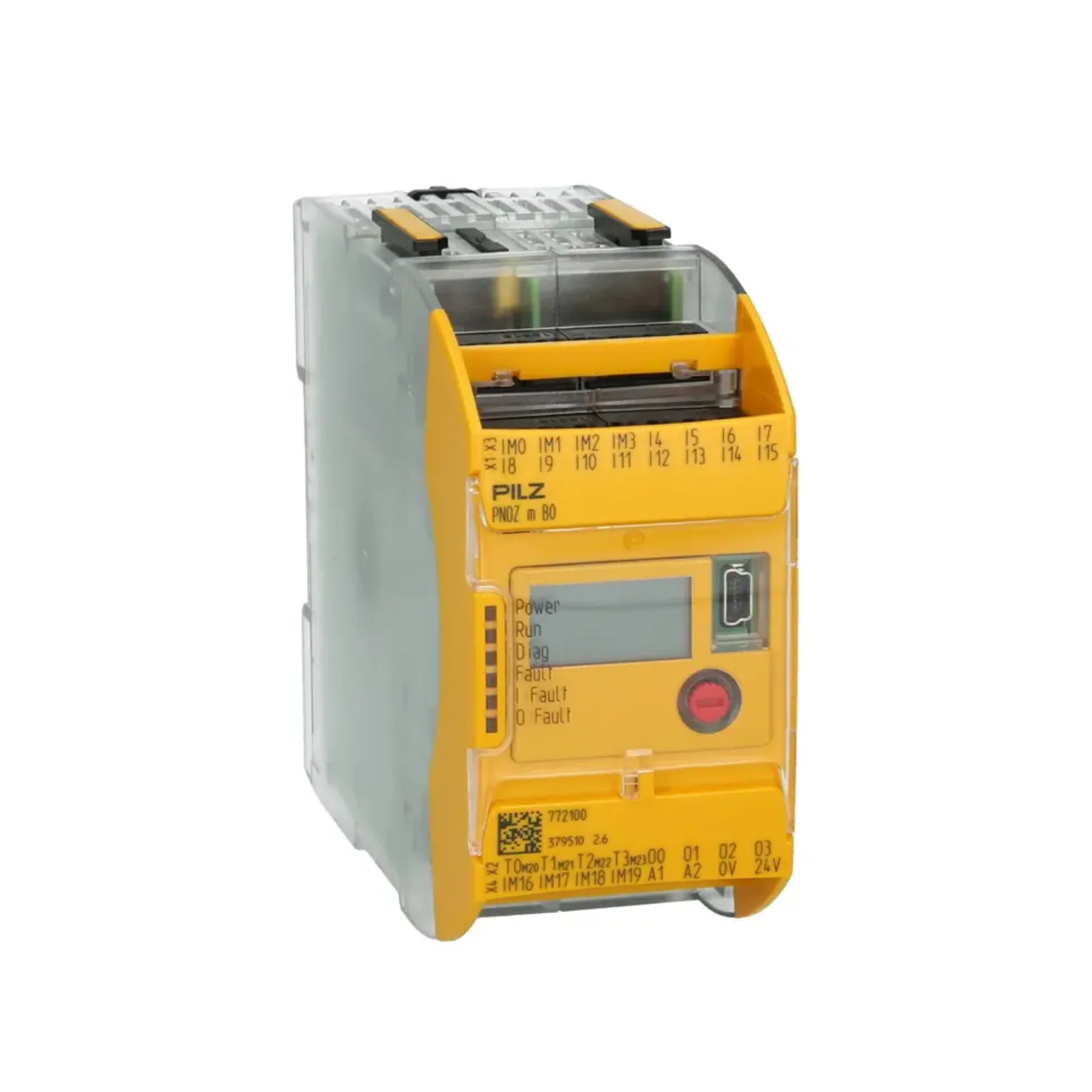

The Pilz 772100 PNOZ m B0 Base Unit is a cutting-edge configurable safety controller designed to be the central component of your industrial safety systems. Part of the renowned PNOZmulti 2 series, this base unit offers unparalleled reliability and flexibility for monitoring critical safety functions. Engineered for demanding industrial automation environments, the PNOZ 772100 ensures the safeguarding of machinery and the paramount protection of personnel, integrating seamlessly into complex safety architectures. Its modular design allows for future expansion, making it a sustainable solution for evolving safety requirements.

Key Features

• 20 Safe Digital Inputs: Provides extensive connectivity for a wide array of safety devices, including emergency stop buttons, safety gates, and light curtains, ensuring comprehensive monitoring capabilities.
• 4 Safe Semiconductor Outputs: Delivers secure and reliable control of actuators and indicators within your safety circuits, facilitating prompt and efficient safety responses.
• 8 Configurable Inputs/Outputs: Offers exceptional versatility, allowing these eight ports to be adapted as either inputs or auxiliary outputs, catering to diverse application-specific needs.
• 4 Test Pulse Outputs: Integrated to provide robust diagnostics and continuous monitoring of connected sensors, guaranteeing the integrity and performance of your safety system.
• USB Interface: Simplifies configuration and diagnostic tasks through intuitive connectivity with the PNOZmulti Configurator software, streamlining commissioning and maintenance.
• Compact Design: Optimized for space-saving installation, its sleek form factor ensures efficient use of valuable control cabinet space without compromising functionality.
• DIN Rail Mounting: Facilitates quick and easy integration into existing industrial setups, minimizing installation time and effort.

Technical Specifications

• Model: 772100
• Series: PNOZmulti 2
• Supply Voltage: 24V DC (-20%/+25%)
• Digital Inputs: 20 safe inputs
• Configurable I/Os: 8 (can be used as inputs or auxiliary outputs)
• Semiconductor Outputs: 4 safe outputs
• Switching Voltage: 24V DC
• Output Current: Up to 2 A per channel
• Test Pulse Outputs: 4
• Power Consumption: Approximately 18.5 W
• Dimensions (H x W x D): 101.4 mm x 45.0 mm x 120.0 mm
• Operating Temperature: 0°C to +60°C
• Mounting: DIN rail
• Approvals: CE, cULus Listed, TÜV, CCC

Applications

• Industrial Automation Safety: Serves as the cornerstone for monitoring and controlling safety-related aspects of machinery, ensuring compliance and operational integrity.
• Emergency Stop Monitoring: Provides immediate and fail-safe responses to emergency stop activations, minimizing risks during critical events.
• Safety Gate Control: Manages access to hazardous areas by reliably monitoring safety gates, preventing unauthorized entry and protecting operators.
• Light Curtain Integration: Seamlessly interfaces with optical safety devices to establish protective fields around hazardous machinery, enhancing personnel safety.
• Comprehensive Safety Systems: Integrates effortlessly into larger, more complex safety architectures, enabling coordinated protection strategies across entire industrial plants.

Why Choose This Model?

The Pilz 772100 PNOZ m B0 Base Unit stands out as a superior choice for your industrial safety needs due to its blend of advanced features and robust design. It delivers Enhanced Safety, rigorously tested to meet stringent international safety standards, thereby providing reliable protection for both your personnel and valuable equipment. Its Flexible Configuration capabilities, facilitated by the intuitive PNOZmulti Configurator, allow for quick adaptation to various safety applications and evolving operational demands. As a Modular and Expandable unit, it supports system scalability, allowing you to easily add expansion modules as your requirements grow, making it a future-proof investment. Furthermore, its Compact and Durable construction ensures easy installation and long-term, dependable operation even in the most challenging industrial environments. Finally, with Global Certifications such as CE, cULus Listed, TÜV, and CCC, the Pilz 772100 guarantees suitability and compliance for worldwide applications, making it a trusted choice for global operations.

Order Now

Elevate the safety standards of your operations with the powerful and reliable Pilz 772100 PNOZ m B0 Base Unit. Ensure peak performance and peace of mind by securing this essential component for your industrial automation setup today. Benefit from our fast shipping and worldwide delivery options to get your safety solution precisely when and where you need it.
