Pilz 751105

Overview

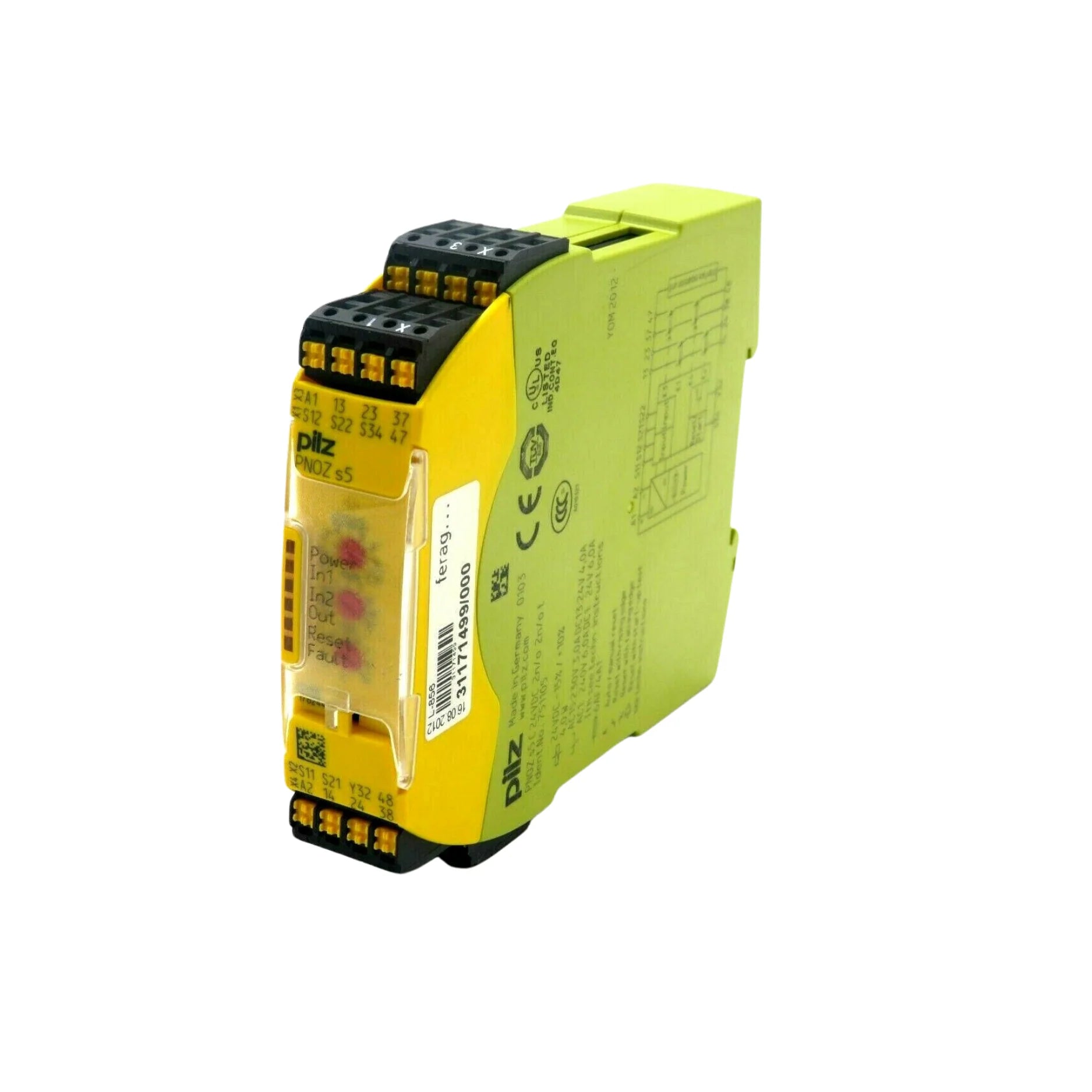

The Pilz 751105 PNOZ s5 C Safety Relay is a state-of-the-art component from the renowned PNOZsigma series, engineered to provide unparalleled safety monitoring for critical industrial applications. This robust safety relay is meticulously designed for supervising emergency stop (E-STOP) circuits, safety gates, and light beam devices, offering both instantaneous and time-delayed safety contact functionality. This dual capability ensures precise and flexible control over safety circuits where synchronized or sequenced responses are paramount, significantly enhancing operational safety and efficiency in automated environments. Its integration into your safety system guarantees compliance with stringent safety standards while optimizing process flows.

Key Features

• 2 Instantaneous Normally Open (N/O) Safety Contacts: Provides immediate and precise disconnection of safety circuits upon the activation of a safety function, ensuring rapid hazard mitigation for critical scenarios.
• 2 Time-Delayed Normally Open (N/O) Safety Contacts: Facilitates sophisticated, controlled shutdown sequences with adjustable time delays, allowing for gradual system stops or sequential equipment deactivation, which can prevent damage and improve operational continuity.
• Adjustable Time Delay: Offers exceptional flexibility, allowing users to configure the time delay settings precisely to meet the unique requirements of various industrial applications and processes.
• Single and Dual-Channel Operation: Supports versatile wiring configurations, accommodating both single and dual-channel safety circuits, complete with advanced detection of shorts across contacts for enhanced reliability and fault detection.
• LED Status Indicators: Equipped with intuitive LED indicators that provide clear, real-time visual feedback on the operational status and diagnostic information, simplifying troubleshooting and system maintenance.
• DIN Rail Mounting: Engineered for effortless installation and seamless integration into existing industrial control panels, ensuring quick setup and minimal downtime during deployment.

Technical Specifications

• Model: 751105
• Series: PNOZ s5 C
• Supply Voltage: 24V DC, ensuring compatibility with standard industrial power supplies.
• Safety Outputs: Features a robust configuration of 2 Normally Open (N/O) instantaneous contacts and 2 Normally Open (N/O) time-delayed contacts, offering versatile control options.
• Time Delay Range: Adjustable (specific range to be confirmed from detailed datasheet), providing granular control over timed safety functions.
• Power Consumption: Approximately 2W, indicating energy-efficient operation suitable for continuous use.
• Dimensions (W x H x D): Compact design at 22.5 mm x 100 mm x 120 mm, allowing for installation in space-constrained enclosures.
• Operating Temperature: Designed to operate reliably across a broad range from -10°C to +55°C, making it suitable for diverse industrial environments.
• Mounting: Standard DIN rail mounting for quick, secure, and organized installation.
• Approvals: Holds essential certifications including CE, cULus Listed, TÜV, and CCC, guaranteeing compliance with international safety and quality standards.

Applications

The Pilz 751105 PNOZ s5 C Safety Relay is an indispensable component for a wide array of industrial safety applications, including but not limited to:

• Emergency Stop Monitoring: Provides both immediate and precisely timed responses for E-STOP functions, crucial for safeguarding personnel and preventing equipment damage during emergencies.
• Safety Gate Monitoring: Effectively controls access to hazardous machinery and areas, implementing timed safety measures to ensure that machinery can safely halt before personnel entry.
• Light Beam Device Monitoring: Seamlessly integrates with optical safety devices and light curtains, offering essential protection for operators from moving machinery by initiating controlled shutdowns.
• Timed Safety Functions: Enables the implementation of complex, controlled shutdown sequences in sophisticated automated processes, optimizing operational transitions and preventing abrupt stops that could cause damage or reduce efficiency.

Why Choose This Model?

The Pilz 751105 PNOZ s5 C Safety Relay stands out in the market due to its exceptional combination of versatility, reliability, and ease of integration. Its ability to provide both instantaneous and time-delayed safety contacts offers unparalleled flexibility for designing sophisticated safety systems that meet the specific operational requirements of complex industrial machinery. This model ensures not only adherence to rigorous international safety standards, guaranteeing dependable performance, but also simplifies setup with its compact design and universal DIN rail mounting. The customizable delay settings further empower engineers to fine-tune safety responses, making the PNOZ s5 C an intelligent and cost-effective choice for enhancing the safety and efficiency of any industrial application. Choosing this Pilz safety relay is an investment in superior protection, operational continuity, and peace of mind.

Order Now

Elevate your industrial safety infrastructure with the advanced capabilities of the Pilz 751105 PNOZ s5 C Safety Relay. Ensure maximum protection and operational efficiency for your machinery and personnel. Benefit from our fast shipping and reliable worldwide delivery options to secure your safety solutions today!
