Pilz 751104

Overview

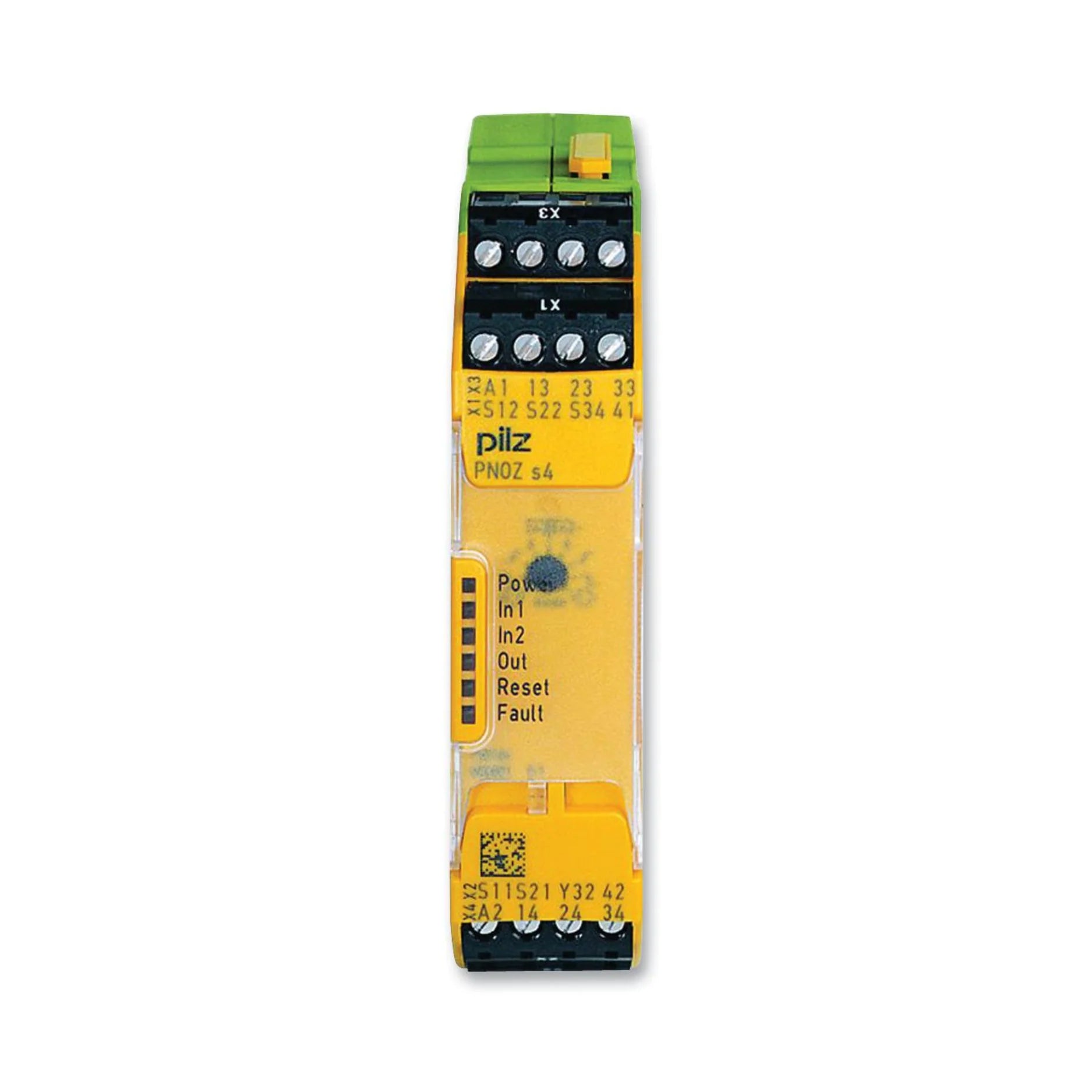

The Pilz 751104 PNOZ s4.1 Safety Relay stands as a pinnacle of reliability and performance in industrial safety monitoring. Engineered for precision and unwavering stability, this crucial component is designed to oversee critical safety functions including emergency stop (E-STOP) buttons, safety gates, and light curtains within demanding industrial automation environments. Its exceptional design integrates multiple safety outputs, guaranteeing immediate and decisive action when safety protocols are compromised. The rapid response time of the PNOZ s4.1 minimizes risk, while its compact form factor allows for seamless integration into existing systems without occupying excessive space. This relay is a cornerstone for maintaining optimal operational safety, particularly in environments where hazardous machinery or processes are present, safeguarding both personnel and equipment.

Constructed with a robust housing to withstand stringent industrial conditions, the PNOZ s4.1 further enhances operational efficiency through integrated LED diagnostics. These intuitive indicators provide real-time status feedback, enabling quick identification and resolution of any potential issues, thereby reducing downtime. Its design prioritizes ease of installation, making it a highly practical and ideal safety solution for a wide array of industrial applications requiring vigilant and reliable safety monitoring.

Key Features

• Emergency Stop & Safety Gate Monitoring: Provides unparalleled control over critical safety circuits, ensuring immediate machine shutdown upon activation.
• 3 Normally Open (N/O) Safety Contacts: Guarantees secure interruption of power in hazardous situations, meeting stringent safety requirements.
• 1 Normally Closed (N/C) Auxiliary Contact: Offers valuable status monitoring capabilities, allowing for integration into control systems for diagnostics and operational feedback.
• Single & Dual-Channel Operation: Delivers flexible wiring configurations to adapt to diverse application needs and safety architectures.
• Automatic, Manual, & Monitored Start Options: Provides versatility in operation modes, allowing for customized system startup procedures.
• LED Status Indicators: Enables effortless real-time fault diagnostics and operational status, enhancing troubleshooting efficiency.
• Compact DIN Rail Mounting: Facilitates quick and easy installation within control cabinets, optimizing space utilization.
• High Durability for Industrial Use: Built to endure the demanding conditions of industrial environments, ensuring a long operational lifespan.

Technical Specifications

• Model: 751104
• Series: PNOZ s4.1
• Supply Voltage: 24V DC
• Safety Outputs: 3 N/O Contacts
• Auxiliary Output: 1 N/C Contact
• Input Configuration: Single or Dual-Channel
• Power Consumption: Optimized for low energy consumption, contributing to efficient operational costs.
• Housing Material: Crafted from industrial-grade plastic, providing resilience against physical impacts and environmental factors.
• Protection Rating:
  • Housing: IP40 – Offers robust protection against solid objects larger than 1mm.
  • Terminals: IP20 – Provides protection against insertion of fingers, enhancing safety during installation and maintenance.
• Operating Temperature: -10°C to +55°C (14°F to 131°F) – Ensures reliable performance across a significant range of industrial temperatures.
• Mounting Type: DIN Rail – Standardized mounting for straightforward integration into control panels.

Applications

• Industrial Automation Safety: Essential for safeguarding automated machinery, ensuring safe and controlled shutdowns in emergencies.
• Emergency Stop Circuit Monitoring: Provides an instantaneous and fail-safe mechanism for critical emergency stop functions in any industrial setting.
• Safety Gate & Access Control: Crucial for monitoring the status of safety gates and access points, preventing operation when guards are open.
• Machine Safety & Hazard Prevention: Integrates seamlessly into comprehensive machine safety systems to prevent unauthorized or unsafe operations.
• Manufacturing & Assembly Safety Systems: Supports compliance with stringent safety regulations in manufacturing and assembly lines, protecting workers and assets.

Why Choose This Model?

Choosing the Pilz 751104 PNOZ s4.1 means investing in a superior safety solution that delivers peace of mind and operational excellence. This model is not just reliable; it is certified for a broad spectrum of industrial safety applications, ensuring it meets and exceeds industry standards. Its versatility is evident in its support for multiple wiring configurations, making it adaptable to diverse and evolving safety system designs. Engineers and technicians will appreciate its ease of installation and seamless integration into existing automation networks, significantly reducing setup time and complexity.

Beyond its technical prowess, the PNOZ s4.1 is built for longevity. Its durable construction guarantees sustained performance even in the most challenging industrial environments, offering a long-term, efficient, and compact safety solution. By selecting the Pilz 751104, you are opting for a product that embodies precision engineering, robust design, and unparalleled safety functionality, making it an indispensable asset for any industrial operation prioritizing safety and efficiency.

Order Now

Enhance your industrial safety infrastructure today with the Pilz 751104 PNOZ s4.1 Safety Relay. Experience the perfect blend of reliability, advanced features, and user-friendly design. Benefit from our fast shipping and worldwide delivery options to secure this essential safety component for your operations without delay.
