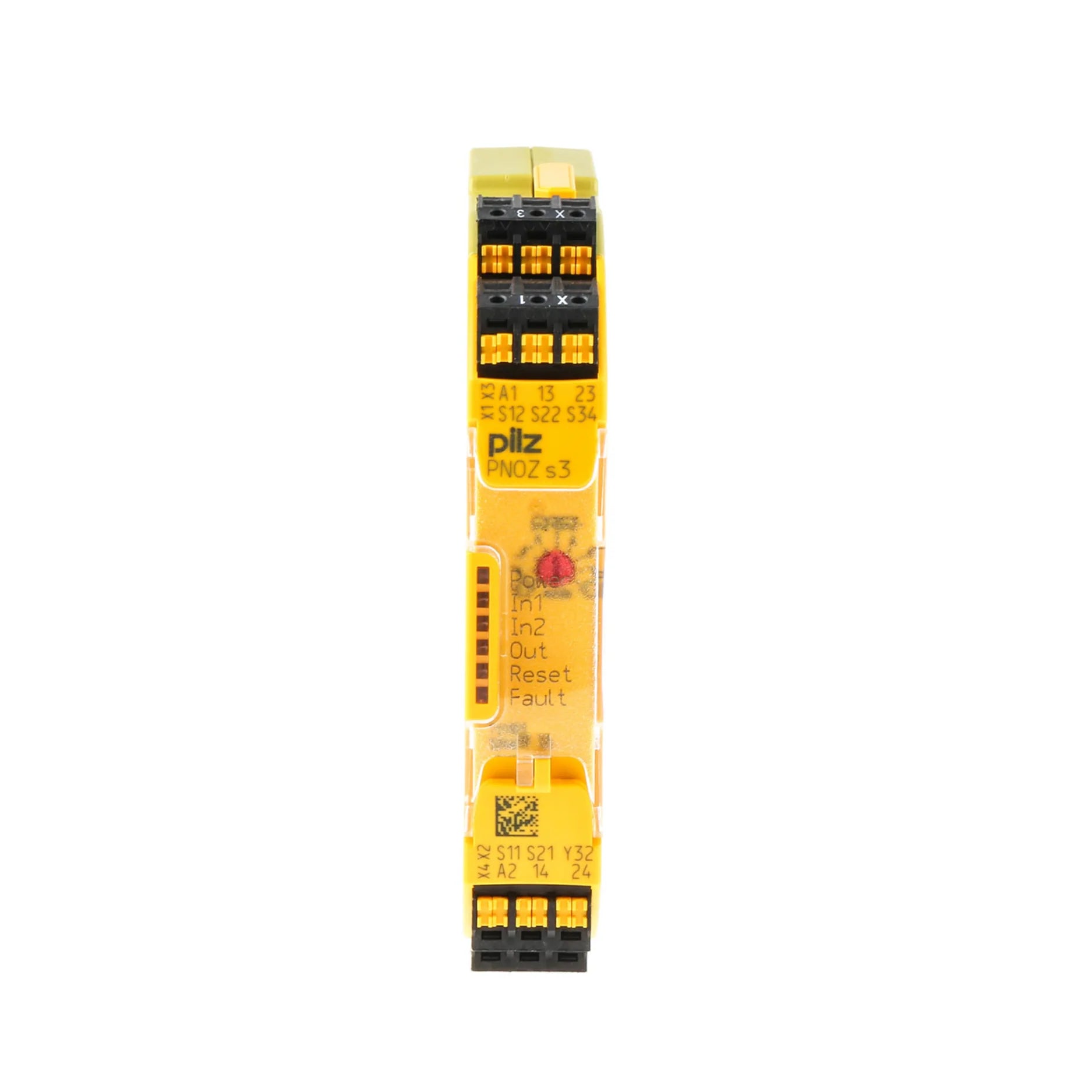

Pilz 751103

Overview

The Pilz 751103 PNOZ s3 C 24VDC 2 n/o Safety Relay stands as a cornerstone of industrial safety, engineered for unwavering performance in critical applications. This high-reliability device is specifically designed to meticulously monitor emergency stop (E-STOP) buttons, safety gates, and light barriers, ensuring immediate and secure circuit interruption when necessary. With its advanced fault detection capabilities and rapid response time, the PNOZ s3 C 24VDC 2 n/o guarantees optimal operational safety, protecting personnel and machinery in even the most challenging industrial environments.

Crafted for durability and ease of use, this safety relay boasts a rugged housing, integrated LED diagnostics for at-a-glance status monitoring, and a design that simplifies installation. Its compact form factor and robust construction make it an indispensable component for modern industrial automation, providing peace of mind through enhanced safety protocols.

Key Features

• Emergency Stop & Safety Gate Monitoring: Provides immediate and safe circuit interruption, paramount for preventing accidents.
• 2 Normally Open (N/O) Safety Contacts: Delivers robust and reliable safety control for critical applications.
• Single & Dual-Channel Operation: Offers versatile wiring configurations to suit diverse system requirements.
• Automatic, Manual, & Monitored Start Options: Provides flexible operational modes for seamless integration into various safety concepts.
• LED Status Indicators: Enables real-time, comprehensive fault diagnostics, minimizing downtime and simplifying troubleshooting.
• Expandable Design: Fully compatible with PNOZsigma contact expansion modules, allowing for future system growth and adaptability.
• DIN Rail Mounting: Facilitates effortless installation and seamless integration into existing control cabinets.
• Push-In Terminals: Ensures quick, secure, and reliable wiring connections, reducing installation time and effort.

Technical Specifications

• Model: 751103
• Series: PNOZ s3 C
• Supply Voltage: 24V DC
• Safety Outputs: 2 N/O Contacts
• Input Configuration: Single or Dual-Channel
• Power Consumption: Low energy consumption for efficient and economical operation.
• Housing Material: Industrial-grade plastic, ensuring durability and resilience in harsh environments.
• Protection Rating:
  • Housing: IP40 – Protected against solid objects greater than 1mm.
  • Terminals: IP20 – Protected against solid objects greater than 12mm.
• Operating Temperature: -10°C to +55°C (14°F to 131°F), ensuring reliable performance in varying conditions.
• Mounting Type: DIN Rail – Standardized mounting for easy integration.
• Dimensions: 100 x 17.5 x 120 mm – Compact design for space-efficient installation.

Applications

• Industrial Automation Safety: Essential for safeguarding machine operations and personnel in automated production lines.
• Emergency Stop Circuit Monitoring: Provides crucial monitoring of E-STOP circuits to guarantee immediate cessation of hazardous movements.
• Safety Gate & Access Control: Enhances operator protection by reliably monitoring the status of safety gates and access points.
• Machine Safety & Hazard Prevention: A vital component in preventing unauthorized machine operation and mitigating industrial hazards.
• Manufacturing & Assembly Safety Systems: Ensures compliance with stringent safety regulations and standards in manufacturing and assembly environments.

Why Choose This Model?

The Pilz 751103 PNOZ s3 C 24VDC 2 n/o stands out as a superior choice for industrial safety applications due to its unparalleled reliability and robust feature set. This model is not only certified for rigorous industrial use but also offers exceptional flexibility with multiple wiring configurations, adapting effortlessly to your specific system demands. Its design prioritizes ease of installation and seamless integration, ensuring minimal downtime during setup and maximizing operational efficiency. Furthermore, its durable, compact, and energy-efficient construction guarantees long-term, high-performance operation, making it a wise investment for advanced safety solutions.

Order Now

Secure your industrial operations with the dependable Pilz 751103 PNOZ s3 C 24VDC 2 n/o Safety Relay. Benefit from fast shipping and worldwide delivery options to get this essential safety component to your facility without delay. Enhance your safety protocols and achieve peace of mind by investing in a proven solution from a trusted leader in industrial safety. Place your order today!
