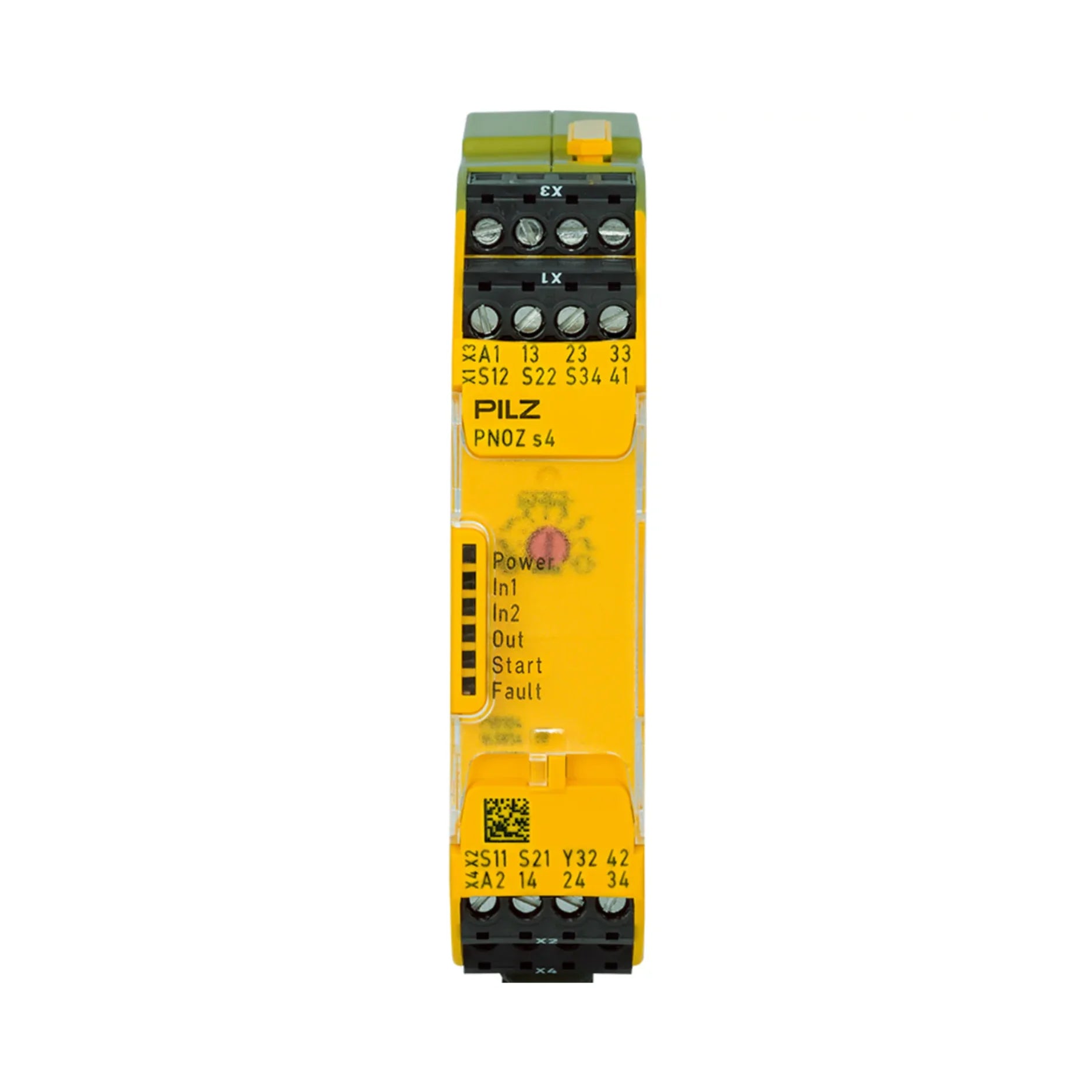

Pilz 750104

Overview

Elevate your industrial safety standards with the Pilz 750104 PNOZ s4 Safety Relay. Engineered by the trusted brand Pilz, this high-performance safety module is an indispensable component for critical safety monitoring applications. Whether safeguarding personnel, equipment, or processes, the PNOZ s4 provides robust and reliable oversight of emergency stop functions, safety gates, and protective light curtains. Its sophisticated design integrates multiple safety outputs, guaranteeing rapid response times and meticulous fault detection, thereby ensuring the highest level of operational safety even in the most demanding hazardous environments. With its sturdy construction, intuitive LED diagnostics, and straightforward installation process, the PNOZ s4 stands out as a premier choice for industrial safety systems.

Key Features

• Emergency Stop & Safety Gate Monitoring: Provides immediate and safe interruption of circuits in critical situations.
• 3 Normally Open (N/O) Safety Contacts: Ensures exceptionally reliable safety control and redundancy.
• 1 Normally Closed (N/C) Auxiliary Contact: Offers convenient status monitoring for enhanced system oversight.
• Single & Dual-Channel Operation: Supports a wide range of wiring configurations to adapt to diverse applications.
• Automatic, Manual, & Monitored Start Options: Delivers flexible operational modes to suit specific safety protocols.
• Integrated LED Status Indicators: Provides real-time fault diagnostics for quick troubleshooting and minimal downtime.
• Expandable Design: Seamlessly compatible with PNOZsigma contact expansion modules for future-proof scalability.
• DIN Rail Mounting: Facilitates effortless installation and integration into existing industrial control panels.

Technical Specifications

• Model: 750104
• Series: PNOZ s4
• Supply Voltage: 24V DC
• Safety Outputs: 3 N/O Contacts
• Auxiliary Output: 1 N/C Contact
• Input Configuration: Single or Dual-Channel
• Power Consumption: 2.5W
• Housing Material: Industrial-grade plastic, ensuring durability and longevity
• Protection Rating:
  • Housing: IP40 (Protection against solid objects larger than 1mm)
  • Terminals: IP20 (Protection against solid objects larger than 12.5mm)
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Mounting Type: DIN Rail, for streamlined integration

Applications

• Industrial Automation Safety: Essential for ensuring safe machine shutdowns and maintaining operational integrity.
• Emergency Stop Circuit Monitoring: Provides immediate and reliable safety control in urgent situations.
• Safety Gate & Access Control: Significantly enhances operator protection by monitoring secured access points.
• Machine Safety & Hazard Prevention: Crucial for preventing unauthorized machine operation and mitigating risks.
• Manufacturing & Assembly Safety Systems: Guarantees compliance with stringent safety regulations and standards.
• Process Industry: Ideal for critical safety functions in chemical, pharmaceutical, and other process-driven environments.

Why Choose the Pilz 750104 PNOZ s4?

The Pilz 750104 PNOZ s4 Safety Relay embodies reliability, efficiency, and advanced safety technology. As a certified solution for diverse industrial safety applications, it delivers peace of mind and operational continuity. Its ability to support multiple wiring configurations provides unparalleled flexibility, allowing for seamless integration into a wide array of automation systems. Designed for durability and compactness, this unit is not only easy to install but also highly efficient, promising long-term performance with minimal maintenance. By choosing the PNOZ s4, you're investing in a superior safety solution that meets and exceeds industry standards, protecting your assets and personnel with unwavering performance. Pilz's commitment to innovation ensures that this safety relay is at the forefront of industrial safety technology, offering a smart, secure, and sustainable safety solution for your business.

Order Now

Secure your operations with the Pilz 750104 PNOZ s4 Safety Relay. Take advantage of our fast shipping options and worldwide delivery to get this essential safety component to your facility without delay. Enhance your safety infrastructure today by adding this high-performance relay to your system.
