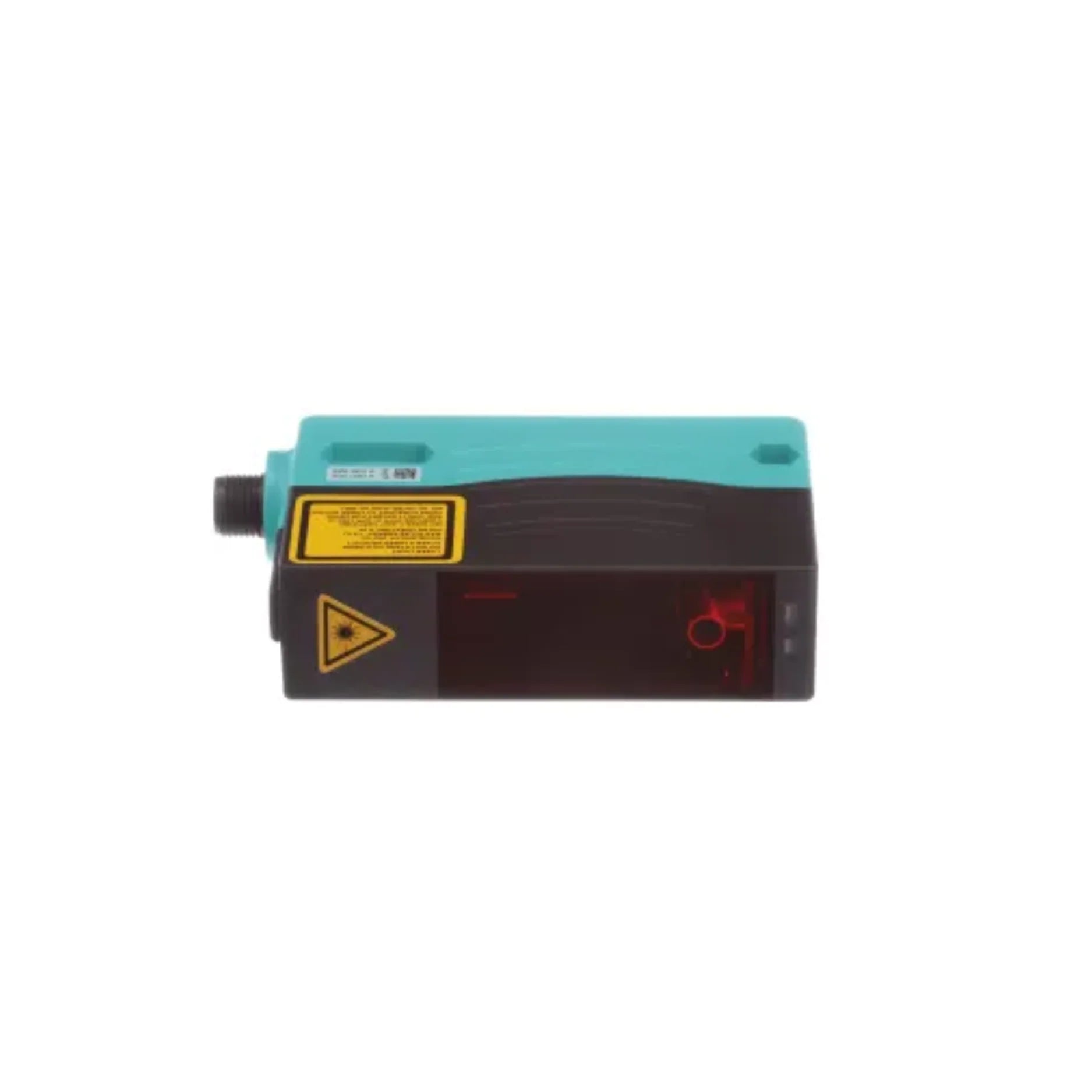

Pepperl+Fuchs VDM28-8-L1-IO/73C/110/122

Overview

The Pepperl+Fuchs VDM28-8-L1-IO/73C/110/122 is a cutting-edge laser distance sensor engineered for unparalleled precision in diverse industrial environments. Utilizing advanced Pulse Ranging Technology (PRT), this compact Class 1 laser sensor delivers fast, highly accurate, and repeatable non-contact measurements across an 8-meter range. It is an ideal solution for critical applications requiring robust performance and seamless integration, including sophisticated automation, meticulous positioning, and reliable level detection.

Beyond its exceptional measurement capabilities, the VDM28-8-L1-IO/73C/110/122 offers versatile connectivity with integrated analog (4–20 mA) and PNP digital outputs. Furthermore, it incorporates IO-Link communication, unlocking advanced diagnostic functionalities, simplified parameterization, and enhanced system integration. This combination of precision, speed, and intelligent communication ensures optimal operational efficiency and reduced downtime for your critical processes.

Key Features

• Extended Measuring Range: Precisely measures distances from 0.2 to 8 meters.
• High-Visibility Laser: Equipped with a Class 1 red laser diode (660 nm) for safe and accurate targeting.
• Dual Output Versatility: Features both 4–20 mA analog and push-pull (PNP, 100 mA max) digital outputs for flexible system integration.
• Advanced IO-Link Communication: Supports IO-Link V1.0 for intelligent data exchange, diagnostics, and remote configuration.
• Exceptional Accuracy: Delivers high measurement accuracy of ±25 mm.
• Superior Repeatability: Ensures consistent results with a repeat accuracy of less than 5 mm.
• Rapid Response Time: Achieves measurements in less than 30 ms, suitable for dynamic applications.
• Robust Connectivity: Utilizes a standard 4-pin M12 connector for secure and reliable hook-up.
• Industrial-Grade Protection: Boasts an IP67 rating, guaranteeing protection against dust and water ingress.
• Wide Operating Voltage: Compatible with 10–30 V DC power supplies.
• Broad Temperature Range: Operates reliably in temperatures from -30°C to +55°C.

Technical Specifications

• Model: VDM28-8-L1-IO/73C/110/122
• Sensing Technology: Pulse Ranging Technology (PRT)
• Measurement Range: 0.2 m to 8 m
• Light Source: Red Laser Diode, 660 nm
• Laser Class: 1 (according to EN 60825-1:2014)
• Analog Output: 4–20 mA
• Digital Output: Push-pull (PNP), Max. 100 mA
• Communication Interface: IO-Link V1.0
• Accuracy: ±25 mm
• Repeat Accuracy: <5 mm
• Response Time: <30 ms
• Connection Type: M12 connector, 4-pin
• Protection Rating: IP67
• Operating Voltage: 10–30 V DC
• Current Consumption: Typically 70 mA at 24 V DC
• Housing Material: PC/ABS
• Indicator LEDs: Power, Switch state, IO-Link active
• Operating Temperature: -30°C to +55°C (-22°F to +131°F)
• Storage Temperature: -40°C to +70°C (-40°F to +158°F)
• Dimensions: 99 mm x 28 mm x 53 mm (L x W x H)

Applications

• Precision Level Measurement: Accurately monitor levels of liquids, bulk solids, and powders in tanks and silos, preventing overfills and ensuring consistent material flow.
• Automated Storage and Retrieval Systems (AS/RS): Facilitate precise positioning of objects, pallets, and robotic shuttles within warehouses, enhancing efficiency and minimizing errors.
• Packaging and Logistics: Optimize sorting, sizing, and detection of packages on conveyor belts, improving throughput and reducing manual intervention.
• Robotics and Automation: Enable collaborative robots and automated machinery to perform safe and accurate object distance control, navigation, and collision avoidance.
• Material Handling: Ensure proper alignment and spacing of components in manufacturing processes, such as coil diameter measurement or web tension control.
• Door and Gate Control: Provide reliable presence detection and safety for industrial doors, gates, and movable machine parts.

Why Choose This Model?

The Pepperl+Fuchs VDM28-8-L1-IO/73C/110/122 stands out as a superior choice for demanding industrial applications due to its robust feature set and intelligent design:

• Unmatched Versatility: The combination of analog and digital outputs, alongside IO-Link, offers unparalleled flexibility for integration into almost any control system, minimizing compatibility concerns.
• Rugged and Reliable: Engineered with a compact yet durable housing and an IP67 protection rating, this sensor withstands harsh industrial environments, ensuring long-term operational reliability and reducing maintenance costs.
• Superior Measurement Performance: Leveraging Pulse Ranging Technology (PRT), the VDM28-8-L1-IO/73C/110/122 delivers exceptional accuracy and repeatability, even in challenging conditions such as varying ambient light or dusty environments, ensuring consistent and precise data for critical decisions.
• Intelligent Connectivity: IO-Link V1.0 support provides more than just data; it enables advanced diagnostics, remote parameterization, and condition monitoring, empowering predictive maintenance strategies and simplifying sensor management.
• Optimized for Efficiency: Its fast response time and precise measurements contribute to increased throughput and reduced waste in automated processes, directly impacting your bottom line.

Order Now

Elevate your industrial automation with the advanced capabilities of the Pepperl+Fuchs VDM28-8-L1-IO/73C/110/122 laser distance sensor. Engineered for precision, built for reliability, and optimized for intelligent integration, this sensor is ready to enhance the efficiency and accuracy of your operations. Secure your competitive edge by deploying a solution that delivers consistent performance and critical data for your most demanding applications.

The VDM28-8-L1-IO/73C/110/122 is in stock and available for fast shipment. Contact us today or place your order directly to experience the difference advanced laser measurement technology can make.
