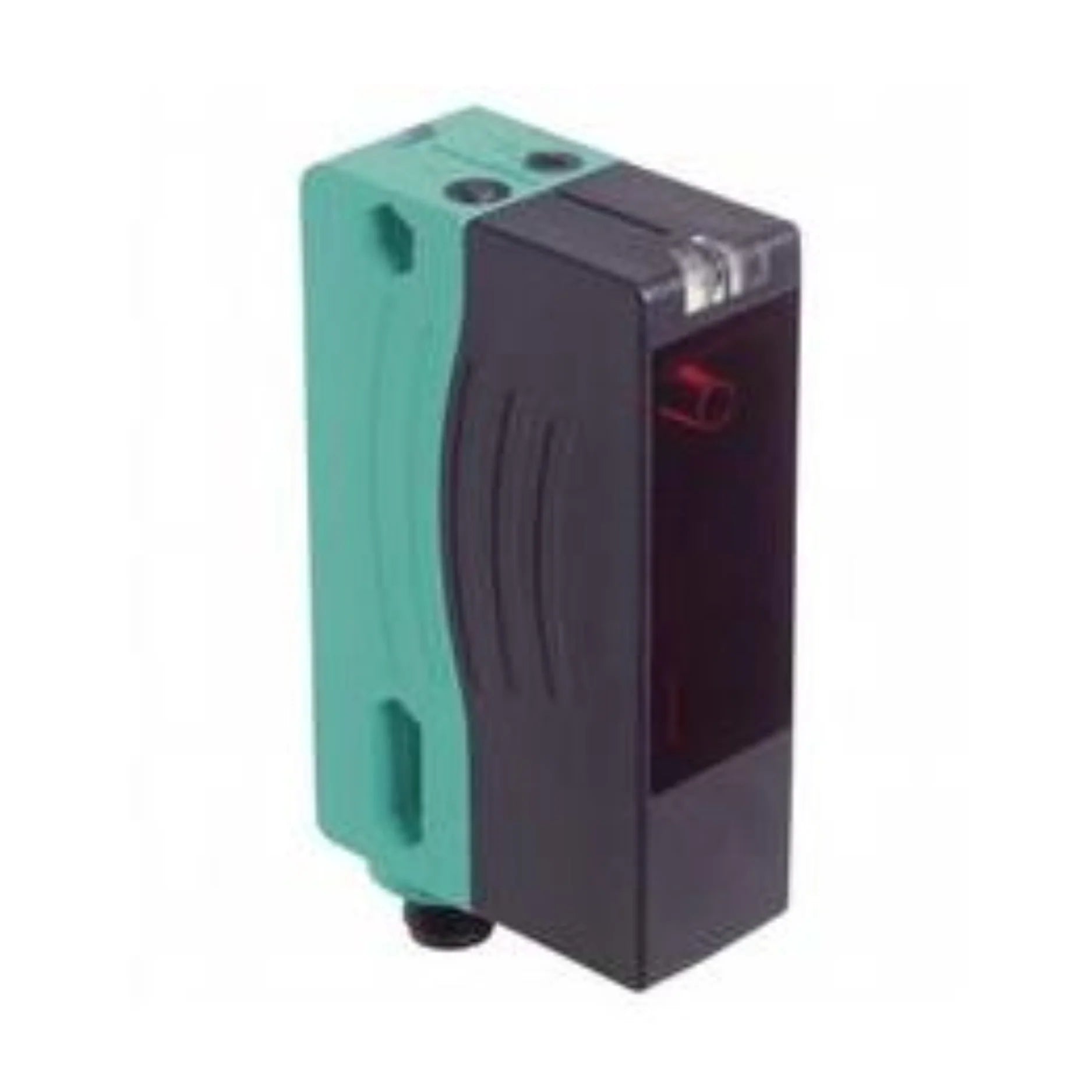

Pepperl+Fuchs VDM28-50-R1-IO/73C/110/122

Overview

Elevate your industrial automation with the Pepperl+Fuchs VDM28-50-R1-IO/73C/110/122, a state-of-the-art laser distance sensor engineered for unparalleled accuracy and reliability. This high-precision device leverages advanced Pulse Ranging Technology (PRT) to deliver consistent and reproducible measurements across distances up to 50 meters. Designed for seamless integration into modern industrial environments, its IO-Link interface facilitates effortless communication, making it an indispensable component for applications demanding exact distance measurement and robust object detection. The compact yet durable housing ensures optimal performance even in challenging conditions, providing a robust solution for a wide array of industrial demands.

Key Features

• Extended Measuring Range: Confidently measure distances from 0.2 to an impressive 50 meters, offering versatility for various application scenarios.
• Pioneering Measurement Method: Utilizes cutting-edge Pulse Ranging Technology (PRT) for superior accuracy and unwavering reliability in all measurement tasks.
• Precision Light Source: Equipped with a Class 1 red laser diode (660 nm), ensuring safe and highly focused light emission for pinpoint accuracy.
• Advanced Connectivity: Features an IO-Link V1.0 interface for intelligent communication and an analog output (4–20 mA) for flexible integration options.
• Configurable Output Type: Offers a versatile push-pull output (PNP/NPN configurable), adapting effortlessly to diverse control system requirements.
• Robust Connection: Incorporates a reliable M12, 4-pin connector for secure and stable electrical connections in demanding industrial settings.
• Unyielding Housing: Housed in a compact plastic design with an IP67 protection rating, guaranteeing resilience against dust and water ingress.
• Intuitive Indicators: Provides clear operational feedback with a green LED for power, yellow LEDs for switching states, and a user-friendly Teach-In function for quick setup.

Technical Specifications

• Model Number: VDM28-50-R1-IO/73C/110/122
• Measuring Range: 0.2 to 50 meters (achieved with OFR-100/100 reflector)
• Absolute Accuracy: Exceptional precision with an absolute accuracy of ±25 mm.
• Repeat Accuracy: Demonstrates consistent performance with a repeat accuracy of less than 5 mm.
• Supply Voltage: Operates efficiently within a 10–30V DC range (18–30V DC in IO-Link mode) for broad compatibility.
• Current Consumption: Optimized power usage at ≤70 mA at 24V DC.
• Switching Frequency: High-speed operation with a switching frequency of 50 Hz.
• Response Time: Rapid response time of 10 ms for real-time application feedback.
• Operating Temperature: Engineered for extreme conditions, functioning flawlessly from -30°C to +55°C.
• Protection Class: IP67 rated, providing superior protection against environmental elements.
• Dimensions: Compact form factor measuring 88 mm (H) x 25.8 mm (W) x 54.6 mm (D), ideal for space-constrained installations.
• Weight: Lightweight design at only 90 g for easy handling and installation.
• Certifications: Compliant with CE and cULus standards, ensuring global market acceptance and safety.

Applications

• Object Identification and Classification: Precisely discern the presence and characteristics of products on fast-moving production lines.
• Advanced Positioning Systems: Facilitate highly accurate control for automated positioning and guidance systems.
• Optimized Level Measurement: Reliably monitor fill levels in storage tanks, silos, and hoppers, preventing overfills and shortages.
• Enhanced Collision Avoidance: Integrate into automated guiding vehicles (AGVs) and other mobile robotics for superior safety and operational integrity.
• Detailed Compartment Occupancy Checks: Efficiently verify the occupancy status within automated storage and retrieval systems.
• Automated Stack Height Control: Maintain consistent and uniform stack heights in warehousing and logistics operations.
• Precise Coil Measurement: Accurately assess the dimensions of coiled materials for quality control and inventory management.
• Critical Dip Monitoring: Continuously monitor dips in material surfaces, ensuring process stability and product quality.
• Accurate Lift Height Checks: Guarantee precise lift heights in material handling equipment for safe and efficient operations.
• Reliable Vehicle Detection: Implement robust vehicle detection for traffic management, parking systems, and access control.
• Clearance Measurement in Restricted Areas: Accurately measure height clearances in tunnels and entrances to prevent costly collisions.
• Comprehensive Anti-Collision Protection: Provide essential safeguarding for AGVs, forklifts, and other critical mobile equipment in dynamic industrial environments.

Why Choose This Model?

The Pepperl+Fuchs VDM28-50-R1-IO/73C/110/122 stands out as a premier choice for demanding industrial applications due to its unparalleled combination of features and performance. Its exceptional high precision guarantees accurate measurements with minimal deviation, critical for maintaining tight tolerances in manufacturing and logistics. The integration of advanced Pulse Ranging Technology (PRT) provides reliable and consistent distance measurement, ensuring operational continuity and data integrity. With its flexible IO-Link integration, this sensor seamlessly communicates with diverse control systems, simplifying installation and enabling advanced diagnostic capabilities. Furthermore, its robust and compact design, fortified with an IP67 rating, ensures dependable operation even in the harshest industrial conditions. The user-friendly operation, highlighted by an intuitive Teach-In function and clear status indicators, makes setup and monitoring straightforward, reducing commissioning time and maintenance efforts. Opt for the VDM28-50-R1-IO/73C/110/122 for a future-proof solution that delivers superior performance, durability, and ease of use.

Order Now

Secure your competitive edge with the Pepperl+Fuchs VDM28-50-R1-IO/73C/110/122 laser distance sensor. This high-performance device is available for immediate worldwide shipping, ready to optimize your industrial processes. Don't miss the opportunity to integrate this advanced sensor into your operations for enhanced precision, reliability, and efficiency. Place your order today and experience the difference that Pepperl+Fuchs quality brings to your automation challenges.
