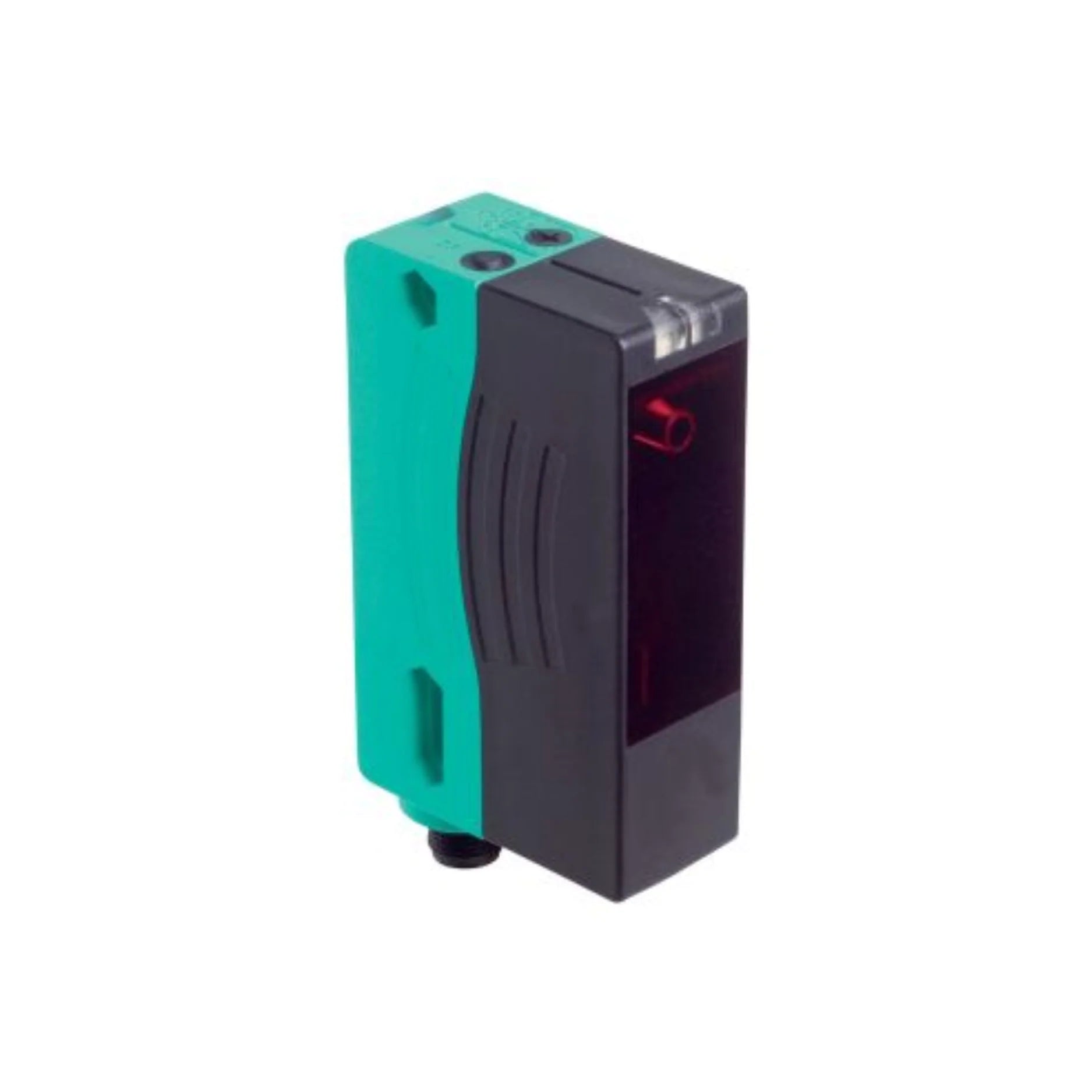

Pepperl+Fuchs VDM28-15-L1-IO/73C/110/122

Overview

Elevate your industrial automation with the Pepperl+Fuchs VDM28-15-L1-IO/73C/110/122, a state-of-the-art 15m laser distance sensor engineered for superior performance in demanding environments. This versatile sensor is adept at precise object detection and distance measurement, leveraging cutting-edge Pulse Ranging Technology (PRT) to ensure consistently accurate and reproducible results. Designed for seamless integration, it features both analog (4–20 mA) and digital (push-pull) outputs, alongside an advanced IO-Link interface. This comprehensive connectivity allows for effortless incorporation into modern control systems, making it an indispensable component for optimizing efficiency and reliability across a multitude of industrial applications.

Key Features

• Extended Measuring Range: Accurately detect objects and measure distances from 0.2 meters up to an impressive 15 meters.
• Pulse Ranging Technology (PRT): Experience industry-leading precision and reliability, even in challenging conditions, thanks to advanced PRT measurement.
• Eye-Safe Laser: Utilizes a modulated visible red laser diode (660 nm) classified as Class 1, ensuring safe operation without special precautions.
• Flexible Outputs: Equipped with both a 4–20 mA analog output (short-circuit and overload protected) and a robust push-pull digital output (short-circuit and reverse polarity protected) for versatile control options.
• IO-Link Connectivity: Seamlessly integrate into cutting-edge automation infrastructures with the IO-Link V1.0 interface (COM2, 38.4 kBit/s) offering a 16-bit process data width.
• Rapid Response: Benefit from a quick response time of just 10 ms and a switching frequency of 50 Hz, ideal for high-speed applications.
• Simplified Setup: The integrated Teach-In function significantly eases configuration and commissioning.
• Clear Indicators: Intuitive Green LED for operation, two yellow LEDs for switching status, and dynamic green/yellow LED flashing patterns for Teach-In status provide immediate visual feedback.
• Intuitive Control: Easily adjust operating modes and threshold settings via a convenient 5-step rotary switch.

Technical Specifications

• Operating Voltage: Optimal operation with 10–30 V DC in Standard Mode and 18–30 V DC in IO-Link Mode.
• No-Load Supply Current: Highly efficient with ≤ 70 mA at 24 V DC.
• Availability Time: Rapid power-up in less than 1.5 seconds at 20 °C.
• Measurement Accuracy: Exceptional precision with an absolute accuracy of ±25 mm and a repeat accuracy of less than 5 mm.
• Ambient Light Immunity: Maintains reliable performance even in bright conditions, up to 50,000 Lux.
• Temperature Resilient: Operates flawlessly across a wide ambient temperature range of -30 °C to +55 °C (-22 °F to +131 °F) and stores safely from -30 °C to +70 °C (-22 °F to +158 °F).
• Robust Protection: IP67-rated enclosure ensures protection against dust and water ingress, making it suitable for harsh environments.
• Secure Connection: Features a reliable 4-pin M12 x 1 connector for easy and secure wiring.
• Durable Construction: Housing crafted from high-quality ABS plastic with an optical face of PMMA, ensuring longevity.
• Compact Dimensions: Space-saving design with dimensions of 88 × 25.8 × 54.6 mm allows for flexible mounting.
• Lightweight: Weighing approximately 90 g, it adds minimal load to your systems.
• Certifications: Complies with international standards including CE, cULus Listed, UKCA, and FDA (IEC 60825-1:2014).

Applications

The Pepperl+Fuchs VDM28-15-L1-IO/73C/110/122 laser distance sensor is a highly adaptable solution for a diverse array of industrial applications, providing accurate and dependable measurement for enhanced operational efficiency. Its robust design and versatile features make it an ideal choice for:

• Material Handling Systems: Optimizing conveyor lines and automated storage and retrieval systems with precise object detection.
• Packaging Machinery: Ensuring accurate product positioning and fill levels for consistent packaging.
• Conveyor Systems: Monitoring product flow, spacing, and presence on various types of conveyors.
• Automated Assembly Lines: Guiding robotic arms and ensuring correct component placement.
• Level Measurement: Accurately determining fill levels in tanks, hoppers, and silos.
• Positioning Tasks: Providing exact positioning data for machinery and robotic equipment.
• Industrial Robotics: Enhancing robot navigation, collision avoidance, and precise manipulation.

Why Choose This Model?

The Pepperl+Fuchs VDM28-15-L1-IO/73C/110/122 stands out as a premier choice for industrial distance measurement due to a confluence of advanced features and robust engineering:

• Unrivaled Precision: Experience highly accurate distance measurement up to 15 meters with minimal deviation, guaranteeing reliable data for critical operations.
• Exceptional Versatility and Integration: With support for both analog and digital outputs, coupled with seamless IO-Link communication, this sensor offers unparalleled flexibility for integration into any modern automation architecture.
• Built-to-Last Robust Design: An IP67-rated housing provides superior protection against dust and water, ensuring unwavering durability and consistent performance even in the most challenging industrial environments.
• Compact and Efficient Size: Its small footprint facilitates easy installation in confined spaces, making it an ideal solution where space is at a premium without compromising performance.
• User-Centric Design: The intuitive Teach-in function combined with clear LED indicators simplifies setup, configuration, and diagnostics, reducing commissioning time and maintenance efforts.
• Consistent, Reliable Performance: Engineered to maintain its high level of accuracy and functionality across varying ambient light conditions and extreme temperatures, ensuring dependable operation day in and day out.

Order Now

Ready to enhance the precision and efficiency of your industrial operations? Invest in the Pepperl+Fuchs VDM28-15-L1-IO/73C/110/122 15m Laser Distance Sensor today. Contact our sales team or visit our website to place your order and experience the difference that superior German engineering can make in your automation systems. Our experts are available to assist you with selection and integration to ensure optimal performance for your specific application.
