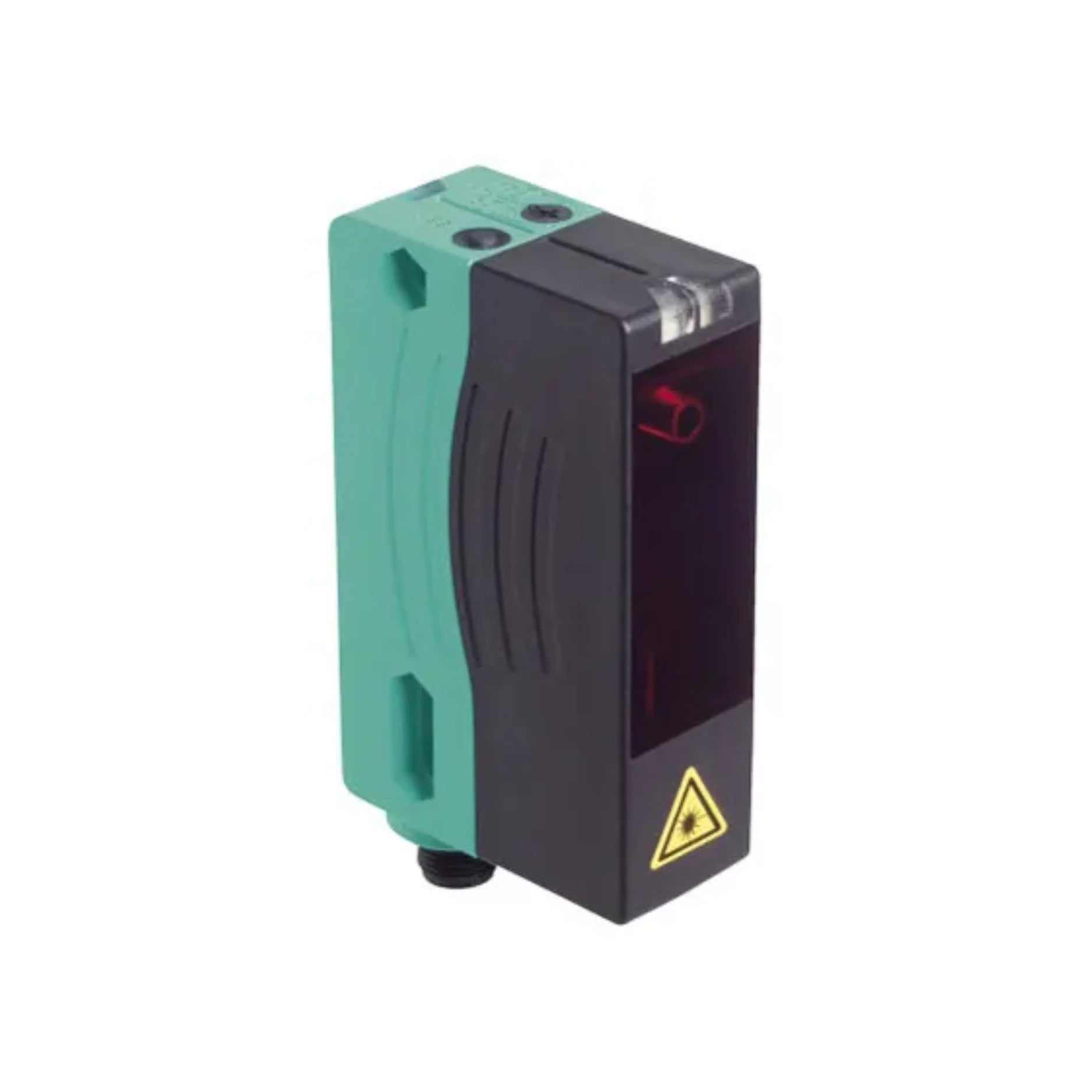

Pepperl+Fuchs VDM28-15-L-IO/73C/110/122

Overview

The Pepperl+Fuchs VDM28-15-L-IO/73C/110/122 is a cutting-edge 15m laser distance sensor engineered for unparalleled precision and reliability in demanding industrial environments. Utilizing advanced Pulse Ranging Technology (PRT), this compact sensor delivers accurate measurements across a 0.2 to 15-meter range. Its versatile output options, including analog 4–20 mA, PNP switching, and seamless IO-Link communication, ensure flexible integration into a wide array of automation systems. Designed for applications where unerring accuracy and robust performance are paramount, the VDM28-15-L-IO/73C/110/122 stands as a testament to German engineering excellence.

Key Features

• Extended Measuring Range: Precisely detect objects from 0.2 meters up to an impressive 15 meters.
• Advanced Pulse Ranging Technology (PRT): Ensures superior accuracy and reliability even in challenging conditions.
• Flexible Output Options:
• Analog Output: Configurable 0/4–20 mA for continuous distance monitoring.
• Digital Output: Reliable PNP switching output for presence and position detection.
• IO-Link V1.0 Interface: Facilitates intelligent communication, advanced diagnostics, and simplified parameterization.
• Eye-Safe Laser: Equipped with a Class 1 red laser diode (660 nm) for safe operation and effortless alignment.
• High Precision: Achieves an absolute accuracy of ±25 mm and a remarkable repeat accuracy of <5 mm.
• Rapid Response Time: Delivers measurements with an expedited 10 ms response time for real-time applications.
• Robust Connectivity: Features a durable 4-pin M12 plug connector for secure and reliable hook-up.
• Industrial-Grade Protection: IP67 rated housing ensures optimal performance in harsh and challenging industrial environments.
• Wide Operating Voltage: Compatible with 10–30 V DC power supplies.
• Broad Operating Temperature: Functions flawlessly in temperatures ranging from -30°C to +55°C.

Technical Specifications

• Model: VDM28-15-L-IO/73C/110/122
• Technology: Pulse Ranging Technology (PRT)
• Measuring Range: 0.2 – 15 meters
• Emitted Light: Red laser diode, 660 nm
• Laser Class: 1 (eye safe)
• Absolute Accuracy: ±25 mm
• Repeat Accuracy: <5 mm
• Response Time: 10 ms
• Analog Output: 0/4–20 mA
• Digital Output: PNP switching
• Interface: IO-Link V1.0
• Connector: 4-pin M12 plug
• Operating Voltage: 10–30 V DC
• Current Consumption: Max. 70 mA
• Protection Rating: IP67
• Ambient Light Resistance: Up to 50,000 Lux
• Housing Material: High-strength plastic
• Operating Temperature: -30°C to +55°C
• Storage Temperature: -40°C to +70°C
• Status Indicators: Multi-color LEDs for power, switching status, and signal strength.

Applications

The versatility and precision of the Pepperl+Fuchs VDM28-15-L-IO/73C/110/122 make it ideal for a diverse range of industrial applications, enhancing efficiency and accuracy across various sectors:

• Material Handling & Warehousing: Perfect for precise detection and positioning of boxes, pallets, and other goods on conveyors or during automated storage and retrieval.
• Packaging & Conveying Systems: Ensures accurate product spacing, presence detection, and fill-level monitoring for optimized packaging lines.
• Assembly Lines: Critical for precise object positioning, component verification, and robotic guidance in automated assembly processes.
• OEM Machines: Seamless integration with IO-Link communication provides smart diagnostics, predictive maintenance capabilities, and streamlined data exchange for advanced machinery.
• Automotive Manufacturing: Reliable for precise positioning and quality control in various stages of vehicle production.
• Logistics: Enhances efficiency in sorting, counting, and inventory management systems.

Why Choose This Model?

The Pepperl+Fuchs VDM28-15-L-IO/73C/110/122 is more than just a sensor; it's a strategic investment in accuracy, reliability, and future-proof automation. Here’s why it stands out:

• Unmatched 15m Long-Range Precision: Achieves exceptional accuracy over long distances within a remarkably compact form factor, saving valuable space.
• Dual Output for Ultimate Flexibility: The combination of analog (0/4–20 mA) and digital (PNP) outputs allows for seamless integration into virtually any control system, offering unparalleled versatility.
• IO-Link Enabled for Smart Automation: Leverage the full potential of Industry 4.0 with IO-Link – enabling advanced diagnostics, remote parameter adjustments, and predictive maintenance for reduced downtime.
• Built to Endure: With an IP67 protection rating, this sensor is designed to withstand harsh industrial environments, including dust, dirt, and moisture, ensuring consistent performance.
• Effortless Alignment: The visible Class 1 red laser beam simplifies installation and alignment, significantly reducing setup time and effort.
• Trusted Brand Quality: Pepperl+Fuchs is renowned for its commitment to quality and innovation, ensuring you receive a product engineered for long-term reliability.

Order Now

Elevate the precision and efficiency of your industrial applications with the Pepperl+Fuchs VDM28-15-L-IO/73C/110/122 15m Laser Distance Sensor. Experience the convergence of advanced technology, robust design, and flexible integration. This high-performance sensor is available for fast shipping, ready to be deployed in your most demanding operations. Secure your competitive advantage today by ordering the VDM28-15-L-IO/73C/110/122 and transform your automation capabilities.
