Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L

Overview

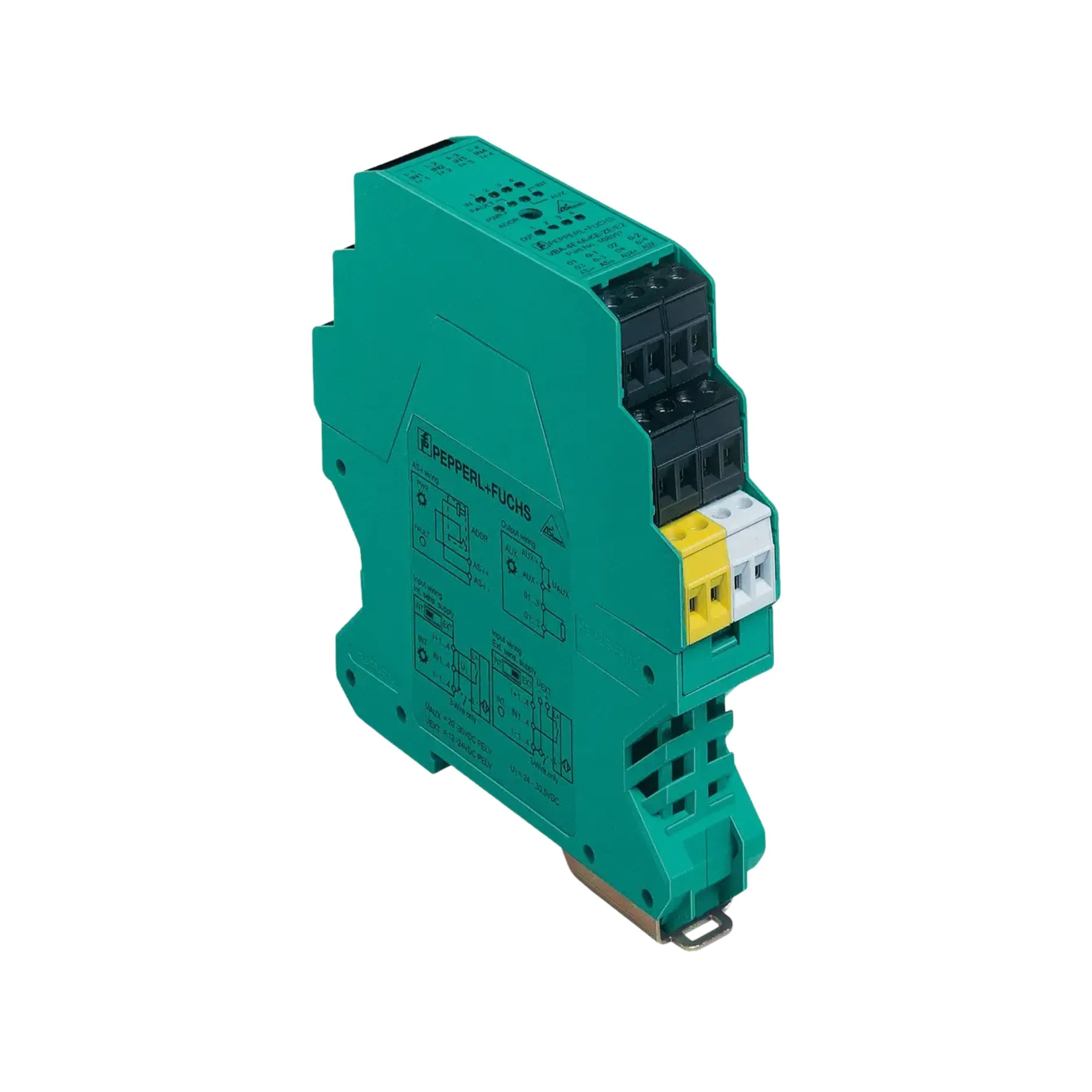

The Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L is a cutting-edge compact AS-Interface sensor/actuator module engineered to deliver unparalleled efficiency in integrating a diverse range of sensors and actuators into your AS-Interface networks. This robust module is an ideal solution for modern industrial automation, providing seamless communication and control. Its intelligent design incorporates 4 dedicated inputs, accommodating both 2- and 3-wire sensors, alongside 4 powerful electronic outputs, guaranteeing steadfast performance across various applications. Encased in a remarkably slim 22.5 mm housing, this module is specifically designed for space-saving DIN rail mounting, making it an excellent choice for optimizing control cabinet real estate without compromising on functionality or reliability.

Key Features

• Versatile Inputs: Equipped with 4 channels, meticulously designed for compatibility with both 2-wire and 3-wire PNP sensors. Benefit from flexible power supply options, including internal power derived directly from the AS-Interface and external auxiliary power supply capabilities.
• High-Performance Outputs: Features 4 electronic PNP outputs, each capable of independently handling up to 2 A. These outputs are fortified with essential overload and short-circuit protection, ensuring the longevity and reliability of your connected actuators.
• Simplified Wiring and Maintenance: Experience hassle-free installation and upkeep thanks to intelligently designed removable terminals, which are both mechanically secure and color-coded for intuitive wiring.
• Reliable Communication Monitoring: Integrated communication monitoring actively safeguards data transmission integrity, providing continuous assurance of network reliability.
• Effortless Addressing: An integrated addressing jack streamlines the process of assigning unique addresses to the module within the AS-Interface network, simplifying system setup and configuration.
• Flexible Sensor Power: A convenient switch allows for selection of the sensor power supply, offering the choice between the module's internal supply and an external auxiliary voltage, adapting to your specific application requirements.
• Comprehensive Diagnostic LEDs: Vital visual feedback is provided through an array of diagnostic LEDs, clearly indicating the status of bus communication, auxiliary voltage, sensor supply, as well as the operational state of individual inputs and outputs.
• Advanced Lead Breakage Detection: Enhance system diagnostics with switchable lead breakage detection for outputs, providing critical insights into potential wiring issues and minimizing downtime.

Technical Specifications

• Model Number: VBA-4E4A-KE-ZEJQ/E2L
• Node Type: A/B node
• AS-Interface Specification: V3.0
• Profile: S-7.A.7
• IO Code: 7
• ID Code: A
• ID1 Code: 7
• ID2 Code: 7
• Operating Voltage: 26.5 to 31.6 V from AS-Interface
• Operating Current: ≤ 35 mA (without sensors); max. 190 mA
• Auxiliary Voltage (Input): 12 to 30 V DC (PELV)
• Auxiliary Voltage (Output): 20 to 30 V DC (PELV)
• Input Voltage: 21 to 31 V DC (internal supply)
• Input Current: ≤ 9 mA
• Output Current: Up to 2 A per output; total up to 4 A (depending on ambient temperature and mounting)
• Protection Class: III
• Degree of Protection: IP20
• Ambient Temperature Range: -25°C to +60°C (-13°F to +140°F)
• Housing Material: PA 66-FR
• Dimensions: Height 99 mm, Width 22.5 mm, Length 102 mm
• Mounting: DIN rail
• Compliance: CE, cULus Listed

Applications

The Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L module is exceptionally versatile, making it an indispensable component across a broad spectrum of industrial applications, including:

• Factory Automation: Seamlessly integrate a variety of sensors and actuators into complex AS-Interface networks, enabling precise and streamlined control of automated processes.
• Material Handling Systems: Effectively manage inputs from conveyor belt sensors and accurately control outputs to sorting mechanisms, enhancing the efficiency of material movement and logistics.
• Packaging Machinery: Ensure coordinated operation by precisely managing sensor inputs and actuator outputs in high-speed and intricate packaging processes, optimizing production lines.
• Process Control: Facilitate robust data acquisition and meticulous control in diverse industrial processes, contributing to improved operational stability and product quality.

Why Choose This Model?

Opting for the Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L AS-Interface module means investing in a solution that offers superior performance, reliability, and space efficiency for your industrial automation needs. Its array of benefits makes it a standout choice:

• Space-Saving Design: The remarkably slim 22.5 mm width of this module is specifically engineered to conserve crucial space within your control cabinets, allowing for more compact system designs and greater installation flexibility.
• Flexible Sensor Integration: With support for both 2-wire and 3-wire sensors, coupled with selectable internal or external power supply options, this module provides unparalleled adaptability to various sensor technologies and application requirements.
• Robust and Protected Outputs: The electronic outputs are not only powerful, capable of handling up to 2 A, but also come with integrated overload and short-circuit protection, guaranteeing reliable and safe actuator control while extending the lifespan of your equipment.
• Enhanced System Diagnostics: Benefit from comprehensive diagnostic capabilities, including intuitive LED indicators for various operational states and communication monitoring. This ensures early detection of issues, minimizing downtime and simplifying troubleshooting.
• Ease of Installation and Maintenance: The inclusion of removable, color-coded terminals significantly simplifies wiring processes and facilitates quick, straightforward maintenance, reducing installation time and operational disruptions.
• Trusted Brand Quality: As a product from Pepperl+Fuchs, a leader in industrial sensor technology, you receive a module built to the highest standards of quality, reliability, and performance.

Order Now

Elevate your industrial automation system with the advanced capabilities of the Pepperl+Fuchs VBA-4E4A-KE-ZEJQ/E2L AS-Interface module. Experience enhanced efficiency, reliability, and precision in your operations. Contact us today or visit our website to secure this essential component for your next project. Invest in Pepperl+Fuchs innovation and optimize your control systems.
