Pepperl+Fuchs VAZ-2T1-FK-G10-1M-PUR-V1-G

Overview

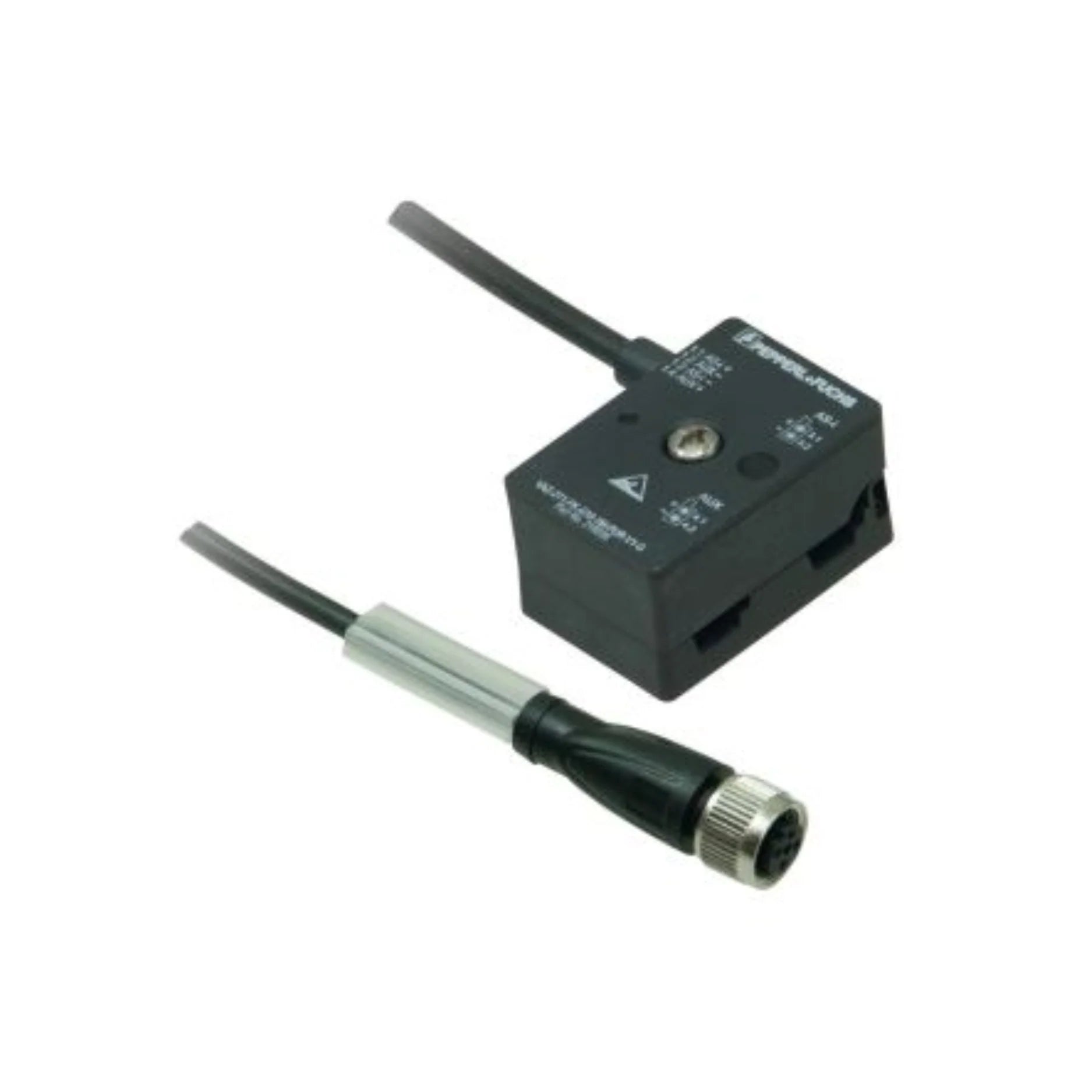

The Pepperl+Fuchs VAZ-2T1-FK-G10-1M-PUR-V1-G is an exceptionally robust AS-Interface splitter box engineered for seamless and reliable integration into the most demanding industrial automation systems. This high-performance component ensures optimal signal distribution and power supply within AS-Interface networks, even in challenging environmental conditions. Featuring a pre-wired 1-meter PUR cable and a secure M12 connector, this splitter box guarantees reliable operation and simplifies installation. Its superior construction and design deliver unparalleled protection, with ratings up to IP69K, making it an ideal choice for applications requiring resistance to dust, water, and high-pressure cleaning processes.

Key Features

• Connector Type: M12 socket (V1), straight for secure and standardized connections.
• Cable Length: 1 m integrated PUR cable, offering immediate connectivity.
• Cable Material: High-quality Polyurethane (PUR), halogen-free, providing excellent flexibility and chemical resistance.
• Operating Voltage: Safe ≤ 60 V PELV (Protective Extra-Low Voltage) ensures operational safety.
• Operating Current: Efficient ≤ 3 A, suitable for various AS-Interface devices.
• Protection Class: Industry-leading IP67/IP68/IP69K ratings for ultimate resilience against dust, water immersion, and high-pressure/steam jet cleaning.
• Surge Protection: Overvoltage category III, safeguarding connected equipment from electrical surges.
• Mounting: Designed for screw-on installation with stainless steel screws (not included) for durable fastening.
• Housing Material: Constructed from PBT PC for enhanced durability and resistance.
• Contact Material: Gold-plated CuSn contacts ensure superior conductivity and long-term signal integrity.
• Part Number: 216036 – easy identification and ordering.

Technical Specifications

• Ambient Temperature: Wide operating range from –25 °C to +75 °C (–13 °F to +167 °F).
• Storage Temperature: Broad storage conditions from –25 °C to +85 °C (–13 °F to +185 °F).
• Pollution Degree: Rated 3, indicating suitability for industrial environments with conductive contamination or dry, non-conductive contamination that becomes conductive due to condensation.
• Cable Sheath Diameter: Compact 4.3 mm for easy routing and installation.
• Cable Cores: 4 × 0.34 mm² providing reliable power and data transmission.
• Mass: Lightweight design, approximately 75 g, minimizing strain on mounting surfaces.
• Dimensions (H × W × L): Compact footprint of 22 mm × 27.7 mm × 40.5 mm for space-constrained applications.
• Tightening Torque (Fastening Screws): Recommended 1.65 Nm for secure installation.
• Compliance: UL Listed, Type 1 enclosure, ensuring adherence to rigorous safety standards; suitable for NFPA 79 applications.
• UL File Number: E223772 for validated certification.

Applications

• Industrial Automation Systems: Essential for efficient and reliable AS-Interface network expansion.
• Sensor and Actuator Integration: Facilitates seamless connection of sensors and actuators to the AS-Interface network.
• Packaging Machinery: Enhances performance and reliability in high-speed and demanding packaging lines.
• Conveyor Systems: Provides robust connectivity for control and monitoring in material transport systems.
• Material Handling Equipment: Ensures dependable operation in automated storage and retrieval systems.

Why Choose This Model?

The Pepperl+Fuchs VAZ-2T1-FK-G10-1M-PUR-V1-G AS-Interface Splitter Box stands out as a superior choice for your industrial automation needs. Its Robust Design ensures reliable connections and continuous performance in the most challenging industrial environments, from factories to processing plants. The inclusion of High Protection ratings (IP67/IP68/IP69K) provides unparalleled resistance to dust, water ingress, and even high-pressure washdowns, making it suitable for hygiene-critical and outdoor applications. This model also boasts exceptional Chemical Resistance, adeptly withstanding exposure to industrial oils, coolants, and various chemicals, which is crucial for longevity and reliability in harsh manufacturing settings. With its Flexible Installation capabilities, it's versatile enough for both fixed installations and applications requiring movement, adapting to your specific operational demands. Furthermore, by choosing this product, you benefit from the expertise of a Trusted Brand, Pepperl+Fuchs, a global leader renowned for its innovation, quality, and commitment to industrial automation solutions. This splitter box is not just a component; it's a guarantee of system integrity and operational efficiency.

Order Now

Elevate the reliability and performance of your industrial automation systems with the Pepperl+Fuchs VAZ-2T1-FK-G10-1M-PUR-V1-G AS-Interface Splitter Box. Experience the difference that premium quality, robust design, and unparalleled protection can make. Ensure seamless connectivity and optimal operation in even the most demanding environments. Add this essential component to your system today and secure your operational excellence.
