Pepperl+Fuchs V3-WM-5M-PUR

Overview

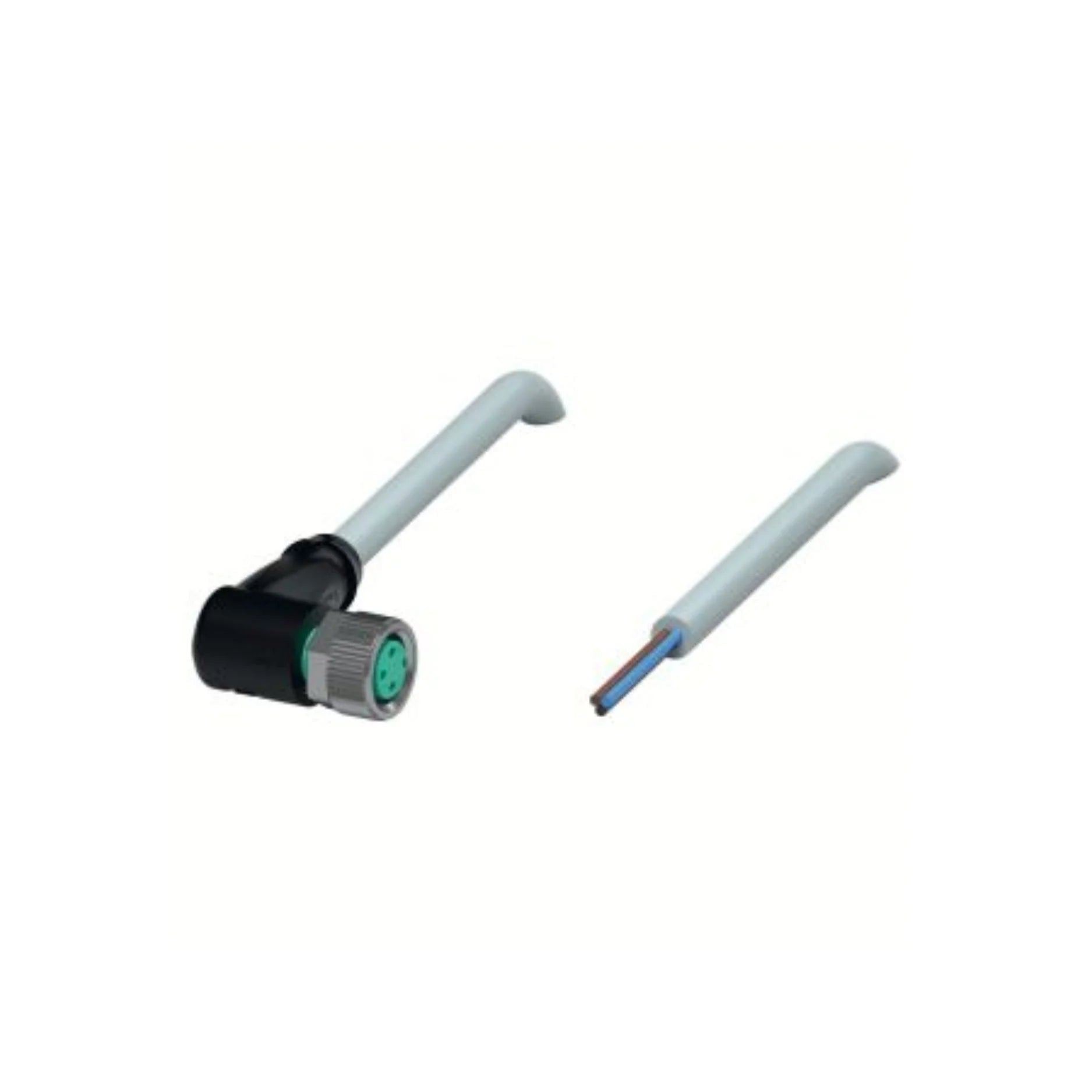

The Pepperl+Fuchs V3-WM-5M-PUR is an exceptionally robust M8 3-pin angled female cordset, meticulously engineered to deliver unwavering performance in the most demanding industrial settings. This premium cordset integrates an A-coded connector with a high-quality 5-meter PUR (Polyurethane) cable, offering superior resistance against common industrial hazards such as microbes, hydrolysis, and abrasive mechanical stress. Its halogen-free composition further enhances safety and environmental compliance, making it an ideal choice for diverse automation and control applications that require dependable and long-lasting connectivity solutions. Trust the V3-WM-5M-PUR for critical sensor and actuator connections in your operational infrastructure.

Key Features

• Connector Type: M8 female, angled, A-coded, ensuring correct and secure mating.
• Number of Pins: 3-pin configuration for standard industrial sensor and actuator connections.
• Cable Length: Generous 5 m length providing ample reach for various installations.
• Cable Material: High-grade Polyurethane (PUR), halogen-free, renowned for its durability, flexibility, and resistance to harsh industrial agents.
• Operating Voltage: Versatile operation up to 48 V AC / 60 V DC, accommodating a wide range of electrical requirements.
• Operating Current: Capable of handling up to 3 A, suitable for many industrial devices.
• Protection Class: IP68 rated, guaranteeing complete protection against dust ingress and continuous immersion in water under specified conditions.
• Temperature Range:
  • Plug Connector: Robust performance from –40 °C to +90 °C.
  • Cable (Fixed Installation): Reliable operation from –40 °C to +80 °C.
  • Cable (Flexing): Maintains integrity from –20 °C to +80 °C, crucial for dynamic applications.
• Mechanical Durability: Engineered for a minimum of 100 mating cycles, ensuring long-term usability.
• Compliance: Adheres to international standards IEC 61076-2-104 and IEC 60754-1, affirming quality and safety.
• Part Number: 109028

Technical Specifications

• Sheath Diameter: Optimized 4.3 mm for balanced strength and flexibility.
• Core Cross Section: 0.25 mm², ensuring efficient signal transmission.
• Core Colors: Standard brown, blue, black for easy identification during wiring.
• Bending Radius:
  • Fixed Installation: >8× cable diameter for stable routing.
  • Moving Installation: >15× cable diameter to prevent damage in dynamic setups.
• Drag Chain Suitability: Engineered for applications with:
  • Max. 50 cycles/day.
  • Max. motion velocity: 0.3 m/s.
• Connector Materials:
  • Screw Connection: Zinc diecast, nickel-plated, for secure and durable fastening.
  • Body: High-grade TPU, black, offering excellent chemical and abrasion resistance.
  • Seal: FKM, providing superior resistance to high temperatures and aggressive media.
  • Contact Surface: Gold-plated (Au) for optimal conductivity and corrosion resistance.
• Flammability Rating: V-2, indicating good flame retardancy.
• Cable Code: Li 9Y 11Y 3×0.25 for clear identification of cable type.
• Mass: Approximately 108.75 g, lightweight for reduced strain on connected components.

Applications

The Pepperl+Fuchs V3-WM-5M-PUR cordset is highly versatile and essential for reliable connectivity across numerous industrial sectors:

• Industrial Automation Systems: Providing critical links for control and data transfer.
• Sensor and Actuator Connections: Ensuring precise and uninterrupted operation of vital components.
• Packaging Machinery: Withstanding repetitive motion and environmental stresses common in packaging lines.
• Conveyor Systems: Maintaining consistent communication in material transport applications.
• Material Handling Equipment: Delivering robust connectivity for machinery in demanding logistics and handling environments.

Why Choose This Model?

The Pepperl+Fuchs V3-WM-5M-PUR stands out as a superior choice for your industrial connectivity needs due to its exceptional design and proven reliability:

• Robust Design: Engineered with premium materials, this cordset guarantees exceptionally reliable connections, even in the most challenging and harsh industrial environments, significantly reducing downtime and maintenance.
• High Protection (IP68 Rating): Its IP68 protection class provides unsurpassed resistance to both dust ingress and continuous water immersion. This makes it perfectly suited for wash-down areas and applications exposed to moisture, ensuring long-term operational integrity.
• Superior Chemical Resistance: The advanced PUR cable material and FKM seals offer formidable resistance to a wide array of industrial chemicals, oils, coolants, and cleaning agents. This crucial feature extends the product's lifespan and maintains performance in chemically aggressive settings.
• Flexible Installation: Designed specifically for versatility, the V3-WM-5M-PUR cordset is suitable for both fixed and highly flexing applications. Its excellent bending radius characteristics permit dynamic movements without compromising internal wiring or signal integrity, making it ideal for drag chains and robotic applications.
• Trusted Brand (Pepperl+Fuchs Quality): By choosing this cordset, you benefit from the unparalleled legacy and reputation of Pepperl+Fuchs, a global leader in industrial sensor technology and explosion protection. Every product is backed by decades of innovation, rigorous quality control, and a commitment to providing the most reliable solutions in industrial automation.

Order Now

Enhance the reliability and efficiency of your industrial automation systems with the Pepperl+Fuchs V3-WM-5M-PUR M8 3-pin angled female cordset. Its superior construction, combined with its robust environmental protection and flexible application capabilities, makes it an indispensable component for maintaining continuous operation. Ensure optimal performance and durability in your critical connections. Order the Pepperl+Fuchs V3-WM-5M-PUR (Part Number: 109028) today to experience the difference of a truly industrial-grade connectivity solution.
