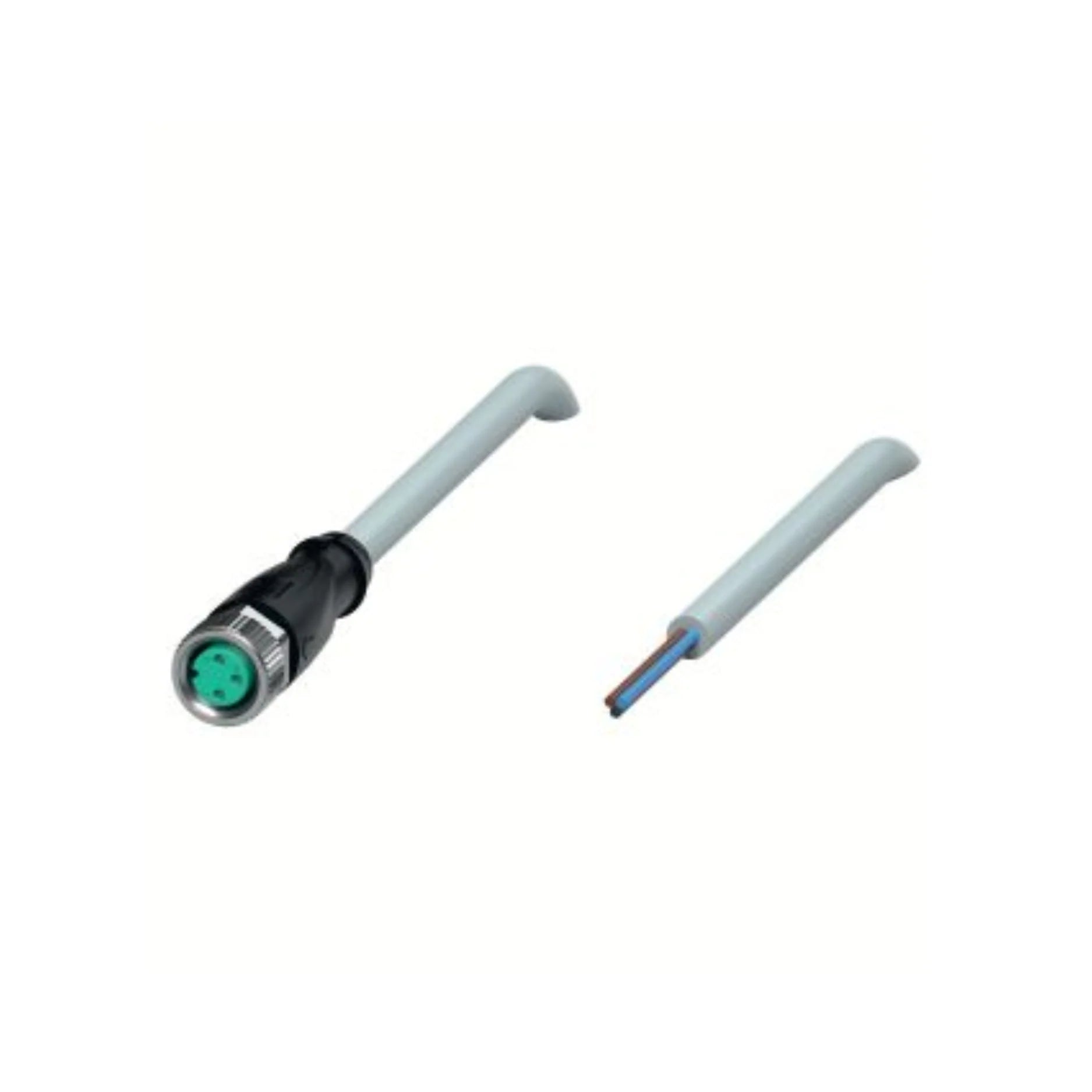

Pepperl+Fuchs V3-GM-5M-PUR

Overview

The Pepperl+Fuchs V3-GM-5M-PUR is an exceptionally durable M8 3-pin female cordset, meticulously engineered to deliver unwavering performance in the most challenging industrial environments. This premium cordset features a straight, A-coded connector seamlessly integrated with a 5-meter halogen-free PUR (Polyurethane) cable. Its advanced construction provides superior resistance to microbes, hydrolysis, and mechanical stress, making it an indispensable component for critical automation and control systems. Designed to ensure reliable data and power transmission, the V3-GM-5M-PUR is a testament to Pepperl+Fuchs' commitment to quality and longevity in industrial connectivity solutions.

Key Features

• Connector Type: M8 female, straight, A-coded for precise and secure connections.
• Number of Pins: 3-pin configuration, suitable for a wide range of sensor and actuator applications.
• Cable Length: Generous 5 meters (5 m) for flexible installation options.
• Cable Material: High-grade Polyurethane (PUR), halogen-free, offering excellent resistance to wear, chemicals, and environmental factors.
• Operating Voltage: Robust electrical capacity, up to 48 V AC / 60 V DC.
• Operating Current: Capable of handling up to 3 A, ensuring reliable power delivery.
• Protection Class: IP68 rated, guaranteeing complete protection against dust ingress and continuous immersion in water.
• Temperature Range:
  • Plug Connector: –40 °C to +90 °C, for extreme temperature resilience.
  • Cable (Fixed Installation): –40 °C to +80 °C.
  • Cable (Flexing): –20 °C to +80 °C, maintaining flexibility in dynamic settings.
• Mechanical Durability: Engineered for a minimum of 100 mating cycles, ensuring extended operational life.
• Compliance: Adheres to industry standards IEC 61076-2-104 and IEC 60754-1 for guaranteed quality and safety.
• Part Number: 024772 – for easy identification and reordering.

Technical Specifications

• Sheath Diameter: Optimal 4.3 mm for durability and ease of routing.
• Core Cross Section: Precisely engineered 0.25 mm² for efficient current flow.
• Core Colors: Standard brown, blue, black for universal wiring identification.
• Bending Radius:
  • Fixed Installation: >8× cable diameter for stable setups.
  • Moving Installation: >15× cable diameter to accommodate dynamic movements.
• Drag Chain Suitability: Optimized for industrial drag chains with a maximum of 50 cycles/day and a maximum motion velocity of 0.3 m/s.
• Connector Materials:
  • Screw Connection: Zinc diecast, nickel-plated for superior strength and corrosion resistance.
  • Body: High-performance TPU (Thermoplastic Polyurethane), black, for robust protection.
  • Seal: FKM (Fluorocarbon rubber) for exceptional chemical resistance and sealing integrity.
  • Contact Surface: Gold-plated (Au) for outstanding conductivity and long-term reliability.
• Flammability Rating: V-2, indicating a self-extinguishing material for enhanced safety.

Applications

• Industrial Automation Systems: Essential for connecting various sensors, actuators, and control devices.
• Sensor and Actuator Connections: Provides reliable and consistent connectivity in critical monitoring and control loops.
• Packaging Machinery: Withstands the rigorous demands of high-speed and repetitive operations.
• Conveyor Systems: Ensures seamless operation and data transfer in material handling and logistics.
• Material Handling Equipment: Ideal for systems requiring robust and flexible interconnectivity.

Why Choose This Model?

The Pepperl+Fuchs V3-GM-5M-PUR cordset stands out as a superior choice for industrial connectivity due to its unparalleled combination of durability, protection, and performance. Its robust design, featuring an M8 straight A-coded connector and a 5-meter PUR cable, guarantees reliable connections even in the harshest industrial conditions. The impressive IP68 rating offers ultimate peace of mind, providing complete defense against dust and water, making it suitable for washdown areas and outdoor applications. Furthermore, its advanced PUR cable material ensures excellent chemical resistance, safeguarding against exposure to oils, coolants, and other aggressive industrial substances that can degrade lesser cables. Designed for both fixed and flexing applications, this cordset offers remarkable flexible installation capabilities without compromising its integrity or performance. By choosing the V3-GM-5M-PUR, you are investing in the quality and innovation inherent in the trusted Pepperl+Fuchs brand, a global leader in industrial automation known for its commitment to engineering excellence.
