Pepperl+Fuchs V15-G-PG9

Overview

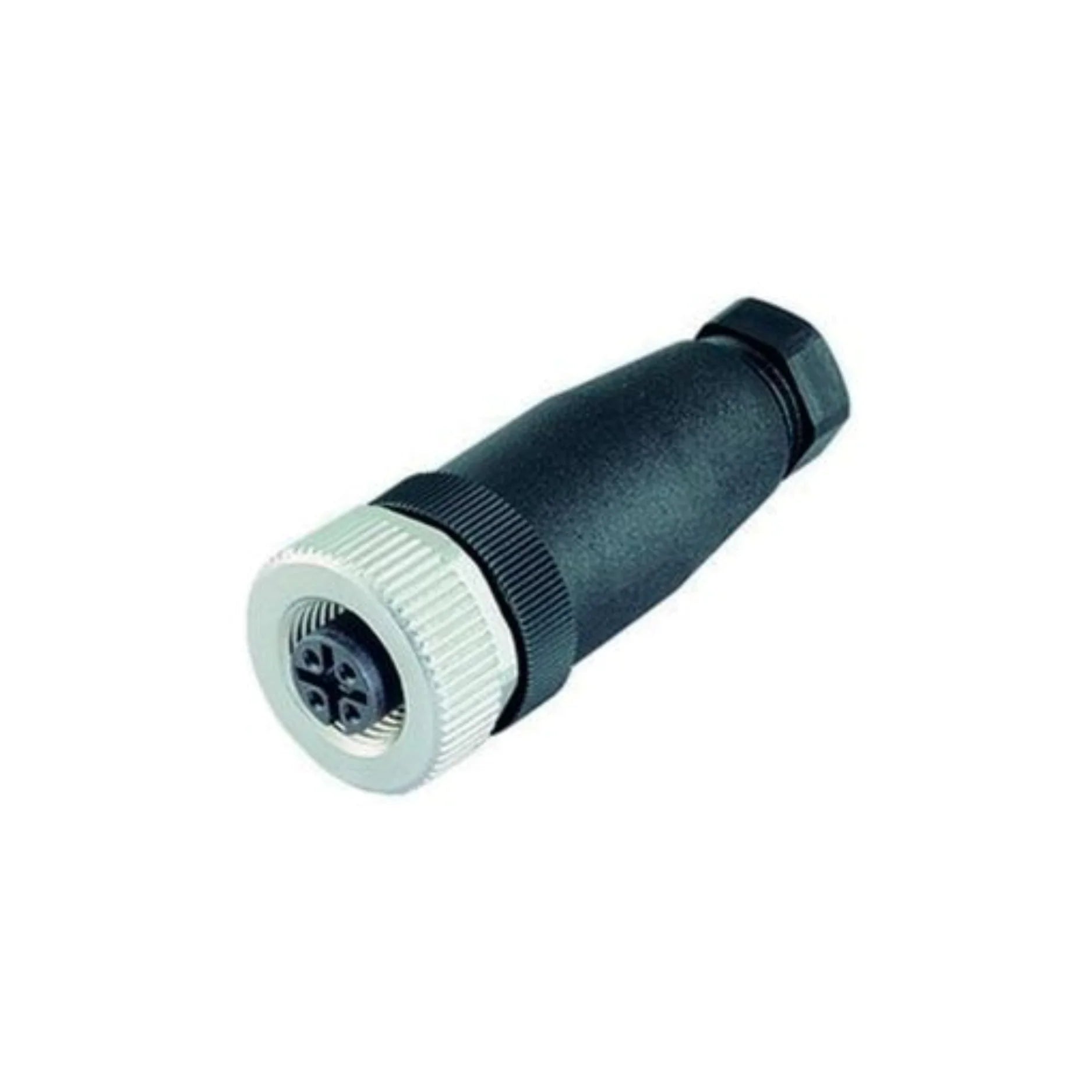

The Pepperl+Fuchs V15-G-PG9 is a premium M12 5-pin female field-attachable connector engineered for the rigorous demands of modern industrial automation. This robust connector facilitates swift and secure on-site termination, offering unparalleled flexibility for custom cable assemblies and repairs in challenging environments. Its meticulously designed construction, featuring a PG9 cable gland and reliable screw termination, ensures stable and interruption-free data and power transmission for crucial sensors and actuators. Built to withstand the harshest conditions, the V15-G-PG9 boasts an impressive IP67 protection rating, making it an indispensable component for maintaining operational integrity and efficiency across diverse industrial settings.

Key Features

• Connector Type: M12 plug with female sockets, precisely configured with 5 positions for optimal connectivity.
• Termination: Advanced screw termination mechanism provides a straightforward yet exceptionally secure wiring process, minimizing installation time and maximizing connection reliability.
• Cable Gland: Integrated PG9 cable gland accommodates a versatile range of cable diameters, specifically from 6 to 8 mm, ensuring a tight and protective seal against environmental ingress.
• Housing Material: Crafted from high-grade nickel-plated copper zinc, offering superior resistance against corrosion and mechanical wear, guaranteeing extended operational life even in aggressive industrial atmospheres.
• Contact Material: Utilizing copper tin zinc for its contacts, this connector delivers exceptional electrical conductivity and long-term stability for critical signal pathways.
• Protection Rating: Achieves an IP67 rating, signifying complete protection against dust ingress and the ability to withstand temporary immersion in water, safeguarding internal components from environmental hazards.
• Operating Temperature Range: Engineered to perform flawlessly across a broad temperature spectrum, from -40°C to +85°C, ensuring consistent operation in extreme thermal conditions.
• Current Rating: Capable of handling up to 4A per contact, providing ample power delivery for a wide array of industrial devices.
• Voltage Rating: Rated for 125V AC/DC, making it suitable for a variety of industrial power and signal applications.

Technical Specifications

• Model Number: V15-G-PG9
• Number of Positions: 5
• Shell Size - Insert: M12-5
• Mounting Type: Free Hanging (In-Line)
• Fastening Type: Threaded
• Orientation: Keyed
• Shielding: Unshielded
• Cable Opening: 6.00mm ~ 8.00mm
• Flammability Rating: Not specified
• Weight: Approximately 29 g

Applications

• Industrial Automation: Serves as a vital link for connecting sensors, actuators, and other components, ensuring seamless and reliable communication within complex automated systems.
• Robotics: Provides dependable and secure signal transmission pathways for robotic arms and automated machinery, crucial for precision control and operation.
• Process Control: Essential for maintaining robust connectivity in critical process monitoring and control systems, enhancing operational stability and data accuracy.
• Machine Building: The ideal choice for custom machinery and equipment, offering a flexible and durable connectivity solution that can be tailored on-site to specific design requirements.
• Harsh Environments: Its IP67 rating and robust construction make it perfectly suited for manufacturing plants, outdoor installations, and areas exposed to dust, moisture, and temperature fluctuations.

Why Choose This Model?

The Pepperl+Fuchs V15-G-PG9 stands out as a superior choice for industrial connectivity due to its unique combination of features and the trusted engineering of Pepperl+Fuchs. Its field-attachable design empowers technicians with the ability to create custom cable lengths and perform on-site repairs, significantly reducing downtimes and streamlining installation processes. The robust construction, highlighted by its nickel-plated housing and IP67 protection, guarantees exceptional durability and unflinching performance even in the most aggressive industrial environments. With versatile compatibility for a broad range of industrial cables (6-8 mm diameter), it offers unparalleled flexibility across various applications. Experience reliable performance through its high-quality materials and secure screw termination method, ensuring stable electrical connections pivotal for uninterrupted operation. Furthermore, choosing Pepperl+Fuchs means investing in a product from a trusted brand renowned globally for its commitment to innovation, quality, and comprehensive customer support in industrial automation.

Order Now

Secure the vital connectivity your industrial applications demand. The Pepperl+Fuchs V15-G-PG9 M12 5-Pin Female Field-Attachable Connector is available for immediate shipping worldwide. Enhance your system's reliability and efficiency by adding this high-performance connector to your operational toolkit today.
