Pepperl+Fuchs V1-W-BK

Overview

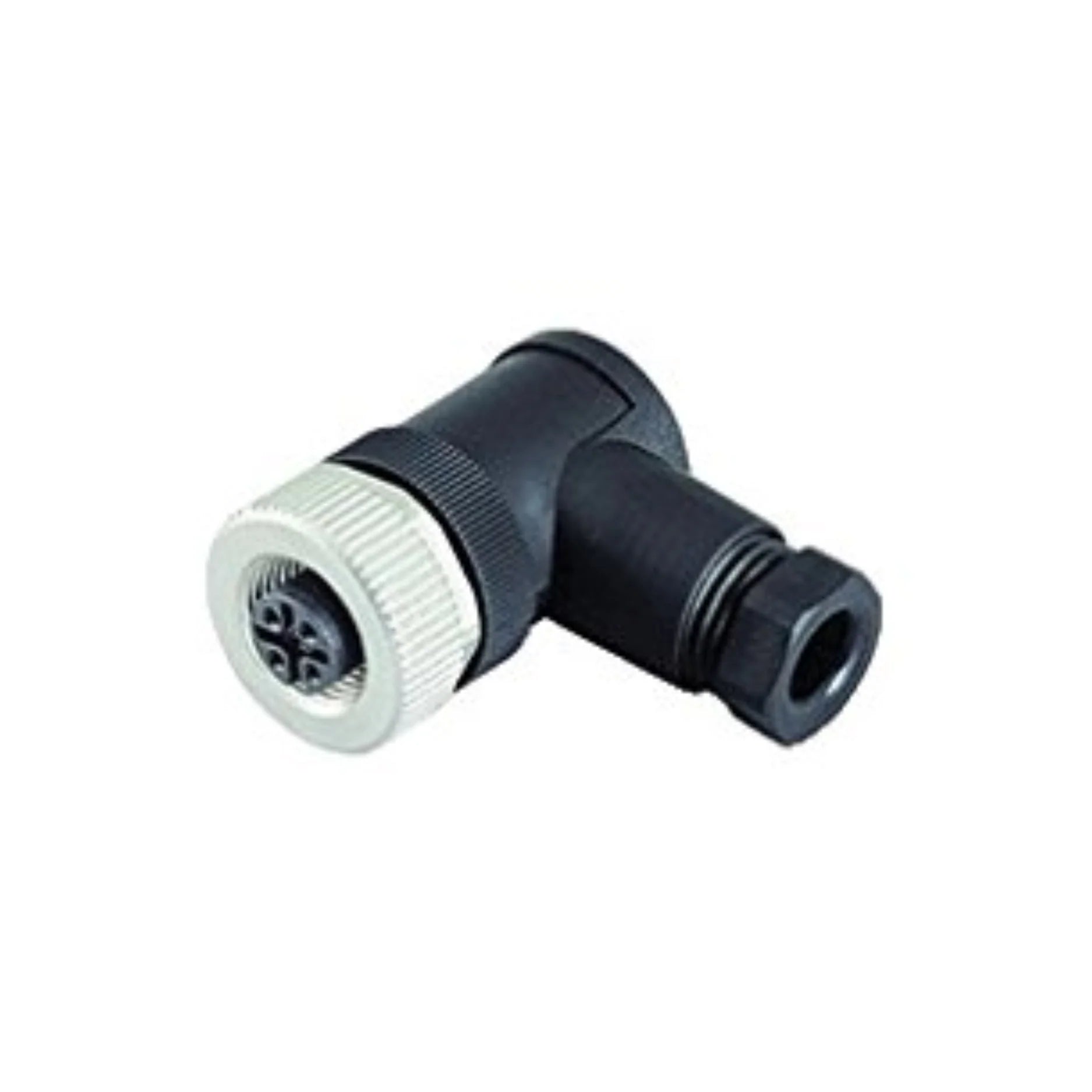

The Pepperl+Fuchs V1-W-BK M12 4-Pin Female Right-Angle Connector is an indispensable component for demanding industrial automation setups. This field-attachable connector empowers engineers and technicians with the flexibility to create custom cable assemblies directly on-site, significantly reducing downtime and installation complexities. Engineered for superior performance, it ensures secure and stable signal transmission for critical sensors and actuators across a multitude of applications. Its robust design, coupled with an impressive IP67 protection rating, makes it exceptionally resilient against dust, water ingress, and the rigors of harsh industrial environments.

Key Features

• Connector Type: M12 female, right-angle configuration with 4 pins, offering versatile connectivity options.
• Field-Attachable Design: Provides unparalleled convenience for on-site assembly, allowing for tailored cable lengths and configurations, minimizing waste and maximizing efficiency.
• Secure Screw Terminals: Accommodates a wide range of cable diameters from 4 to 6 mm, guaranteeing a firm and reliable electrical connection crucial for uninterrupted operation.
• Superior Protection (IP67): Certified IP67 rated, offering comprehensive protection against solid objects and immersion in water, ensuring longevity and consistent performance in challenging conditions.
• High Operating Limits: Capable of handling operating voltages up to 250 V AC/DC and operating currents up to 4 A per contact, suitable for a broad spectrum of industrial devices.
• Wide Temperature Range: Functions flawlessly in extreme temperatures, from chilling -40°C to scorching +85°C, expanding its applicability in diverse climates.
• Durable Construction Materials: Features a high-grade nickel-plated copper zinc housing and a resilient polyamide (PA) body, engineered for maximum resistance to wear and tear.

Technical Specifications

• Model Number: V1-W-BK
• Connector Type 1: M12 female socket, right-angle, 4-pin, A-coded
• Locking Mechanism: Reliable screw connection for secure mating
• Cable Diameter Range: 4 to 6 mm
• Core Cross Section: Up to 0.75 mm² (equivalent to 18 AWG)
• Tightening Torque: Optimized at 0.6 Nm for consistent connection integrity
• Mating Cycles: Engineered for a minimum of 50 mating cycles, ensuring long-term usability
• Degree of Protection: IP67, offering robust environmental resistance
• Housing Material: Nickel-plated copper zinc, providing excellent corrosion resistance
• Body Material: Polyamide (PA), black, for high mechanical strength and insulation
• Contact Material: Copper tin zinc, ensuring optimal electrical conductivity
• Insulation Resistance: Minimum of 100 MΩ for superior electrical isolation
• Pollution Degree: 3, indicating suitability for industrial environments with conductive pollution
• Approvals: cURus approved, signifying compliance with rigorous safety standards

Applications

• Industrial Automation: The ideal choice for establishing dependable connections for sensors, actuators, and various field devices within automated production lines and systems.
• Robotics: Provides secure and flexible connectivity essential for the intricate wiring and constant movement associated with robotic arms and automated machinery.
• Process Control Systems: Delivers unwavering performance for critical signal transmission in process monitoring, control, and data acquisition applications within manufacturing and other industries.
• Machine Building: Perfectly suited for custom machinery and equipment where robust, field-attachable connectors are paramount for efficient assembly and future maintenance.

Why Choose This Model?

The Pepperl+Fuchs V1-W-BK stands out as a superior choice for industrial connectivity due to its thoughtful design and unwavering quality:

• Space-Saving Right-Angle Design: The ergonomic right-angle form factor is invaluable in installations where space is at a premium, allowing for neat and compact cable routing.
• Unmatched Field-Attachable Flexibility: Save time and resources with the ability to assemble connectors on-site, adapting to specific cable lengths and configurations without needing pre-assembled solutions.
• Rugged Durability for Harsh Environments: Constructed with a nickel-plated housing and boasting an IP67 rating, this connector is built to withstand extreme temperatures, moisture, and dust, ensuring uninterrupted operation.
• Guaranteed Reliable Performance: Leveraging high-quality materials and secure screw termination technology, the V1-W-BK delivers consistently stable and secure electrical connections every time.
• Backed by a Trusted Industry Leader: Pepperl+Fuchs is globally recognized for its commitment to engineering excellence and producing high-quality industrial components, assuring you of reliability and comprehensive support.

Order Now

Enhance the reliability and efficiency of your industrial systems with the Pepperl+Fuchs V1-W-BK. This high-performance M12 4-pin female right-angle connector is available for immediate shipping worldwide.
