Pepperl+Fuchs V1-W-10M-PUR

Overview

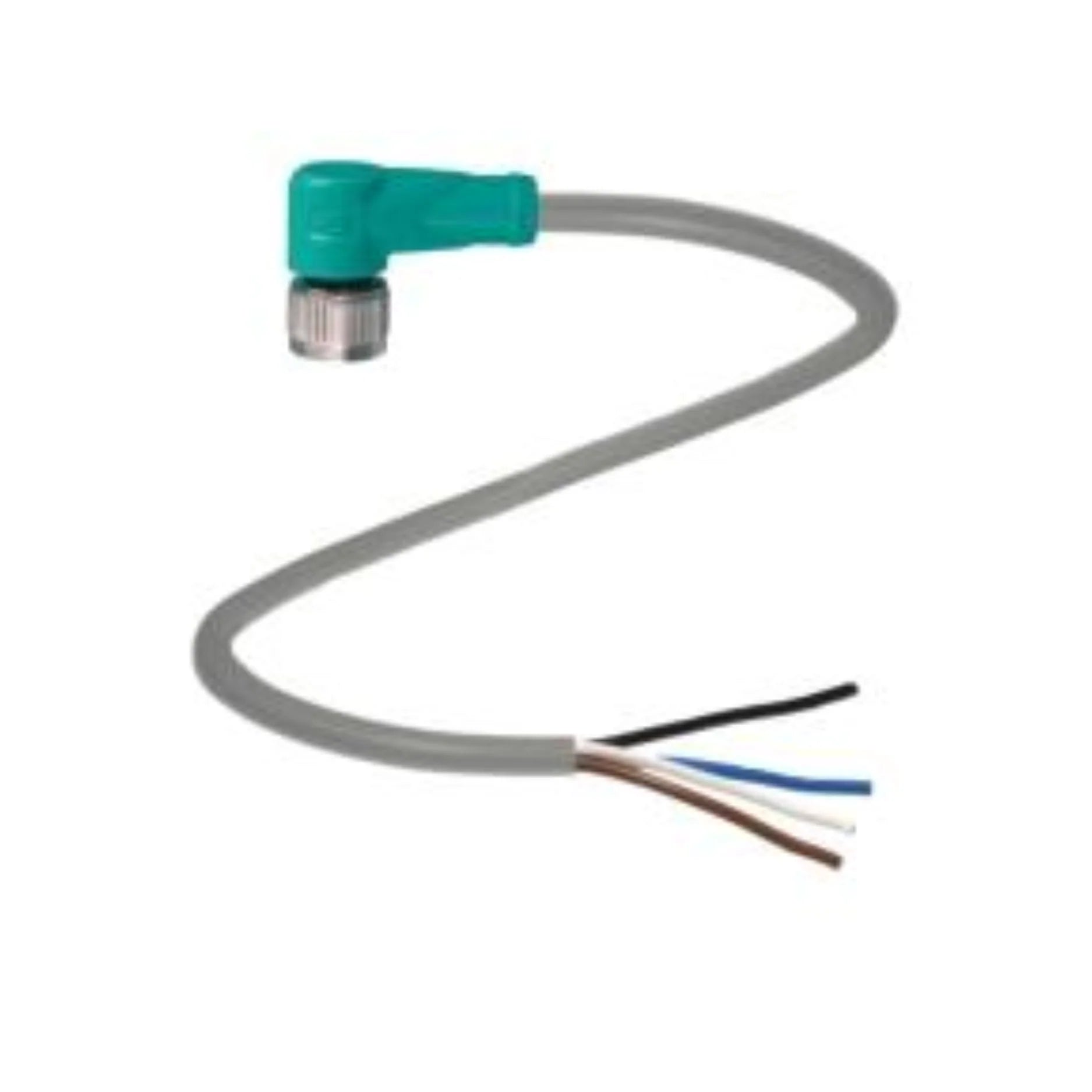

Elevate your industrial automation connectivity with the Pepperl+Fuchs V1-W-10M-PUR, a premium M12 angled female cordset meticulously engineered for unparalleled reliability and performance. This robust solution integrates a generous 10-meter PUR cable with a 4-pin, A-coded configuration, all safeguarded by an impressive IP68/IP69 protection rating. Designed to thrive in even the most challenging industrial environments, the V1-W-10M-PUR ensures consistently secure and durable connections, minimizing downtime and maximizing operational efficiency. Its angled design further aids in installation flexibility within confined spaces, making it an indispensable component for sophisticated automation systems.

Key Features

• Connector Type: M12 angled female, A-coded, 4-pin for industry-standard compatibility and versatile applications.
• Cable Length: A substantial 10 meters of cable provides extended reach and flexibility for diverse installation requirements.
• Cable Material: High-quality Polyurethane (PUR) in a distinctive gray color, offering exceptional durability and resistance to harsh industrial elements.
• Protection Rating: Achieves IP68/IP69, guaranteeing superior resistance against ingress from dust, water, and even high-pressure, high-temperature washdowns.
• Operating Voltage: Capable of handling up to 250 V AC/DC, ensuring broad compatibility with various industrial systems.
• Operating Current: Supports an operating current of up to 4 A, suitable for a wide range of sensor and actuator applications.
• Temperature Range: Operates reliably across a broad temperature spectrum: -40°C to +90°C (plug connector), -40°C to +80°C (fixed cable installation), and -25°C to +80°C (flexing cable installation).
• Halogen-Free: Fully compliant with IEC 60754-1 standards, ensuring safety and environmental responsibility.
• Resistance: Engineered for longevity with excellent resistance to microbes and hydrolysis, crucial for sustained performance in demanding industrial settings.

Technical Specifications

• Model Number: V1-W-10M-PUR
• Part Number: 040066
• Connector 1:
  • Type: M12 socket
  • Style: Angled
  • Locking Mechanism: Secure screw connection featuring a zinc diecast, nickel-plated knurled nut, designed for robust tool assembly.
  • Contact Surface: Gold-plated contacts ensure optimal conductivity and reliable signal transmission over time.
• Connector 2: Open cable end for customizable termination.
• Cable Specifications:
  • Sheath Diameter: 4.8 mm
  • Core Cross Section: 0.34 mm²
  • Core Colors: Brown, white, blue, black for easy identification and wiring.
  • Bending Radius: >10x cable diameter for movable installation and >8x cable diameter for fixed installation, offering excellent flexibility.
• Mechanical Durability: Engineered for a minimum of 100 mating cycles, ensuring extended operational life.
• Standards Compliance: Adheres to IEC 61076-2-101 and EN 60529, guaranteeing international quality and safety standards.
• Certifications: CE, UKCA certified for assured quality and market compliance.

Applications

• Industrial Automation: Provides indispensable, secure connections for a wide array of sensors, actuators, and control devices, forming the backbone of efficient automated systems.
• Robotics: Facilitates reliable and uninterrupted signal transmission within complex robotic systems, crucial for precision and performance.
• Conveyor Systems: Ensures seamless communication between control units and critical conveyor components, optimizing material handling and logistics.
• Packaging Machinery: Connects diverse sensors and devices integral to packaging equipment, enhancing operational speed and accuracy.

Why Choose This Model?

The Pepperl+Fuchs V1-W-10M-PUR stands out as the superior choice for professionals seeking uncompromising quality and durability in their connectivity solutions. Its Robust Construction, highlighted by an IP68/IP69 rating, provides unparalleled protection against environmental aggressors, making it ideal for the harshest industrial settings. The generous Flexible Installation afforded by the 10-meter PUR cable offers significant versatility, accommodating complex layouts and reducing the need for additional junction boxes. Experience Secure Connections every time, thanks to gold-plated contacts and a meticulously engineered screw connection that resists loosening, ensuring critical data and power flow remain undisturbed. Furthermore, its exceptional Environmental Resistance – being halogen-free and resistant to microbes and hydrolysis – guarantees a long lifespan and consistent performance, even in challenging chemical or biological environments. Invest in the V1-W-10M-PUR for a reliable, high-performance connectivity solution that safeguards your industrial operations.

Order Now

Secure your industrial automation systems with the reliable and high-performance Pepperl+Fuchs V1-W-10M-PUR M12 Angled Female Cordset. This essential component is available for immediate worldwide shipping to meet your project deadlines and operational needs.
