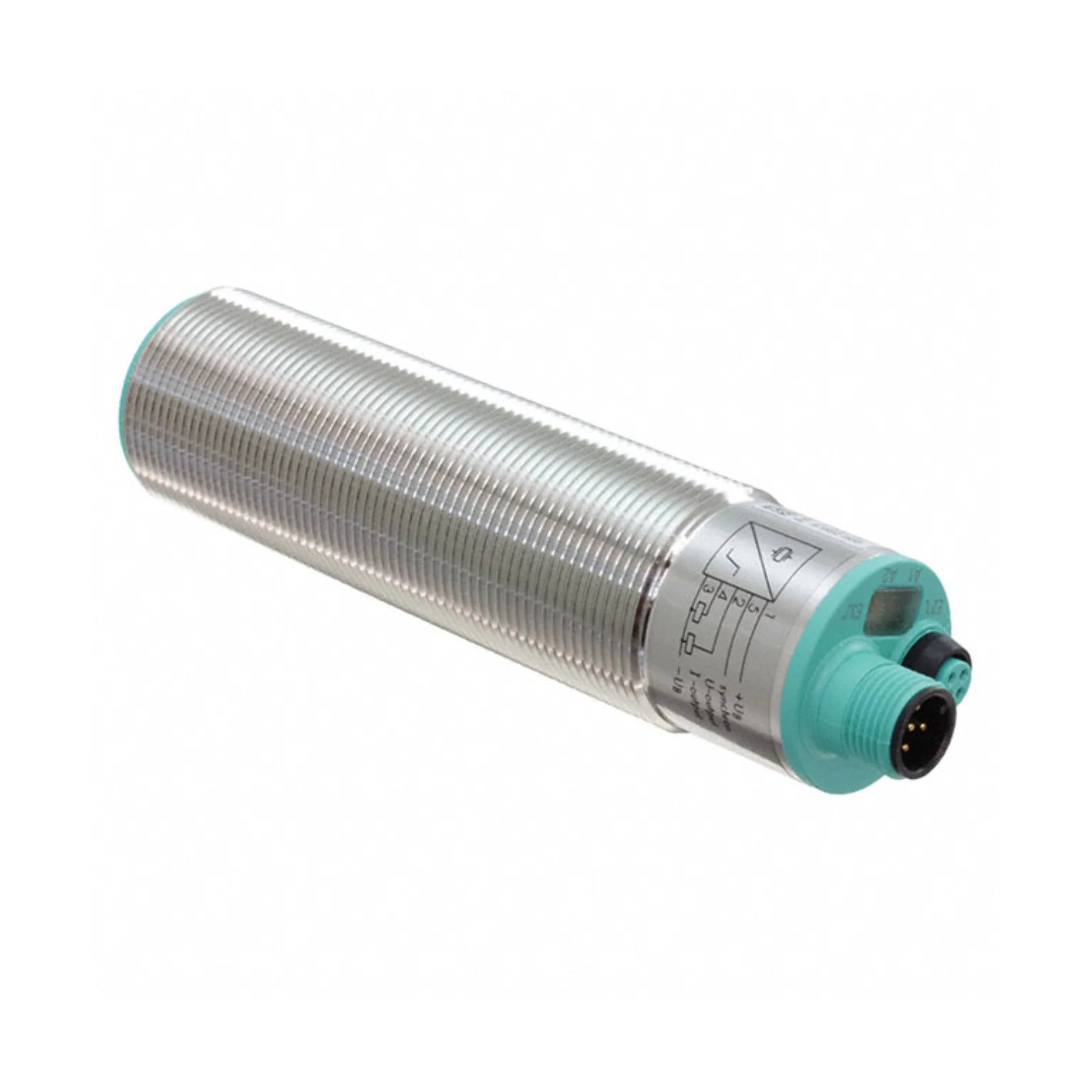

Pepperl+Fuchs UC500-30GM-IUR2-V15

Overview

The Pepperl+Fuchs UC500-30GM-IUR2-V15 (Part No. 104092) is a state-of-the-art ultrasonic distance sensor engineered for unparalleled accuracy and reliability in demanding industrial environments. This compact yet powerful sensor provides a versatile sensing range up to 500 mm, making it ideal for a multitude of measurement and detection tasks. Unlike optical sensors, the UC500-30GM-IUR2-V15 excels in challenging conditions where dust, color variations, or transparent materials can hinder performance. Its selectable analog output (4–20 mA or 0–10 V) ensures seamless integration into existing control systems, offering flexible data acquisition and processing.

Constructed with a robust M30 nickel-plated brass housing and featuring a secure M12 V15 connector, this sensor boasts an IP67 protection rating, guaranteeing exceptional durability and resistance to dust and water ingress. Furthermore, integrated temperature compensation ensures consistent and highly accurate readings across a wide operational temperature range, reinforcing its suitability for critical applications in various industries. Whether monitoring liquid levels or precisely positioning objects, the UC500-30GM-IUR2-V15 delivers dependable performance.

Key Features

• Precision Sensing Range: Accurately detects objects from 60 mm up to 500 mm, providing excellent versatility for various applications.
• Flexible Analog Output: Offers switchable 4–20 mA or 0–10 V analog output, allowing for easy adaptation to different control systems and measurement requirements.
• Rugged Construction: Encased in a durable M30 cylindrical nickel-plated brass housing, ensuring longevity and performance in harsh industrial settings.
• M12 V15 Connector: Features a robust M12, 5-pin (V15) connector for secure and reliable electrical connections.
• Integrated Temperature Compensation: Guarantees stable and accurate measurement results by automatically adjusting for temperature fluctuations.
• IP67 Protection Class: Provides superior protection against dust and water, making it suitable for wet and dusty environments.
• Clear LED Indicators: Equipped with intuitive LED indicators to display both operating and switching states for convenient status monitoring.
• Non-Contact Measurement: Offers reliable non-contact detection, reducing wear and tear and extending sensor lifespan.

Technical Specifications

• Model: UC500-30GM-IUR2-V15
• Part Number: 104092
• Measurement Range: 60–500 mm
• Output Signal: Analog (selectable: 4–20 mA or 0–10 V)
• Supply Voltage: 10–30 VDC
• Response Time: ≤ 300 ms
• Resolution: < 1 mm
• Switching Frequency: ~5 Hz
• Connector: M12 (V15), 5-pin
• Operating Temperature: -25°C to +70°C
• Enclosure Rating: IP67

Applications

• Level Sensing: Ideal for precise, continuous level monitoring of liquids, granular materials, and powders in tanks, silos, and hoppers. Its non-contact nature makes it perfect for viscous or aggressive media.
• Object Measurement & Positioning: Crucial for accurate object detection, positioning, and sorting in automated conveyor, packaging, and assembly systems, enhancing operational efficiency.
• Industrial Automation: Provides reliable distance feedback and presence detection in a wide range of industrial automation processes, especially where optical sensors are unreliable due to environmental factors.
• Non-Contact Monitoring: Effectively monitors various surface types and materials, including those that are transparent, colorful, or highly reflective, making it highly versatile for diverse production lines.

Why Choose This Model?

The Pepperl+Fuchs UC500-30GM-IUR2-V15 stands out as a superior choice for several compelling reasons. Its ability to provide precise analog measurement in the most challenging environments—be it dusty, dirty, or prone to moisture—ensures uninterrupted operation and accuracy where other sensing technologies would fail. The flexibility offered by its dual analog output (4–20 mA or 0–10 V) allows for effortless integration into diverse control architectures, simplifying system design and reducing implementation costs. Built with a focus on longevity, its rugged M30 housing and IP67 protection rating guarantee an extended operational life and consistent performance even under harsh industrial conditions. Choosing the UC500-30GM-IUR2-V15 means investing in a reliable, high-performance solution that delivers unparalleled measurement accuracy and operational resilience for your critical applications.

Order Now

Enhance your automation systems with the precision and reliability of the Pepperl+Fuchs UC500-30GM-IUR2-V15 ultrasonic sensor. Experience superior performance in challenging industrial environments with this advanced non-contact measurement solution. Available for global delivery, ensure your operations benefit from cutting-edge technology. Contact us today to place your order or request further technical details.
