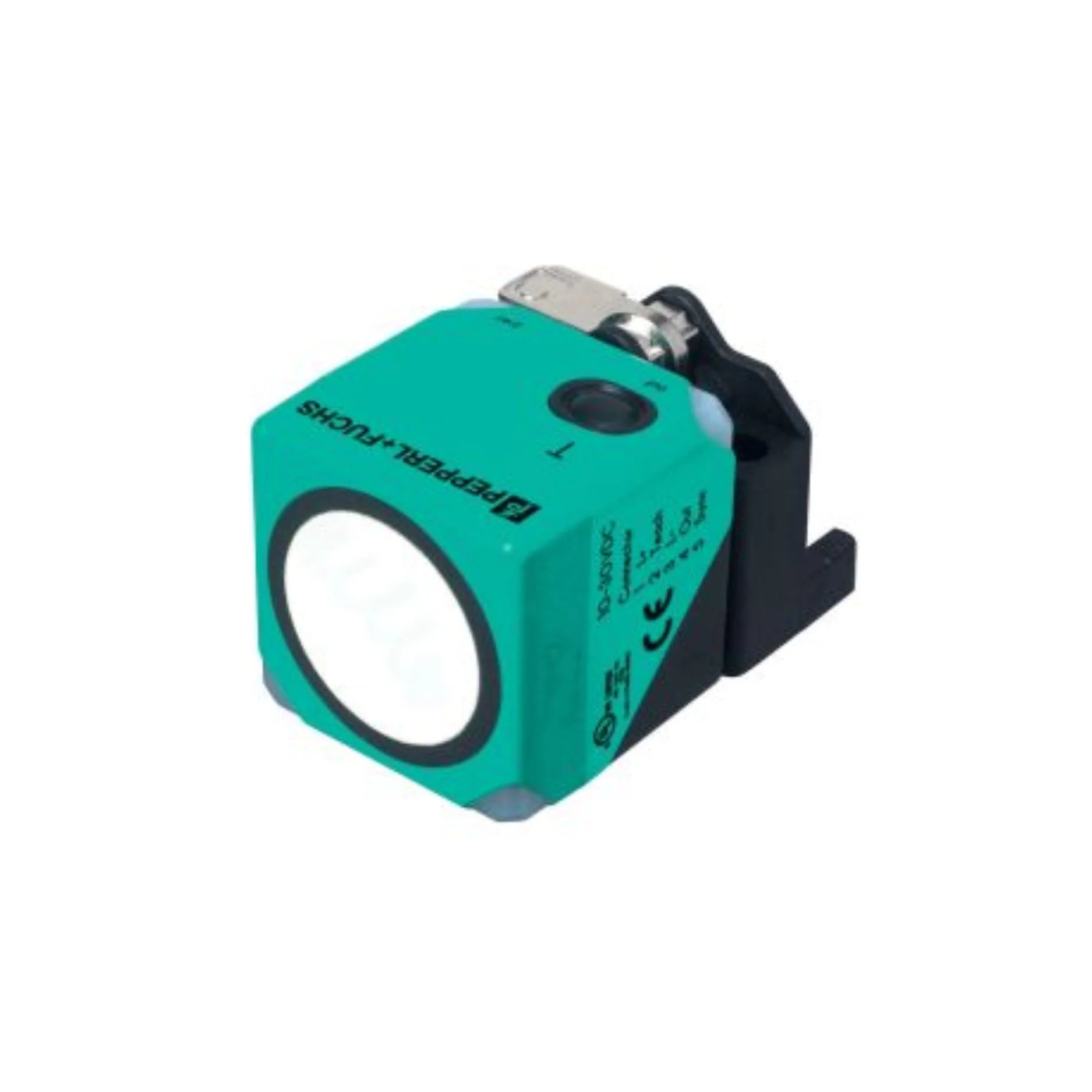

Pepperl+Fuchs UC4000-L2-I-V15 ultrasonic sensor with 200–4000 mm range, 4–20 mA output, rotatable head, selectable sound beam, and IP67 protection.

Pepperl+Fuchs UC4000-L2-I-V15

$738.00
$738.00
Skip to product information
Pepperl+Fuchs UC4000-L2-I-V15 ultrasonic sensor with 200–4000 mm range, 4–20 mA output, rotatable head, selectable sound beam, and IP67 protection.
  • Pepperl+Fuchs UC4000-L2-I-V15 ultrasonic sensor with 200–4000 mm range, 4–20 mA output, rotatable head, selectable sound beam, and IP67 protection.
  • Pepperl+Fuchs UC4000-L2-I-V15 ultrasonic sensor with 200–4000 mm range, 4–20 mA output, rotatable head, selectable sound beam, and IP67 protection.
Pepperl+Fuchs UC4000-L2-I-V15

Pepperl+Fuchs UC4000-L2-I-V15

$738.00
$738.00

Overview

The Pepperl+Fuchs UC4000-L2-I-V15 Ultrasonic Sensor is engineered for unparalleled accuracy and reliability in industrial automation. This high-precision device excels in diverse applications requiring meticulous distance measurement and object detection. With an extensive sensing range of 200 to 4000 mm and a robust 4–20 mA analog current output, the UC4000-L2-I-V15 delivers consistent and trustworthy performance. Its innovative rotatable sensor head and field-selectable sound beam widths offer exceptional installation flexibility and application-specific optimization, making it an indispensable tool for engineers and system integrators seeking cutting-edge sensing solutions.

Key Features

  • Extended Sensing Range: Accurately detects objects from 200 mm up to 4000 mm.
  • Configurable Adjustment Range: Fine-tune detection between 240 mm and 4000 mm for precise application needs.
  • Minimal Dead Band: Operates effectively with a dead band from 0 to 200 mm.
  • Standardized Analog Output: Provides a reliable 4–20 mA current output for seamless integration into control systems.
  • Flexible Installation: Features a bidirectional and rotatable sensor head, adapting to various mounting orientations.
  • Optimized Sound Beam: Selectable sound beam widths (narrow, medium, wide) ensure optimal performance for specific targets and environments.
  • Intuitive Status Indicators: Equipped with green (power), yellow (object detection), and red (error) LEDs for clear operational feedback.
  • Wide Operating Voltage: Compatible with 10 to 30 V DC power supplies.
  • Efficient Power Consumption: Low no-load supply current of ≤ 50 mA.
  • Rapid Response: Achieves a response delay of ≤ 180 ms and availability within ≤ 1600 ms.
  • Industrial-Grade Protection: IP67 rating guarantees resistance to dust and water ingress, ideal for challenging environments.
  • Broad Operating Temperature: Functions reliably across -25°C to +70°C (-13°F to +158°F).
  • Durable Construction: Housing crafted from PA-GF35 (Polyamide with 35% glass fiber) for enhanced longevity.
  • Standard Connectivity: Utilizes a 5-pin M12 connector for straightforward integration.

Technical Specifications

  • Model Number: UC4000-L2-I-V15
  • Series: L2
  • Transducer Frequency: Approximately 85 kHz
  • Resolution: Evaluation range [mm]/3200, with a minimum of ≥ 0.4 mm, ensuring fine measurement detail.
  • Deviation of Characteristic Curve: Superior accuracy with ≤ 0.2% of full-scale value.
  • Repeat Accuracy: Exceptional consistency at ≤ 0.1% of full-scale value.
  • Load Impedance: Optimally managed at ≤ 500 Ω at UB ≥ 14V and ≤ 300 Ω at UB < 14V.
  • Temperature Influence: Minimal impact on performance, ≤ 1.5% of full-scale value.
  • Synchronization: Supports synchronization of multiple sensors to eliminate mutual interference, crucial for complex setups.
  • Compliance: Adheres to EN IEC 60947-5-2:2020 and IEC 60947-5-7:2003 standards.
  • Approvals: cULus Listed, General Purpose (UL), and CCC not required for products rated ≤36 V.

Applications

  • Material Handling: Essential for precise distance measurement and object positioning in conveyor systems, ensuring smooth operations.
  • Packaging: Optimizes object detection and accurate positioning within high-speed packaging lines, reducing errors and downtime.
  • Automotive Manufacturing: Enables reliable presence detection in critical assembly processes, enhancing automation and safety.
  • Food and Beverage Industry: Used for accurate level measurement in tanks, containers, and silos, ensuring process control and material management.
  • General Automation: A versatile solution for a wide range of industrial sensing tasks where accuracy and reliability are paramount.

Why Choose This Model?

The Pepperl+Fuchs UC4000-L2-I-V15 stands out as a superior choice for industrial sensing due to its blend of innovative features and robust design:

  • Unmatched Flexibility: The rotatable sensor head and selectable sound beam width provide unparalleled adaptability to diverse installation requirements and application specifics, minimizing the need for multiple sensor types.
  • Exceptional Durability: Engineered with an IP67-rated housing made from PA-GF35, this sensor is built to withstand harsh industrial environments, ensuring a long operational life and reliable performance in challenging conditions.
  • Consistent Accuracy: Boasting high accuracy and exceptional repeatability, the UC4000-L2-I-V15 delivers reliable and consistent measurements, crucial for maintaining process quality and efficiency.
  • User-Centric Design: Clear LED indicators simplify monitoring, allowing for quick status checks and efficient troubleshooting, thereby reducing maintenance time and improving operational flow.
  • Trusted Brand Quality: As a Pepperl+Fuchs product, the UC4000-L2-I-V15 embodies a legacy of quality, innovation, and reliability that industries worldwide depend on.

Order Now

Elevate your industrial automation processes with the precision and reliability of the Pepperl+Fuchs UC4000-L2-I-V15 Ultrasonic Sensor. This advanced sensing solution is available for immediate shipping worldwide, ensuring that your operational needs are met without delay. Secure your sensor today and experience the difference that superior engineering makes.
