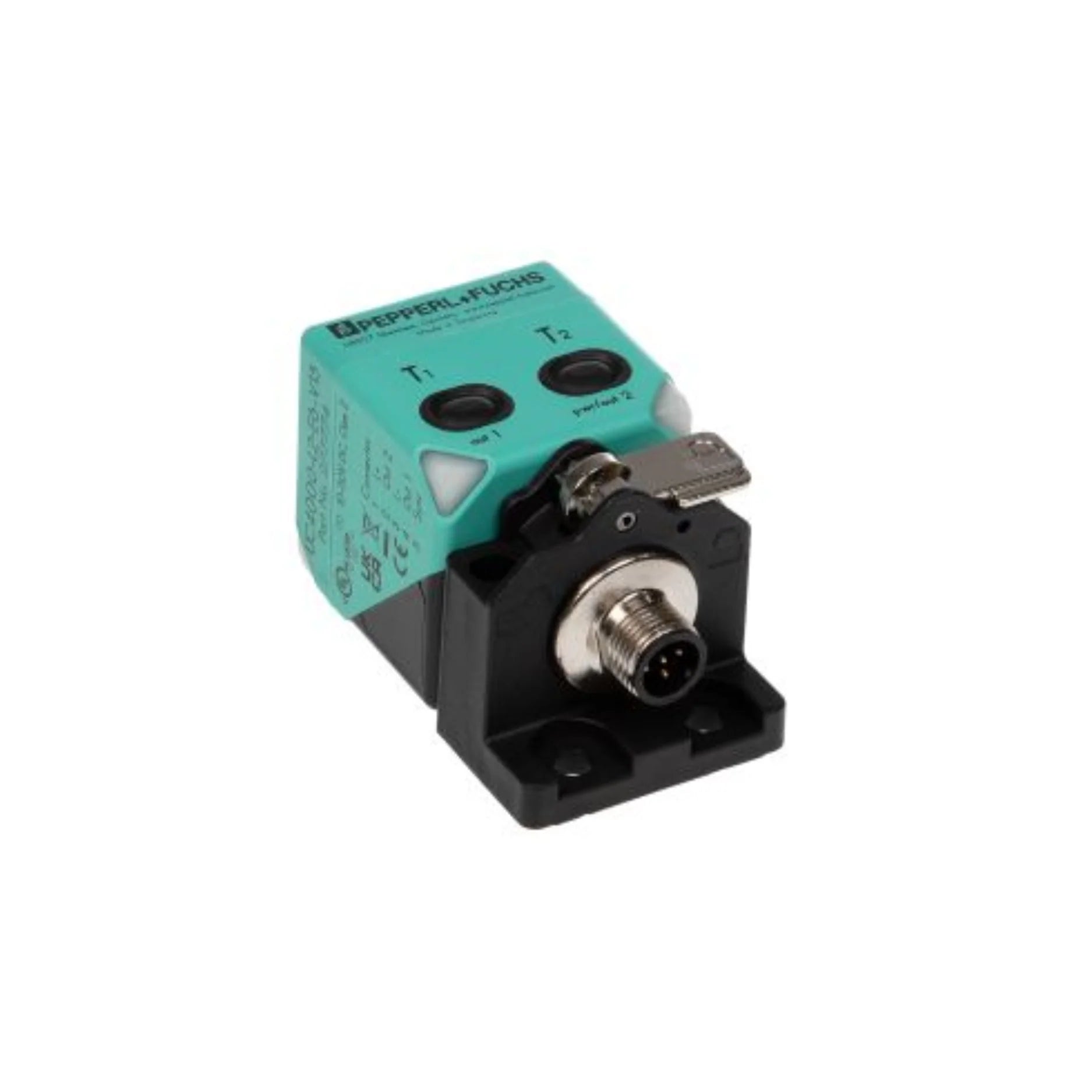

Pepperl+Fuchs UC4000-L2-E6-V15

Overview

The Pepperl+Fuchs UC4000-L2-E6-V15 is a cutting-edge single-head ultrasonic sensor engineered for unparalleled precision in non-contact distance measurement across diverse industrial landscapes. Boasting an expansive detection range of 200 to 4000 mm, this sensor ensures accurate and dependable object detection, making it an indispensable asset for automation and control applications. Its two programmable PNP switching outputs, configurable as either normally open (NO) or normally closed (NC), provide exceptional flexibility to seamlessly integrate into various control systems. The robust M12 connector facilitates effortless installation, while the IP67-rated housing guarantees unwavering performance and longevity even in the most demanding and harsh industrial environments. This versatility positions the UC4000-L2-E6-V15 as the ideal solution for applications demanding exact distance measurement, reliable object identification, and meticulous level monitoring in critical sectors such as material handling, intricate packaging processes, and advanced automotive manufacturing.

Key Features

• Expansive Detection Range: Precisely detects objects from 200 to 4000 mm, with an adjustment range of 240 to 4000 mm.
• Minimal Dead Band: Features a dead band of 0 to 200 mm for enhanced close-range detection.
• Optimized Transducer Frequency: Operates at approximately 85 kHz for superior performance.
• Configurable Outputs: Two PNP switching outputs, programmable as NO or NC, offering short-circuit and overload protection.
• Intuitive Indicators: Green LED for operational status, yellow LEDs for switching states of outputs 1 and 2, and a red LED for error indication.
• Advanced Synchronization: Includes a synchronization input to prevent mutual interference when multiple sensors are deployed.
• Enhanced Programmability: Customizable via a serial interface (programming adapter required) for tailored functionality.
• Adaptable Sound Lobe: Selectable sound lobe width to meet specific application requirements.
• Reliable Temperature Compensation: Guarantees consistent measurement accuracy across fluctuating temperature conditions.
• Durable Construction: Housing crafted from PA-GF35 (polyamide with glass fiber reinforcement) ensures maximum resilience.
• Superior Ingress Protection: IP67 degree of protection ensures resistance against dust and water ingress.
• Effortless Connectivity: Features an M12 x 1, 5-pin connector plug for quick and secure connections.

Technical Specifications

• Model Number: UC4000-L2-E6-V15
• Part Number: 277774
• Operating Voltage: 10 to 30 V DC, with a ripple of 10% SS.
• No-Load Supply Current: ≤ 50 mA.
• Switching Frequency: ≤ 2.8 Hz.
• Repeat Accuracy: ≤ 0.1% of the full-scale value.
• Range Hysteresis: Programmable, with a factory preset of 1 mm.
• Temperature Influence: < 1.5% of the full-scale value.
• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F).
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F).
• Housing Dimensions: 40 mm x 40 mm x 40 mm.
• Mass: 120 g.
• Compliance: UL Approval: cULus Listed, Class 2 Power Source; Standard Conformity: EN IEC 60947-5-2:2020, IEC 60947-5-2:2019.

Applications

• Material Handling Systems: Provides precise and reliable detection of objects on conveyor belts and automated systems.
• Packaging Industry: Essential for accurate level monitoring and object detection within high-speed packaging lines.
• Automotive Manufacturing: Supports critical distance measurement tasks in various assembly processes and quality control.
• Tank Level Monitoring: Offers non-contact and highly accurate measurement of liquid levels in diverse tank configurations.
• Harsh Industrial Environments: Its IP67 rating makes it perfectly suited for use in demanding conditions, including dusty or moist settings.

Why Choose This Model?

The Pepperl+Fuchs UC4000-L2-E6-V15 stands out as a superior choice for industrial sensing due to its exceptional combination of features and robust design. Its wide detection range, spanning from 200 mm to an impressive 4000 mm, allows for versatile application in various settings. The inclusion of two programmable PNP outputs ensures unparalleled flexibility, enabling seamless integration into complex control systems and adapting to specific operational needs. Furthermore, the advanced synchronization capabilities are crucial for preventing mutual interference when multiple sensors are operating in close proximity, guaranteeing consistent and reliable performance. Built with a durable PA-GF35 housing and boasting an IP67 protection rating, this sensor is engineered to withstand the rigors of harsh industrial environments, ensuring long-term reliability and minimal maintenance. Coupled with its precise temperature compensation and comprehensive compliance with international standards, the UC4000-L2-E6-V15 represents a smart investment for businesses seeking a high-performance, dependable, and future-proof ultrasonic sensing solution.

Order Now

Elevate your industrial automation capabilities with the Pepperl+Fuchs UC4000-L2-E6-V15 ultrasonic sensor. Experience superior precision, reliability, and versatility in your operations. Contact us today or visit our website to place your order and integrate this advanced sensing technology into your systems. Model Number: UC4000-L2-E6-V15, Part Number: 277774.
