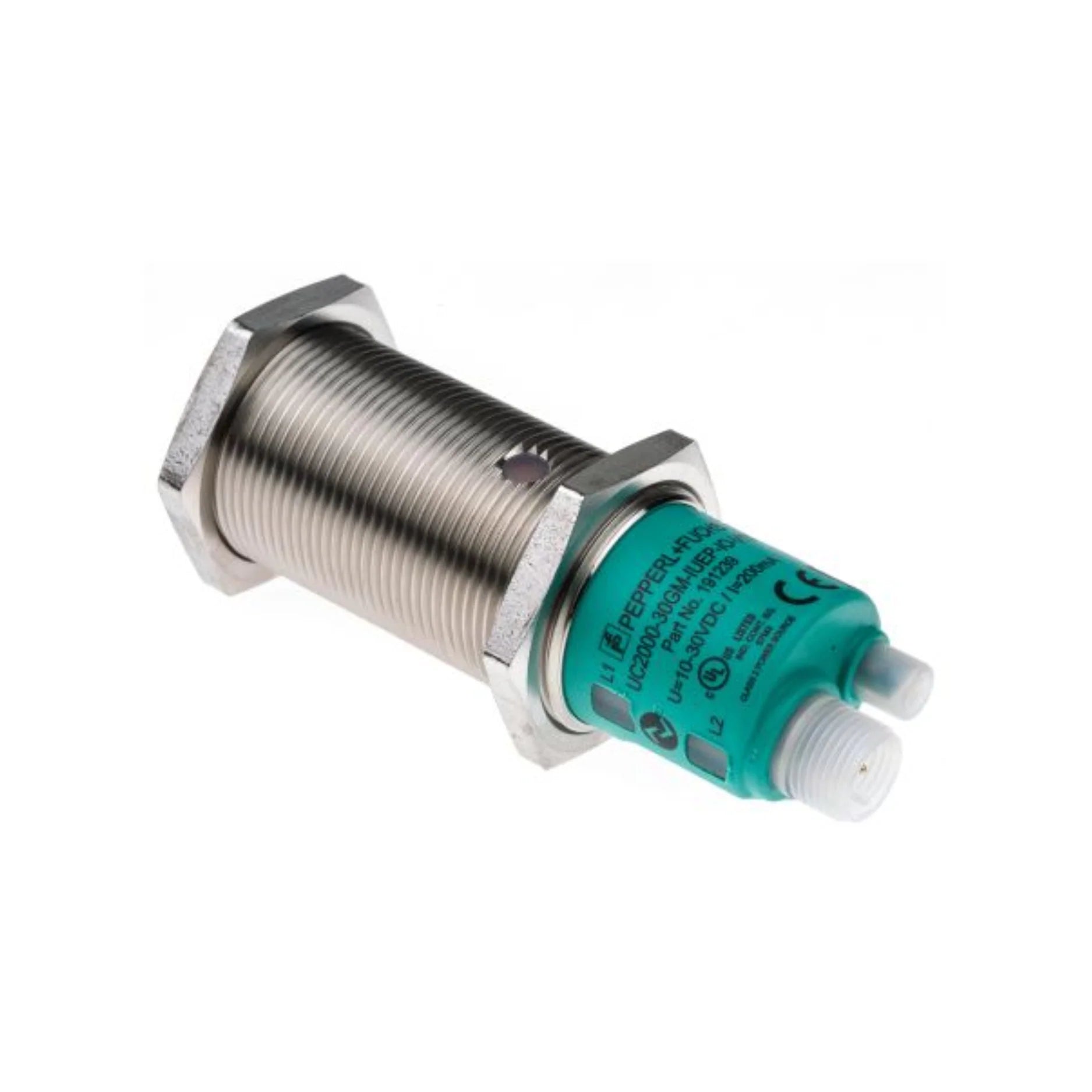

Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15

Overview

The Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15 is a cutting-edge cylindrical ultrasonic sensor engineered for unparalleled accuracy in non-contact distance measurement within demanding industrial environments. This robust device boasts an expansive detection range of 90 to 2000 mm, ensuring reliable and precise object detection across a multitude of applications. Designed for seamless integration, it features an advanced IO-Link interface that facilitates effortless communication with existing control systems. Housed in a durable M30 stainless steel casing, the UC2000-30GM-IUEP-IO-V15 promises exceptional longevity and unwavering performance even in the harshest industrial conditions. It's an ideal solution for tasks demanding meticulous distance measurement, sophisticated object detection, and continuous level monitoring across diverse sectors such as packaging, robotics, and advanced quality control.

Key Features

• Detection Range: 90 to 2000 mm for versatile application.
• Adjustment Range: 120 to 2000 mm, allowing for fine-tuning.
• Dead Band: 0 to 90 mm, minimizing blind spots.
• Transducer Frequency: Approximately 200 kHz for high precision.
• Response Delay: Minimum 65 ms; factory setting 125 ms.
• Output Types:
  • Switching Output: Push-pull (4-in-1), with built-in short-circuit and reverse polarity protection.
  • Analog Output: Highly configurable as either a 4–20 mA current output or a 0–10 V voltage output.
• Interface: IO-Link V1.0 for comprehensive service and process data management.
• Programmability: Fully configurable via DTM with PACTWARE for tailored operation.
• Selectable Sound Lobe Width: Adaptable to precisely meet specific application requirements.
• Synchronization Options: Supports both common mode and multiplex operation for flexible integration.
• Temperature Compensation: Ensures consistent measurement accuracy across varying temperatures.
• Indicators:
  • Green LED: Provides clear indication of power status and active IO-Link communication.
  • Yellow LEDs: Signals object detection and the status of the learning function.
  • Red LED: Alerts to errors and indicates program function status.
• Housing Material: Premium Stainless steel 1.4305 / AISI 303 for superior durability.
• Degree of Protection: IP67 rated, offering robust protection against dust and water ingress.
• Connection Type: Reliable M12 x 1, 5-pin connector plug for secure connections.

Technical Specifications

• Model Number: UC2000-30GM-IUEP-IO-V15
• Part Number: 191239
• Operating Voltage: 10 to 30 V DC (15 to 30 V for voltage output).
• No-Load Supply Current: ≤ 60 mA.
• Power Consumption: ≤ 1 W, ensuring energy efficiency.
• Time Delay Before Availability: ≤ 120 ms for rapid deployment.
• Switching Frequency: ≤ 4 Hz.
• Resolution:
  • Current Output: Evaluation range [mm]/3200 but ≥ 0.35 mm.
  • Voltage Output: Evaluation range [mm]/4000 but ≥ 0.35 mm.
• Deviation of Characteristic Curve: ≤ 0.2% of full-scale value.
• Repeat Accuracy: ≤ 0.1% of full-scale value.
• Range Hysteresis: 1% of the adjusted operating range (default settings), with full programmability.
• Load Impedance:
  • Current Output: ≤ 300 Ohm.
  • Voltage Output: ≥ 1000 Ohm.
• Temperature Influence: ≤ 1.5% from full-scale value (with temperature compensation); ≤ 0.2%/K (without temperature compensation).
• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F).
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F).
• Housing Dimensions: M30 x 1.5 thread, 81 mm length.
• Mass: 72 g.
• Compliance:
  • UL Approval: cULus Listed, Class 2 Power Source.
  • CCC Approval: Not required for products rated ≤36 V.

Applications

• Industrial Automation: Facilitates precise distance measurement and reliable object detection in automated processes.
• Packaging Industry: Essential for accurate level monitoring and efficient material handling systems.
• Robotics: Crucial for obstacle detection, precise positioning, and navigation in robotic applications.
• Quality Control Systems: Ensures consistent product quality through accurate measurement and inspection.
• Manufacturing: Ideal for sensing presence, position, and fill levels in various manufacturing stages.
• Logistics: Enhances efficiency in warehousing and material flow by providing accurate distance data.

Why Choose This Model?

The Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15 stands out as a superior choice for industrial sensing due to its exceptional blend of precision, durability, and advanced connectivity. Its generous 90-2000 mm detection range coupled with robust temperature compensation ensures unparalleled accuracy across diverse operational conditions. The integrated IO-Link interface simplifies integration and provides comprehensive diagnostic capabilities, making it a truly smart sensor. Crafted from stainless steel and rated IP67, this sensor is built to withstand harsh environments, offering long-term reliability and reducing maintenance needs. With its flexible output options (current and voltage) and programmable features, the UC2000-30GM-IUEP-IO-V15 offers a highly adaptable solution for a wide array of demanding applications, making it a smart investment for optimizing your industrial processes.
