Pepperl+Fuchs UBE1000-18GM40-SE2-V1

Overview

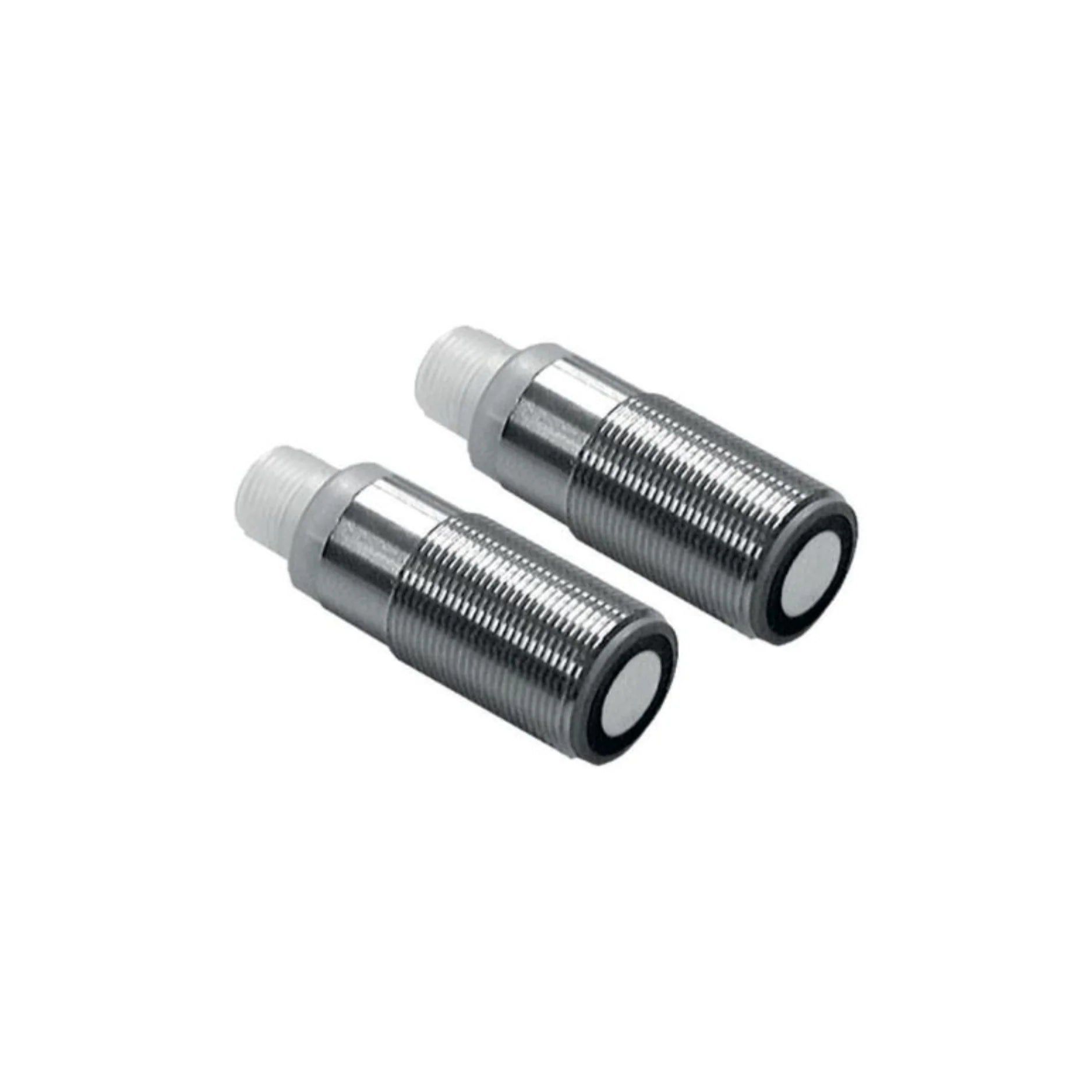

The Pepperl+Fuchs UBE1000-18GM40-SE2-V1 is a state-of-the-art M18 ultrasonic sensor engineered for exceptionally precise and dependable non-contact distance measurement across a broad spectrum of industrial applications. With a substantial sensing range of up to 1000 mm, this compact yet robust sensor excels in environments where traditional optical sensors may falter. Its intelligent design allows for the accurate detection of objects irrespective of their surface characteristics, color, or material composition. Even in challenging conditions such as dust, fog, or high humidity, the UBE1000-18GM40-SE2-V1 maintains excellent performance, making it an indispensable component for automating and optimizing production processes. This sensor (Part No. 205346) is housed in a durable M18 threaded barrel, ensuring easy integration and long-lasting reliability in demanding industrial settings.

Key Features

• Extended Sensing Range: Reliably detects objects from 100 mm to an impressive 1000 mm, offering versatile application possibilities.
• Configurable PNP Output: Features a switchable PNP output (normally open/normally closed) for seamless integration with diverse control systems.
• Wide Supply Voltage: Operates efficiently with a 10–30 VDC supply, enhancing compatibility with various power infrastructures.
• Rugged M18 Housing: Encased in a robust M18 x 1 cylindrical metal housing, built to withstand harsh industrial environments.
• Standard M12 Connection: Equipped with a convenient M12, 4-pin connector for fast and secure electrical hook-up.
• Superior IP67 Protection: Boasts an IP67 protection rating, guaranteeing optimal performance even when exposed to water and dust.
• Broad Temperature Range: Functions effectively across a wide operating temperature range from -25°C to +70°C.
• Effortless Teach-In Function: Simplified parameter setup via an intuitive teach-in function, reducing installation time and complexity.
• High Switching Frequency: Offers a typical switching frequency of ~10 Hz, ideal for dynamic detection tasks.
• Integrated LED Indicators: Provides clear visual feedback on sensor status and signal strength for easy monitoring.

Technical Specifications

• Model Number: UBE1000-18GM40-SE2-V1
• Part Number: 205346
• Measurement Principle: Ultrasonic diffuse mode, ensuring reliable detection across various targets.
• Minimum Sensing Distance: 100 mm
• Maximum Sensing Distance: 1000 mm
• Output Configuration: PNP, selectable Normally Open (NO) or Normally Closed (NC).
• Repeat Accuracy: Exceptional ±0.15% of full scale, providing highly consistent measurement results.
• Resolution: Superior resolution of ≤ 1 mm for fine-grained detection.
• Voltage Drop: Minimal voltage drop of ≤ 2.5 V, ensuring efficient power utilization.
• Load Current: Capable of handling a load current of ≤ 100 mA.
• Protection Features: Equipped with built-in short-circuit and reverse polarity protection for enhanced operational safety.
• Construction Material: Housing crafted from durable nickel-plated brass; sensing face made from high-quality plastic for optimal ultrasonic transmission.
• Weight: Approximately 50 g, facilitating easy handling and mounting.

Applications

The versatility and robustness of the Pepperl+Fuchs UBE1000-18GM40-SE2-V1 make it suitable for a diverse array of industrial applications, enhancing efficiency and accuracy:

• Precise Level Detection: Monitor and control fill levels in tanks, hoppers, and bins containing liquids, powders, or granular materials, preventing overfills or run-outs.
• Reliable Object Detection: Accurately detect challenging objects including transparent films, highly reflective surfaces, dark materials, or irregularly shaped items that are difficult for other sensor types.
• Optimized Packaging Lines: Ensure consistent product presence, correct positioning, and stack height within high-speed packaging and bottling lines.
• Efficient Material Handling: Facilitate automated distance measurement for conveyor systems, palletizing, and sorting applications, ensuring smooth material flow.
• Advanced Robotics Integration: Provide crucial non-contact sensing capabilities for robotic arms, autonomous vehicles, and safety zones, improving collision avoidance and alignment tasks.

Why Choose This Model?

Opting for the Pepperl+Fuchs UBE1000-18GM40-SE2-V1 means investing in unparalleled reliability, flexibility, and performance for your industrial sensing needs:

• Exceptional 1000 mm Range: Offers superior flexibility for a wide variety of applications, reducing the need for multiple sensor types.
• Unwavering Reliability: Delivers consistent and accurate detection in all lighting conditions and regardless of object surface or color, ensuring operational continuity.
• Adaptable PNP NO/NC Output: Provides configurable output options, allowing seamless integration and control flexibility within your existing systems.
• Industrial-Grade IP67 Protection: Engineered with a rugged IP67 enclosure, guaranteeing robust protection against water ingress and dust particles, even in the most demanding environments.
• Rapid & User-Friendly Setup: Features an intuitive Teach-in function and clear LED feedback for quick, hassle-free parameter configuration and operational status monitoring.
• Trusted Brand Quality: Benefits from Pepperl+Fuchs' reputation for high-quality, innovative sensor solutions, ensuring long-term performance and peace of mind.

Order Now

The Pepperl+Fuchs UBE1000-18GM40-SE2-V1 ultrasonic sensor is in stock and ready for immediate dispatch. Enhance your automation processes with this reliable and versatile sensor. We offer worldwide shipping to ensure you receive your essential components wherever you are. Secure your advanced sensing solution today and optimize your industrial operations.
