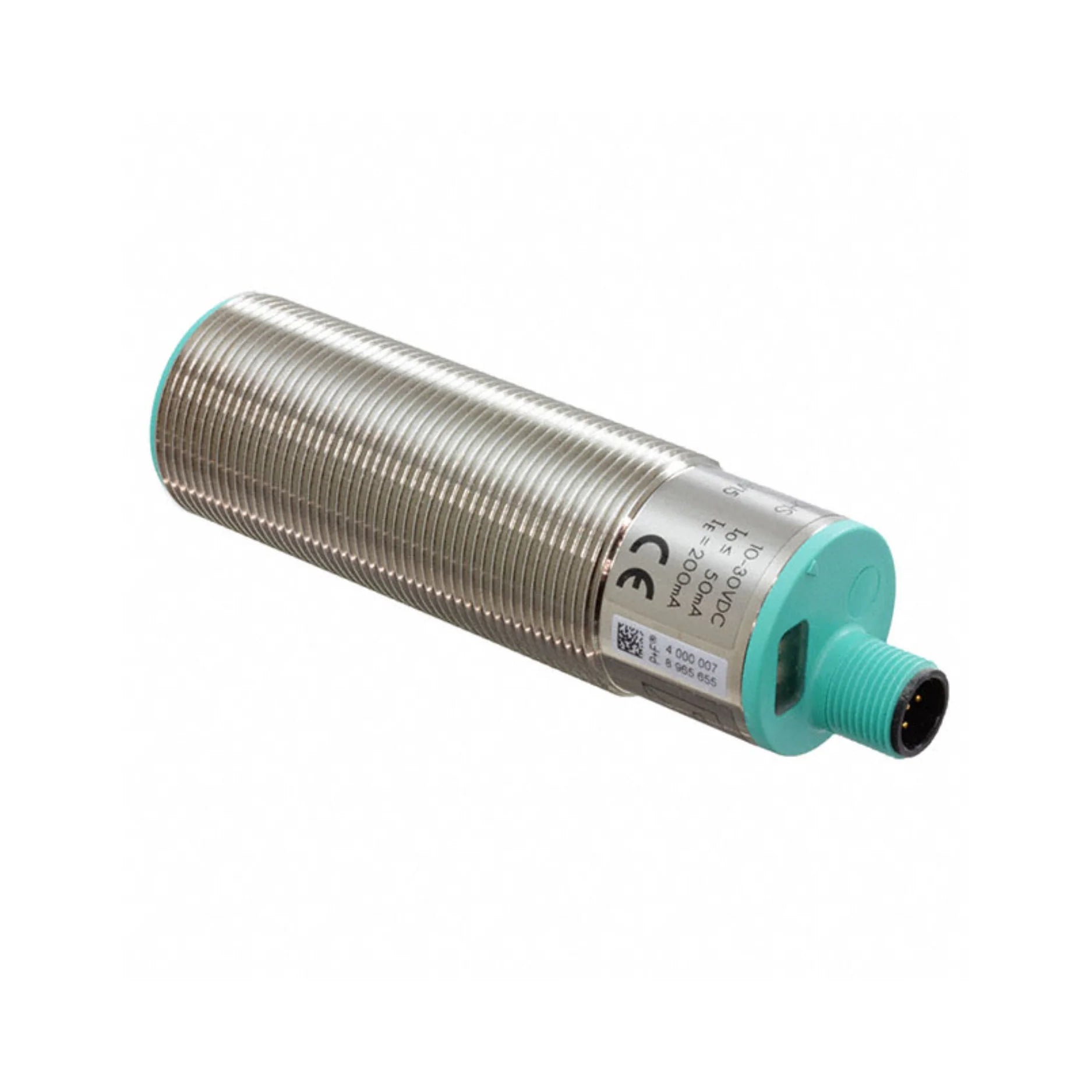

Pepperl+Fuchs UB500-30GM-E5-V15

Overview

Unlock unparalleled precision and reliability in your industrial applications with the Pepperl+Fuchs UB500-30GM-E5-V15 ultrasonic sensor. This robust M30 cylindrical sensor, identified by Part No. 097967, is engineered to provide highly accurate, non-contact distance measurement across a diverse range of materials and environments. Offering a versatile sensing range of up to 500 mm, it excels at detecting both solid objects and liquids, consistently delivering accurate results regardless of the target's color, transparency, or surface texture where optical sensors often falter. Its advanced analog output ensures seamless integration and flexible data interpretation for critical control systems. Designed for demanding industrial settings, the UB500-30GM-E5-V15 features a durable IP67-rated housing, providing superior protection against dust and water ingress, alongside a convenient V15 quick-disconnect connector for simplified installation and maintenance. This sensor is the ideal solution for enhancing efficiency and accuracy in a multitude of automation tasks.

Key Features

• Extended Sensing Range: Detect objects from 30 mm up to 500 mm with exceptional accuracy, providing flexibility for diverse application needs.
• Configurable Analog Output: Offers both 0–10 V and 4–20 mA options, allowing for precise, continuous feedback and easy integration into existing control systems.
• Robust M30 Cylindrical Housing: Constructed from nickel-plated brass, this durable, threaded housing ensures longevity and reliable performance in harsh industrial environments.
• Quick-Disconnect V15 Connector: A 4-pin V15 electrical connection simplifies wiring, reduces installation time, and enables easy replacement, minimizing downtime.
• Advanced Ultrasonic Technology: Guarantees reliable object detection irrespective of material composition, color, transparency, or surface characteristics, outperforming conventional optical sensors.
• Superior IP67 Protection: Fully protected against dust and capable of withstanding temporary immersion in water, ensuring dependable operation even in challenging conditions.
• Integrated LED Indicators: Provides clear and immediate visual feedback on the sensor's operating status, facilitating quick troubleshooting and monitoring.

Technical Specifications

• Model: UB500-30GM-E5-V15
• Part Number: 097967
• Operating Range: 30 mm to 500 mm
• Output Signal: Analog (Freely configurable for 0–10 V or 4–20 mA)
• Power Supply: 10–30 VDC
• Temperature Range: -25°C to +70°C
• Response Time: ≤ 300 ms
• Housing Material: High-grade nickel-plated brass
• Mounting: Standard M30 threaded, designed for flush installation
• Protection Class: IP67

Applications

The versatility and precision of the Pepperl+Fuchs UB500-30GM-E5-V15 make it an indispensable component across numerous industrial sectors:

• Accurate Level Detection: Monitor liquid and solid media levels in tanks, silos, and hoppers with consistent accuracy, crucial for inventory management and process control.
• Precise Distance Measurement: Essential for positioning, anti-collision systems, and general automation feedback, ensuring optimal machine operation and safety.
• Efficient Packaging & Material Handling: Provides reliable non-contact sensing of various objects on conveyor belts, enabling smooth and automated sorting, counting, and package verification.
• Detection of Challenging Objects: Effectively detects transparent films, shiny surfaces, and dark materials where optical sensors often fail, broadening application possibilities.
• Robotics and Automated Guided Vehicles (AGVs): Ideal for navigation, obstacle avoidance, and precise stopping in robotic systems and AGV fleets.

Why Choose This Model?

The Pepperl+Fuchs UB500-30GM-E5-V15 stands out as a superior choice for your sensing requirements due to its blend of advanced technology and robust design:

• Unwavering Reliability: Experience consistent and accurate detection across a vast array of materials and surface conditions, fostering greater operational consistency.
• Flexible Analog Output: Configure the output to suit your specific measurement and control needs, ensuring seamless integration into diverse automation architectures.
• Industrial Durability: The compact yet rugged M30 housing, coupled with an IP67 rating, guarantees exceptional longevity and performance in even the most demanding industrial environments.
• Optimized for Efficiency: From quick installation to reliable, maintenance-free operation, this sensor is designed to improve overall system efficiency and reduce operational costs.
• Trusted Brand Quality: As a product from Pepperl+Fuchs, a leader in industrial sensor technology, you receive a solution backed by decades of expertise and innovation.

Order Now

Enhance your industrial automation processes today with the Pepperl+Fuchs UB500-30GM-E5-V15 ultrasonic sensor. This high-performance sensor is available and ready to ship globally, ensuring you can quickly implement a reliable and precise sensing solution into your operations. Invest in proven technology and secure your competitive edge.
