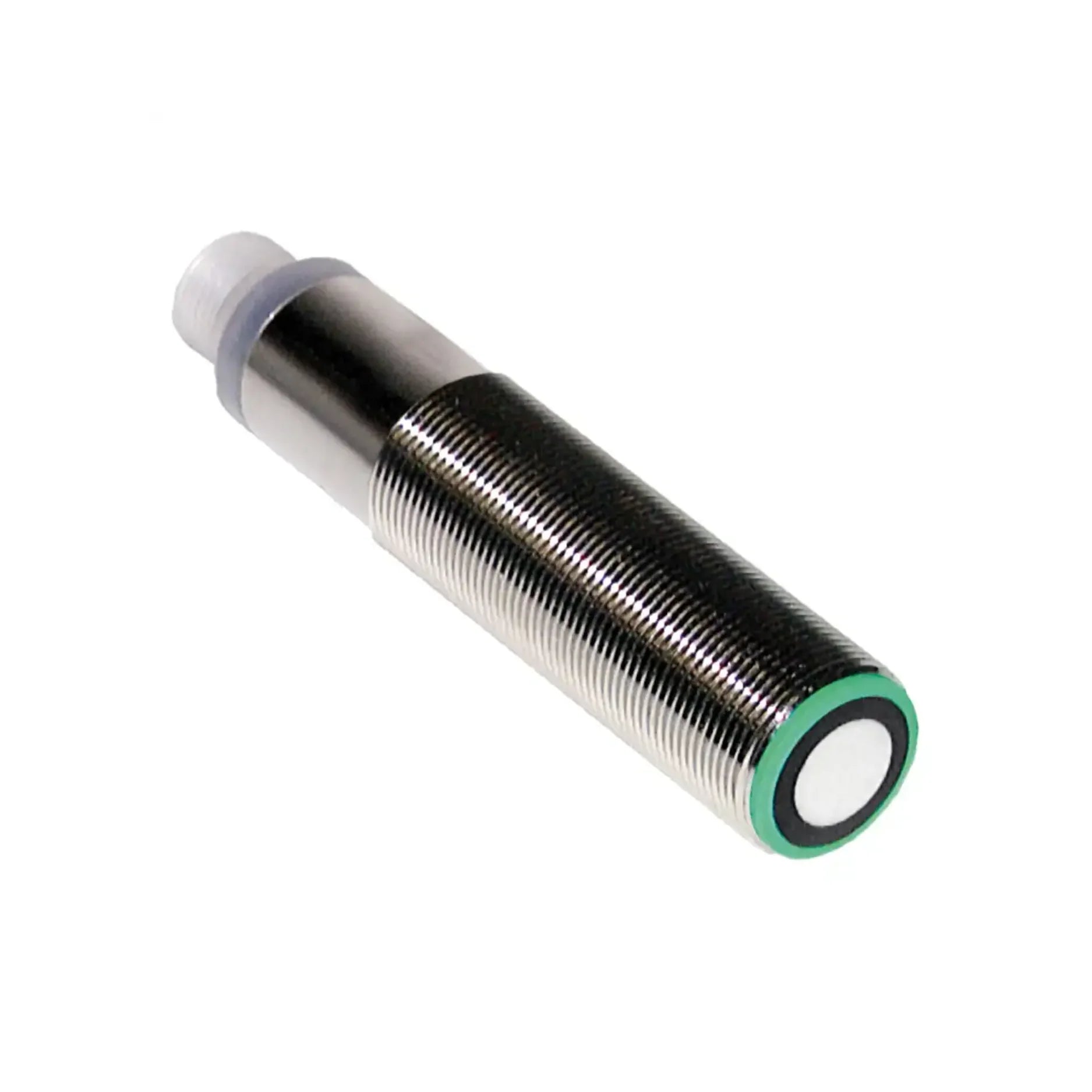

Pepperl+Fuchs UB500-18GM75-U-V15 M18 ultrasonic sensor with 30–500 mm range, 0–10V analog output, adjustable beam width, and IP67-rated housing.

Pepperl+Fuchs UB500-18GM75-U-V15

$304.00
$304.00
Skip to product information
Pepperl+Fuchs UB500-18GM75-U-V15 M18 ultrasonic sensor with 30–500 mm range, 0–10V analog output, adjustable beam width, and IP67-rated housing.
  • Pepperl+Fuchs UB500-18GM75-U-V15 M18 ultrasonic sensor with 30–500 mm range, 0–10V analog output, adjustable beam width, and IP67-rated housing.
  • Pepperl+Fuchs UB500-18GM75-U-V15 M18 ultrasonic sensor with 30–500 mm range, 0–10V analog output, adjustable beam width, and IP67-rated housing.
Pepperl+Fuchs UB500-18GM75-U-V15

Pepperl+Fuchs UB500-18GM75-U-V15

$304.00
$304.00

Overview

The Pepperl+Fuchs UB500-18GM75-U-V15 is an advanced M18 ultrasonic sensor engineered for unparalleled accuracy and reliability in non-contact distance measurement across diverse industrial settings. This compact yet powerful sensor boasts a versatile sensing range of 30 to 500 mm, delivering exceptional precision for even the most demanding applications. Equipped with a standard 0–10V analog output, it seamlessly integrates into existing control systems, providing continuous and accurate data. Its robust M18 nickel-plated brass housing ensures superior durability, complemented by an IP67 protection rating that guarantees optimal performance in challenging and harsh environmental conditions. Further enhancing its adaptability, the UB500-18GM75-U-V15 offers an adjustable sound beam width and sophisticated synchronization options, making it an ideal solution for a multitude of industrial automation tasks requiring flexible and high-performance sensing.

Key Features

  • Sensing Range: Precise detection from 30 to 500 mm.
  • Adjustment Range: Fine-tuned operation between 50 to 500 mm.
  • Dead Band: Minimal blind zone from 0 to 30 mm.
  • Output Type: Reliable 0–10V analog output for seamless integration.
  • Adjustable Sound Beam Width: User-selectable wide or narrow beam for optimized application performance.
  • Synchronization Options: Bi-directional synchronization capability to prevent crosstalk in multi-sensor configurations.
  • Temperature Compensation: Integrated compensation ensures consistent measurement accuracy across varying temperatures.
  • Housing: Durable M18 nickel-plated brass construction with an IP67 rating for extreme environments.
  • Indicators: Clear yellow and red LEDs provide instant status and error feedback.
    •

Technical Specifications

  • Model Number: UB500-18GM75-U-V15
  • Transducer Frequency: Approximately 380 kHz for accurate detection.
  • Response Delay: Approximately 50 ms for rapid response.
  • Operating Voltage: Wide input range of 15 to 30 V DC.
  • No-Load Supply Current: Efficient operation with ≤ 50 mA.
  • Resolution: High resolution of 0.11 mm at the maximum sensing range.
  • Deviation of Characteristic Curve: Minimal deviation of ±1% of full-scale value.
  • Repeat Accuracy: Exceptional repeatability of ±0.1% of full-scale value.
  • Load Impedance: > 1 kΩ.
  • Temperature Influence: Low temperature influence of ±1.5% of full-scale value.
  • Ambient Temperature Range: Robust operation from -25°C to +70°C (-13°F to +158°F).
  • Storage Temperature Range: -40°C to +85°C (-40°F to +185°F).
  • Connection Type: Standard M12 x 1, 5-pin connector for easy installation.
  • Dimensions: Compact design with a length of 85 mm and diameter of 18 mm.
  • Weight: Lightweight at approximately 60 g.
  • Compliance: Meets industry standards EN IEC 60947-5-2:2020; cULus Listed, Class 2 Power Source.

Applications

  • Level Measurement: Precisely monitor liquid and solid levels in tanks, hoppers, and silos.
  • Object Detection: Ensure reliable presence and absence detection in conveyor systems, automated assembly, and packaging lines.
  • Distance Measurement: Implement accurate positioning and control in intricate robotics and automated assembly processes.
  • Loop Control: Effectively monitor and regulate material loops in critical web processing and manufacturing operations.

Why Choose This Model?

The Pepperl+Fuchs UB500-18GM75-U-V15 stands out as a superior choice for a multitude of industrial sensing needs due to its unparalleled combination of precision, durability, and flexibility. Its high-resolution sensing capabilities and accurate analog output ensure that your systems receive reliable data, minimizing costly errors and optimizing operational efficiency. The innovative adjustable sound beam allows for tailored performance, adapting effortlessly to specific application requirements and environmental conditions. Built to last, its robust nickel-plated brass housing with an IP67 rating provides exceptional resistance against harsh industrial elements, guaranteeing long-term, dependable operation. Furthermore, the UB500-18GM75-U-V15 offers seamless integration into complex multi-sensor environments through its advanced synchronization options, effectively preventing crosstalk and maintaining data integrity. Invest in this M18 ultrasonic sensor to enhance the accuracy, reliability, and cost-effectiveness of your industrial automation processes.

Order Now

Elevate your industrial automation capabilities with the Pepperl+Fuchs UB500-18GM75-U-V15 M18 Ultrasonic Sensor. Experience superior precision, robust construction, and versatile integration. This high-performance sensor is available for immediate shipping worldwide, ready to optimize your operations.
