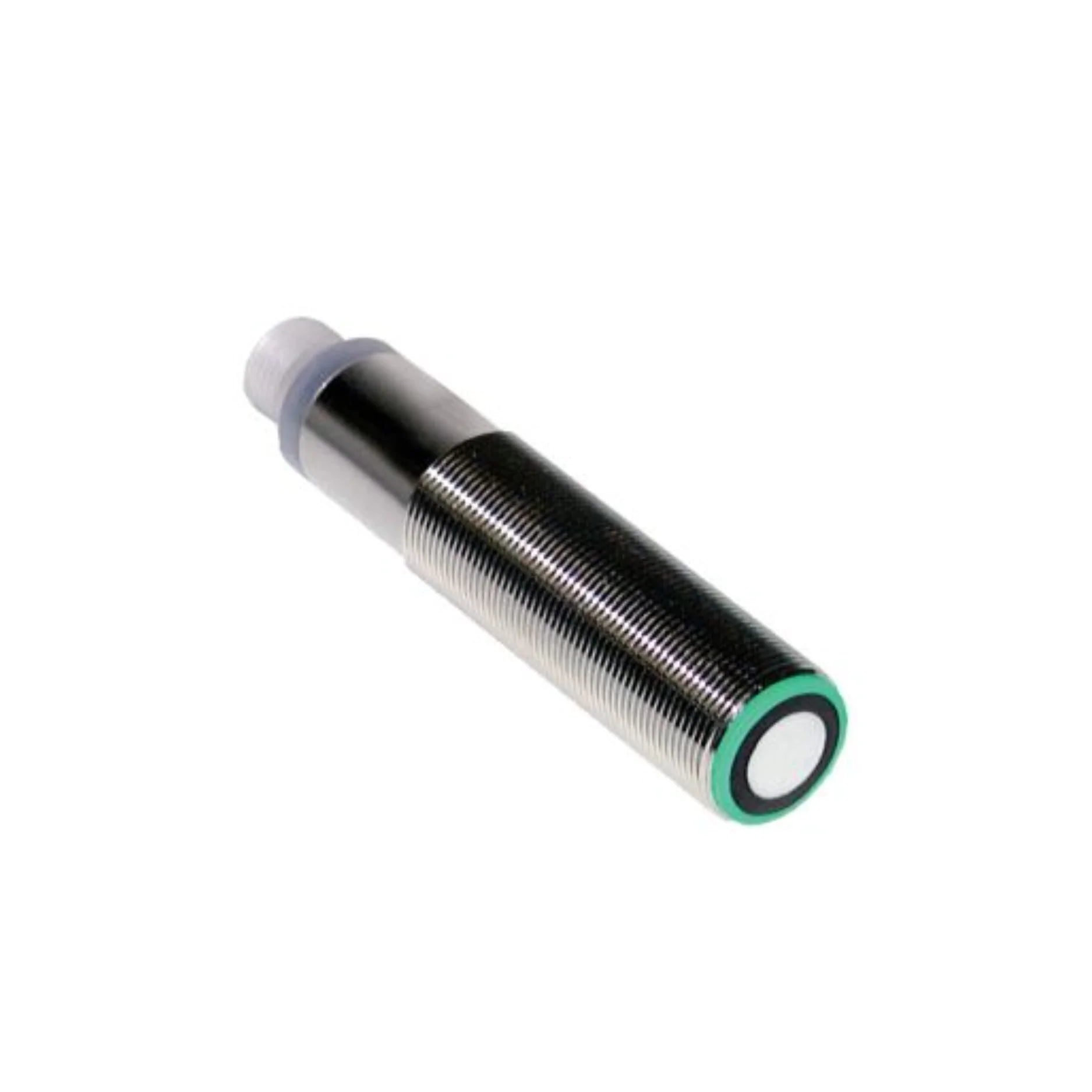

Pepperl+Fuchs UB500-18GM75-E6-V15

Overview

The Pepperl+Fuchs UB500-18GM75-E6-V15 (Part No. 130228) is a state-of-the-art M18 ultrasonic sensor engineered for unparalleled precision in analog distance measurement. With a robust sensing range of up to 500 mm, this compact device offers exceptional reliability in industrial automation environments. Its advanced non-contact detection technology ensures consistent performance irrespective of target material characteristics like texture, transparency, or color, making it a superior alternative in applications where traditional photoelectric sensors may falter. Designed for demanding conditions, this sensor provides accurate and repeatable measurements, empowering a wide array of industrial processes with reliable data.

Key Features

• Measuring Range: 30–500 mm, providing flexible application possibilities.
• Output Type: Analog (0–10 V), offering continuous and precise feedback for control systems.
• Supply Voltage: 10–30 VDC, ensuring broad compatibility with industrial power supplies.
• Housing Type: M18 x 1, crafted from durable nickel-plated brass for enhanced longevity.
• Connection: M12 4-pin connector, facilitating quick and secure installation.
• Protection Class: IP67, guaranteeing resistance to dust and temporary immersion in water.
• Temperature Range: -25°C to +70°C, suitable for operation in diverse industrial climates.
• Teach-in Function: Simplifies configuration of the sensing range for optimal performance.
• Switching Frequency: Approximately 20 Hz, ensuring timely detection updates.
• LED Display: Provides clear visual indication of signal and output status.

Technical Specifications

• Model Number: UB500-18GM75-E6-V15
• Part Number: 130228
• Sensor Type: Ultrasonic, diffuse mode, for versatile detection.
• Minimum Sensing Distance: 30 mm
• Maximum Sensing Distance: 500 mm
• Output Signal: Analog 0–10 V, providing proportional distance information.
• Linearity Deviation: ≤ 1% of full scale, ensuring high measurement accuracy.
• Repeat Accuracy: ±0.15%, for consistent and reliable performance over time.
• Resolution: ≤ 1 mm, capturing even minute changes in distance.
• Current Consumption: ≤ 30 mA, for energy-efficient operation.
• Load Resistance (Analog): ≥ 2 kΩ
• Material: Housing – nickel-plated brass; Sensing face – plastic, combining robustness with sensitivity.
• Weight: Approximately 45 g, for easy integration into various setups.

Applications

• Level Monitoring: Accurately detect fill levels in storage tanks, hoppers, and containers, guaranteeing optimal process control.
• Packaging & Bottling Lines: Precisely measure the spacing and position of products, enhancing automation and preventing bottlenecks.
• Material Handling: Provides crucial analog feedback for sophisticated control loops in conveying and sorting systems.
• Clear Object Detection: Superior capability in detecting transparent or highly reflective surfaces, where other sensor types might fail.
• Machine Automation: Offers reliable non-contact position measurement for various robotic and automated machinery tasks.

Why Choose This Model?

The Pepperl+Fuchs UB500-18GM75-E6-V15 stands out as a premier choice for industrial sensing. Its ability to provide highly reliable analog distance feedback up to 500 mm is critical for applications demanding precision. This sensor's performance remains unaffected by the color, transparency, or lighting conditions of the target object, offering consistent and dependable operation in challenging environments. The durable IP67-rated nickel-plated brass housing ensures robust protection against dust and water ingress, extending its operational lifespan in harsh industrial settings. Furthermore, its easy installation is facilitated by a standard M12 connector, simplifying setup and reducing downtime. Its compact design allows for seamless integration even in space-constrained machinery and tight application areas, making it an exceptionally versatile and valuable component for modern industrial automation.

Order Now

Elevate your industrial automation with the precision and reliability of the Pepperl+Fuchs UB500-18GM75-E6-V15 ultrasonic sensor. This advanced sensing solution is readily available and ships worldwide, ensuring you can enhance your operations no matter your location. Contact us today to secure this essential component for your critical applications.
