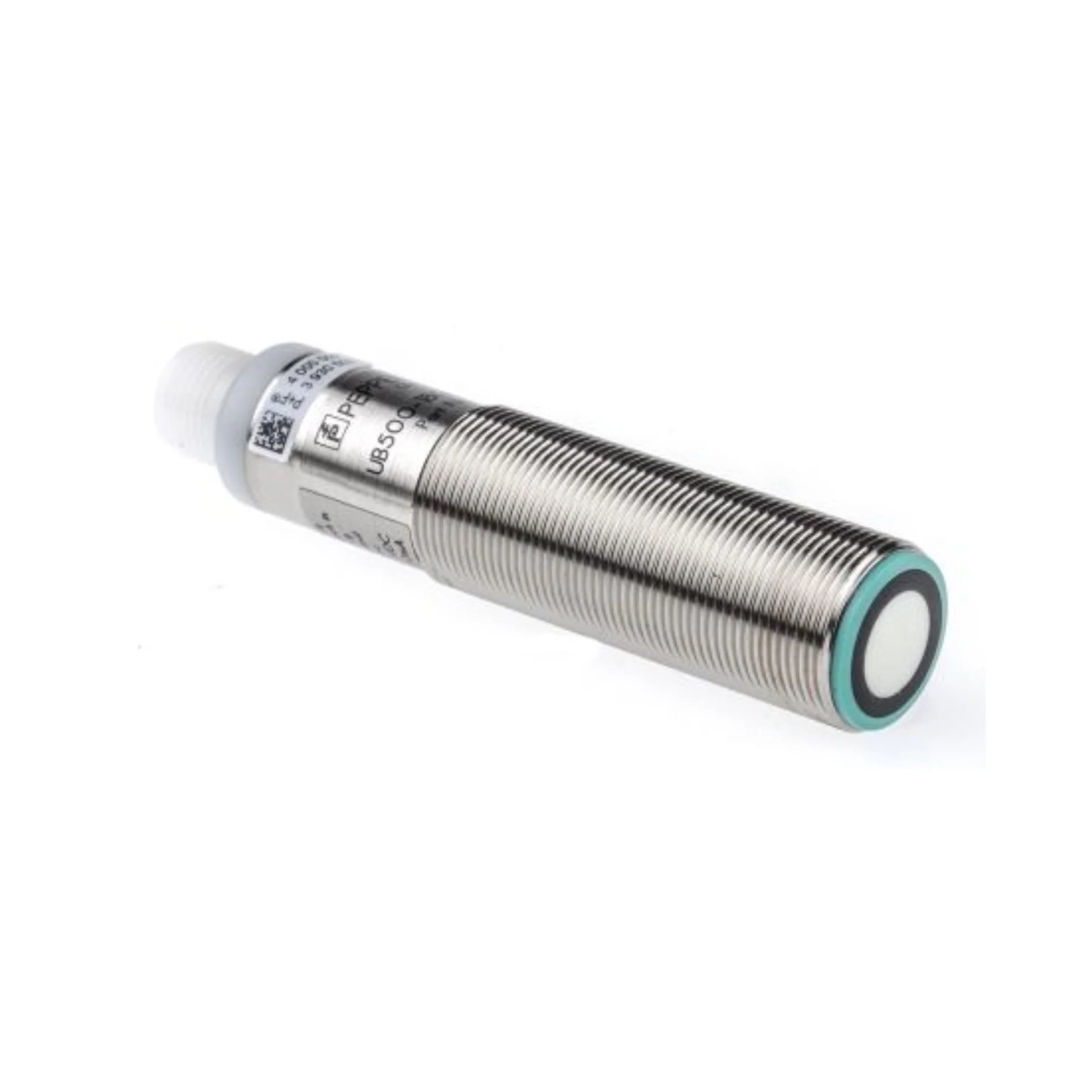

Pepperl+Fuchs UB500-18GM75-E5-V15

Overview

Elevate your industrial automation with the Pepperl+Fuchs UB500-18GM75-E5-V15 Ultrasonic Sensor, a high-performance solution engineered for precise and reliable object detection. This advanced ultrasonic sensor excels in demanding environments, offering unparalleled accuracy across a 30 to 500mm sensing range. Designed to meet the rigorous standards of modern manufacturing, it provides a robust, non-contact sensing method ideal for a multitude of applications where traditional sensors fall short. Its intelligent design and durable construction ensure consistent performance, making it an indispensable component for optimizing your operational efficiency and reducing downtime.

The UB500-18GM75-E5-V15 stands out with its flexible configuration options and robust build, guaranteeing long-term stability and ease of integration. Whether you're managing complex material handling systems or intricate robotics, this sensor delivers the precision and reliability you need to maintain seamless operations.

Key Features

• Extended Sensing Range: Accurately detects objects from 30 mm to 500 mm, offering versatility for various applications.
• Flexible Adjustment Range: Customizable detection from 50 mm to 500 mm to suit specific operational requirements.
• Minimal Dead Band: A tight 0 to 30 mm dead band ensures detection of objects even in close proximity.
• Configurable Output Type: Features a PNP output, programmable for Normally Open (NO) or Normally Closed (NC) operation, enhancing adaptability.
• Wide Operating Voltage: Compatible with 10 to 30 V DC power supplies, accommodating standard industrial electrical systems.
• High-Frequency Transducer: Operates at approximately 380 kHz for stable and reliable ultrasonic wave generation.
• Rapid Response Delay: Swift response time of approximately 50 ms ensures timely detection and system reactions.
• Standardized Connection: Equipped with a convenient 5-pin M12 connector for quick and secure installation.
• Superior Protection Rating: IP67-rated housing provides excellent protection against dust and water ingress, ideal for harsh industrial settings.
• Broad Operating Temperature: Functions reliably across a wide temperature range from -25°C to 70°C (-13°F to 158°F).
• Intuitive Indicators: Features a yellow LED for switching state confirmation and a red LED for error diagnostics, simplifying troubleshooting.

Technical Specifications

• Model: UB500-18GM75-E5-V15
• Series: UB500
• Synchronization: Bidirectional synchronous connection capability, allowing for coordinated sensor operation.
• Input Impedance: > 12 kΩ for stable signal integration.
• Switching Frequency: Achieves an impressive switching frequency of up to 8 Hz, suitable for dynamic processes.
• Repeat Accuracy: Exceptional repeat accuracy of ≤ 1% ensures consistent and dependable measurements over time.
• Temperature Influence: Minimized temperature influence with a deviation of ±1.5% of the full-scale value, maintaining accuracy across varying conditions.
• Housing Material: Crafted from durable nickel-plated brass, providing long-lasting protection and corrosion resistance.
• Transducer Material: Constructed from an epoxy resin/hollow glass sphere mixture with a protective polyurethane foam cover, optimizing acoustic performance and durability.

Applications

The versatility and high performance of the Pepperl+Fuchs UB500-18GM75-E5-V15 ultrasonic sensor make it an ideal choice for a diverse range of industrial applications, including:

• Material Handling: Essential for precise object detection on conveyor systems, ensuring smooth product flow, sorting, and positioning.
• Packaging: Reliably measures fill levels in hoppers and silos, preventing overflows and ensuring consistent packaging processes.
• Automotive Industry: Crucial for presence detection in assembly lines, enhancing safety and automating production stages.
• Robotics: Provides critical obstacle detection for autonomous navigation systems, improving robot safety and efficiency in complex environments.
• Process Control: Monitors material levels, distances, and positions in various manufacturing and processing applications.
• Wood and Furniture Industry: Detects wood panels, ensures precise material positioning, and prevents collisions in machinery.
• Food and Beverage: Non-contact detection for hygiene-sensitive applications, monitoring levels of liquids and granular products.

Why Choose This Model?

The Pepperl+Fuchs UB500-18GM75-E5-V15 is more than just an ultrasonic sensor; it's a strategic investment in the reliability and efficiency of your industrial operations. Here's why it stands apart:

• Flexible Output Configuration: Its programmable PNP output (Normally Open/Closed) offers unparalleled adaptability, allowing you to seamlessly integrate it into diverse control systems without complex modifications.
• Robust Design for Harsh Environments: With an IP67 rating, this sensor is engineered to withstand challenging industrial conditions, including exposure to dust, water, and extreme temperatures. The nickel-plated brass housing provides exceptional durability and corrosion resistance, ensuring a long operational lifespan.
• Easy and Rapid Integration: The industry-standard 5-pin M12 connector simplifies installation significantly, reducing setup time and effort. This plug-and-play capability minimizes downtime and accelerates deployment.
• Advanced Features for Superior Performance: Benefit from a bidirectional synchronous connection for coordinated multi-sensor setups and advanced temperature compensation, which maintains accuracy even in fluctuating thermal conditions. These features collectively ensure highly reliable and consistent detection results.
• Proven Pepperl+Fuchs Quality: As a product from Pepperl+Fuchs, you can trust in its superior engineering, consistent quality, and global support, guaranteeing peace of mind and sustained performance.

Order Now

Enhance the precision and efficiency of your industrial automation systems today. The Pepperl+Fuchs UB500-18GM75-E5-V15 Ultrasonic Sensor is available for prompt shipping, ready to integrate into your existing infrastructure. Invest in a reliable, high-performance sensing solution that delivers accurate, non-contact detection across a wide array of applications. Optimize your operations and secure a competitive edge with this industry-leading ultrasonic sensor. Contact us or place your order now to experience the difference.
