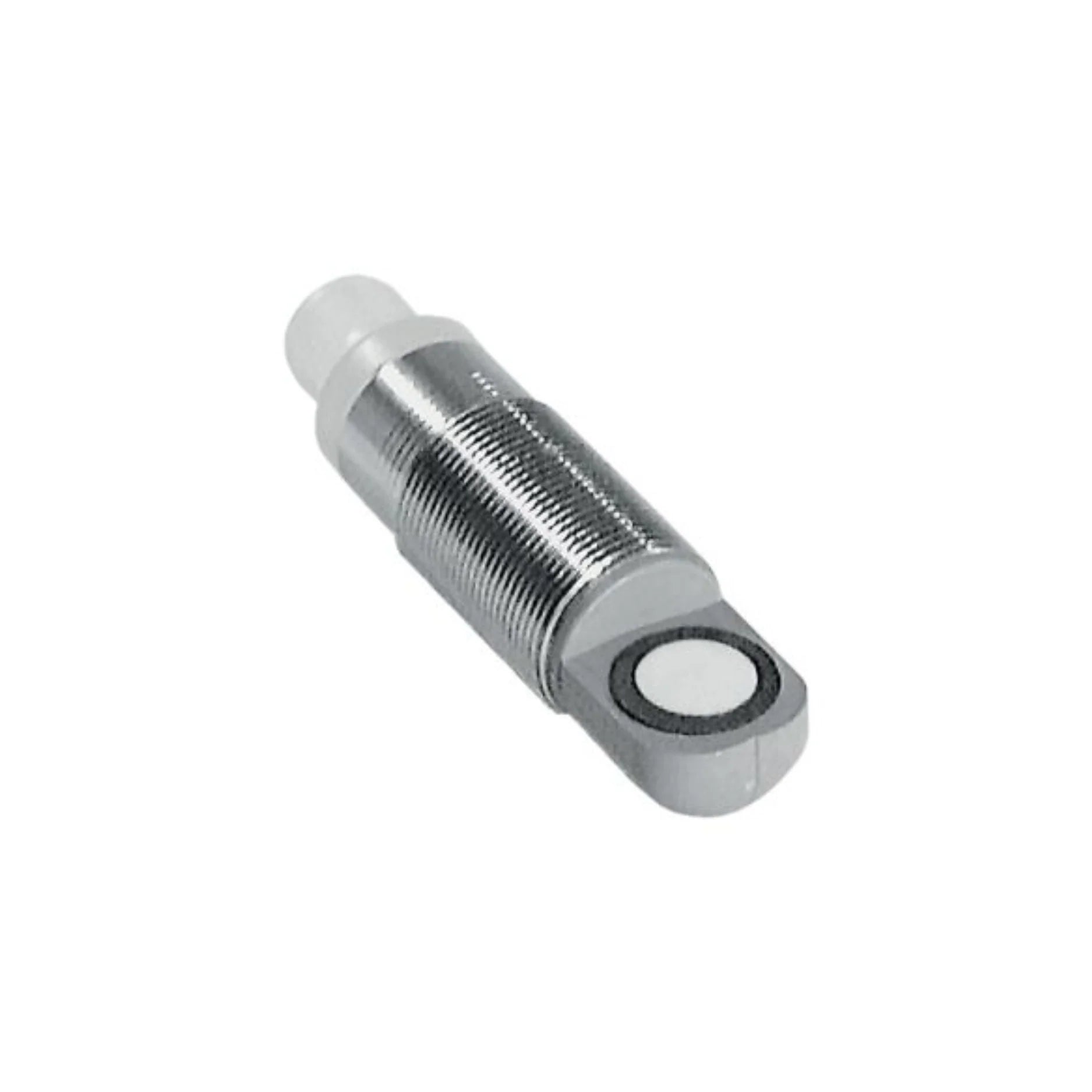

Pepperl+Fuchs UB300-18GM40-U-V1

Overview

The Pepperl+Fuchs UB300-18GM40-U-V1 is a state-of-the-art M18 ultrasonic sensor engineered for unparalleled precision in non-contact distance measurement. This robust sensor excels in a compact form factor, providing exceptional performance across a sensing range of 35 to 300 mm. Integrated with 0–10 V analog output, it ensures continuous and highly accurate data for a multitude of industrial automation tasks. Its resilient construction, highlighted by an IP67 protection rating, guarantees sustained reliability and operational longevity even within the most demanding industrial environments. This makes the UB300-18GM40-U-V1 an ideal solution where exact distance sensing and steadfast performance are paramount.

Key Features

• Extended Sensing Range: Accurately measures distances from 35 mm to 300 mm, offering broad applicability across diverse industrial scenarios.
• Versatile Analog Output: Equipped with a 0–10 V analog output, facilitating seamless integration and continuous, precise distance monitoring in control systems.
• Ultra-Compact M18 Design: Features a short 40 mm housing, enabling flexible installation in space-constrained applications without compromising performance.
• 360° Visible Indicators: Incorporates function indicators that are clearly visible from all angles, simplifying status checks and operational monitoring.
• Customizable Measuring Window: Offers an adjustable measuring window, allowing users to precisely define the detection range to meet specific application requirements.
• Advanced Temperature Compensation: Built-in temperature compensation mechanisms ensure consistent and reliable measurement accuracy, regardless of ambient temperature fluctuations.
• Robust Housing and IP67 Protection: Constructed with a durable nickel-plated brass housing and an IP67 rating, providing superior resistance against dust, water, and harsh environmental conditions.
• Convenient Program Input: Includes a dedicated program input for effortless configuration and fine-tuning of sensor settings, optimizing operational efficiency.

Technical Specifications

• Model Number: UB300-18GM40-U-V1
• Sensing Range: 35 to 300 mm
• Adjustment Range: 50 to 300 mm
• Dead Band: 0 to 35 mm
• Standard Target Plate: 100 mm x 100 mm
• Transducer Frequency: Approximately 390 kHz
• Response Delay: Approximately 50 ms
• Operating Voltage (UB): 15 to 30 V DC, ripple ≤ 10%
• No-Load Supply Current (I0): ≤ 20 mA
• Input Type: 1 program input for setting evaluation limits
• Output Type: 1 analog output 0–10 V
• Resolution: 0.4 mm at maximum sensing range
• Deviation of Characteristic Curve: ±1% of full-scale value
• Repeat Accuracy: ±0.5% of full-scale value
• Load Impedance: > 1 kΩ
• Temperature Influence: ±1.5% of full-scale value
• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Housing Material: Nickel-plated brass
• Transducer Material: Epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
• Degree of Protection: IP67
• Connection Type: M12 x 1 connector plug, 4-pin
• Dimensions: Length 40 mm, Diameter 18 mm
• Weight: Approximately 25 g
• Compliance:
  • Standards: EN IEC 60947-5-2:2020, EN 60947-5-7:2003
  • Approvals: cULus Listed, Class 2 Power Source; CE; UKCA

Applications

The Pepperl+Fuchs UB300-18GM40-U-V1 ultrasonic sensor is a versatile solution for a wide array of industrial applications requiring precise and reliable distance measurement:

• Material Handling & Logistics: Optimally suited for detecting and positioning objects on conveyor belts, ensuring accurate sorting, routing, and packaging processes.
• Packaging Industry: Guarantees precise distance measurements for consistent packaging alignment, contributing to enhanced product quality and reduced material waste.
• Automotive Manufacturing: Integral for detecting component presence and positioning during assembly lines, critical for maintaining stringent quality control and operational efficiency.
• Level Measurement & Process Control: Provides continuous and accurate monitoring of fill levels in tanks, hoppers, and containers, enabling efficient process automation and inventory management.
• Robotics & Automation: Offers essential distance feedback for robotic systems, facilitating obstacle avoidance, precise navigation, and accurate object manipulation tasks in complex automated environments.

Why Choose This Model?

The Pepperl+Fuchs UB300-18GM40-U-V1 stands out as a superior choice for industrial sensing applications due to its exceptional combination of features:

• Unmatched Precision: Delivers highly accurate and repeatable distance measurements, critical for applications where even slight deviations can impact performance.
• Designed for Demanding Environments: With its robust nickel-plated brass housing and IP67 protection, this sensor is built to withstand challenging industrial conditions, ensuring long-term reliability and minimal downtime.
• Compact and Adaptable: Its M18 form factor and short 40 mm housing allow for easy integration into tight spaces, offering flexibility in machine design and installation.
• Reliable Performance: Features like temperature compensation, broad operating voltage, and comprehensive compliance (cULus, CE, UKCA) underscore its dependable operation across various scenarios.
• Ease of Integration and Use: The 0–10 V analog output provides seamless compatibility with existing control systems, while the program input and visible indicators simplify setup and monitoring.
• Trusted Brand Quality: Pepperl+Fuchs is a globally recognized leader in industrial sensor technology, assuring you of a product built to the highest standards of quality and innovation.

Order Now

Elevate your industrial automation processes with the precision and reliability of the Pepperl+Fuchs UB300-18GM40-U-V1 M18 Ultrasonic Sensor. Invest in superior sensing technology to enhance efficiency, accuracy, and durability in your operations. Contact us today or visit our website to place your order and inquire about custom solutions or bulk purchasing options. Our experts are ready to assist you in integrating this advanced ultrasonic sensor into your specific application needs, ensuring optimal performance and long-term satisfaction.
