Overview

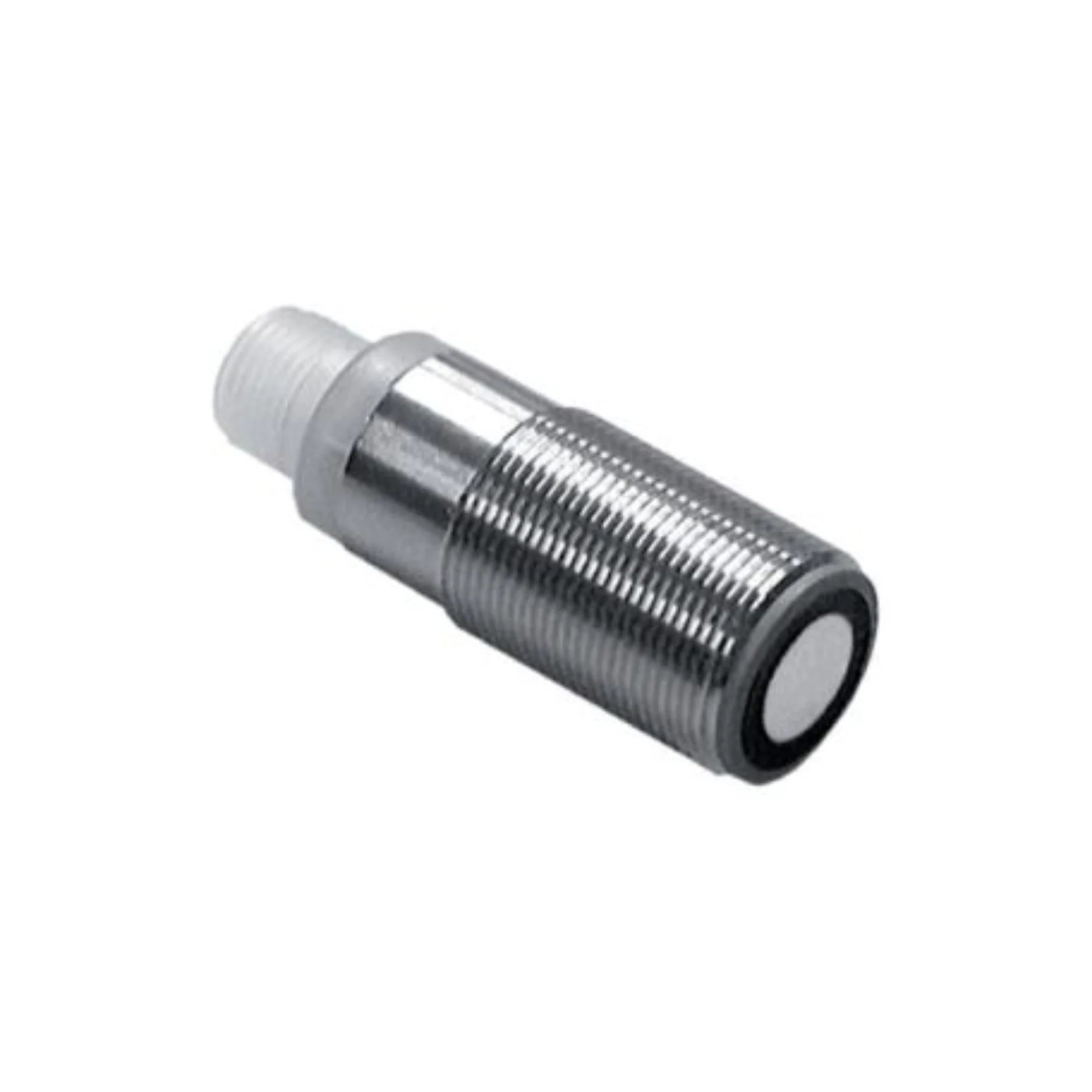

The Pepperl+Fuchs UB300-18GM40-I-V1 is an advanced M18 ultrasonic sensor engineered for unparalleled accuracy in non-contact distance measurement within demanding industrial environments. This compact yet powerful sensor boasts an impressive sensing range of 35 to 300 mm, making it exceptionally versatile for a multitude of applications. Its integrated 4–20 mA analog output ensures seamless integration into existing control systems, providing reliable data for process optimization. Designed with efficiency in mind, its short 40 mm housing allows for effortless installation even in the most spatially constrained applications. The robust construction and IP67 protection rating guarantee consistent and dependable performance, empowering industries with precise object detection and distance measurement capabilities.

Key Features

• Precision Sensing Range: Accurately detects objects from 35 to 300 mm, offering flexibility for diverse industrial tasks.
• Standardized Analog Output: Features a 4–20 mA current output for straightforward integration with industrial control and automation systems.
• Ultra-Compact Form Factor: The innovative 40 mm housing facilitates installation in tight or limited-space applications, optimizing design freedom.
• Omni-Directional Status Indicators: Clearly visible function indicators from all angles ensure convenient and rapid status monitoring, minimizing downtime.
• Customizable Measuring Window: Provides the ability to precisely adjust the detection range, tailoring the sensor's operation to specific application requirements.
• Simplified Configuration: An intuitive program input allows for easy setup, parameterization, and fine-tuning of sensor performance.
• Integrated Temperature Compensation: Ensures stable and accurate measurements across a broad spectrum of operating temperatures, guaranteeing reliability.
• Durable Industrial Design: Constructed with a nickel-plated brass housing and an IP67 rating, offering superior protection against dust and water ingress in harsh environments.
• Wide Operating Voltage: Compatible with a 10 to 30 V DC power supply, enhancing its adaptability across various industrial setups.

Technical Specifications

• Model Number: UB300-18GM40-I-V1
• Sensing Range: 35 to 300 mm
• Adjustment Range: 50 to 300 mm
• Dead Band: 0 to 35 mm
• Standard Target Plate: 100 mm x 100 mm
• Transducer Frequency: Approximately 390 kHz
• Response Delay: Approximately 50 ms
• Indicators:
  • Green LED: Power on
  • Yellow LED: Solid when object is in evaluation range; flashing during program function when object is detected
  • Red LED: Solid when error occurs; flashing during program function when object is not detected
• Operating Voltage: 10 to 30 V DC, ripple ≤ 10%
• No-Load Supply Current: ≤ 20 mA
• Input Type: 1 program input
• Output Type: 1 analog output 4–20 mA, short-circuit/overload protected
• Resolution: 0.4 mm at maximum sensing range
• Deviation of Characteristic Curve: ±1% of full-scale value
• Repeat Accuracy: ±0.5% of full-scale value
• Load Impedance: 0 to 300 Ohm
• Temperature Influence: ±1.5% of full-scale value
• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Housing Material: Nickel-plated brass
• Transducer Material: Epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
• Degree of Protection: IP67
• Connection Type: M12 x 1 connector plug, 4-pin
• Dimensions:
  • Length: 40 mm
  • Diameter: 18 mm
• Weight: Approximately 25 g
• Compliance:
  • Standards: EN IEC 60947-5-2:2020, IEC 60947-5-2:2019, EN 60947-5-7:2003, IEC 60947-5-7:2003
  • Approvals: cULus Listed, Class 2 Power Source; CCC approval not required for products rated ≤36 V

Applications

• Material Handling: Precise object detection, level control, and positioning in conveyor systems, automated storage, and retrieval systems (AS/RS).
• Packaging and Logistics: Accurate presence detection, stack height measurement, and fill level monitoring for efficient packaging and shipping operations.
• Factory Automation: Reliable distance measurement for robotic arm positioning, machine guarding, and assembly line quality control.
• Automotive Industry: Non-contact detection for component assembly verification, robotic guidance, and autonomous vehicle sensor integration.
• Food and Beverage: Level detection in tanks, fill level monitoring for containers, and hygienic process control where non-contact sensing is crucial.
• Plastic and Rubber Processing: Monitoring material levels in hoppers, detecting web breaks, and ensuring precise positioning in manufacturing.

Why Choose This Model?

The Pepperl+Fuchs UB300-18GM40-I-V1 stands out as an exceptional choice for industrial professionals seeking a reliable, high-performance ultrasonic sensor. Its compact 40 mm housing, coupled with an M18 diameter, enables seamless integration into applications where space is at a premium without compromising on functionality. The wide 35 to 300 mm sensing range provides unparalleled versatility, accommodating a diverse array of object detection and distance measurement tasks. With a robust nickel-plated brass construction and an IP67 rating, this sensor is built to withstand the rigors of harsh industrial environments, ensuring long-term operational stability and reduced maintenance. The standard 4–20 mA analog output guarantees effortless compatibility with standard control systems, simplifying installation and data exchange. Furthermore, features such as visible indicators, an adjustable measuring window, and temperature compensation underscore Pepperl+Fuchs' commitment to delivering user-friendly, precise, and dependable solutions for critical industrial automation needs.
