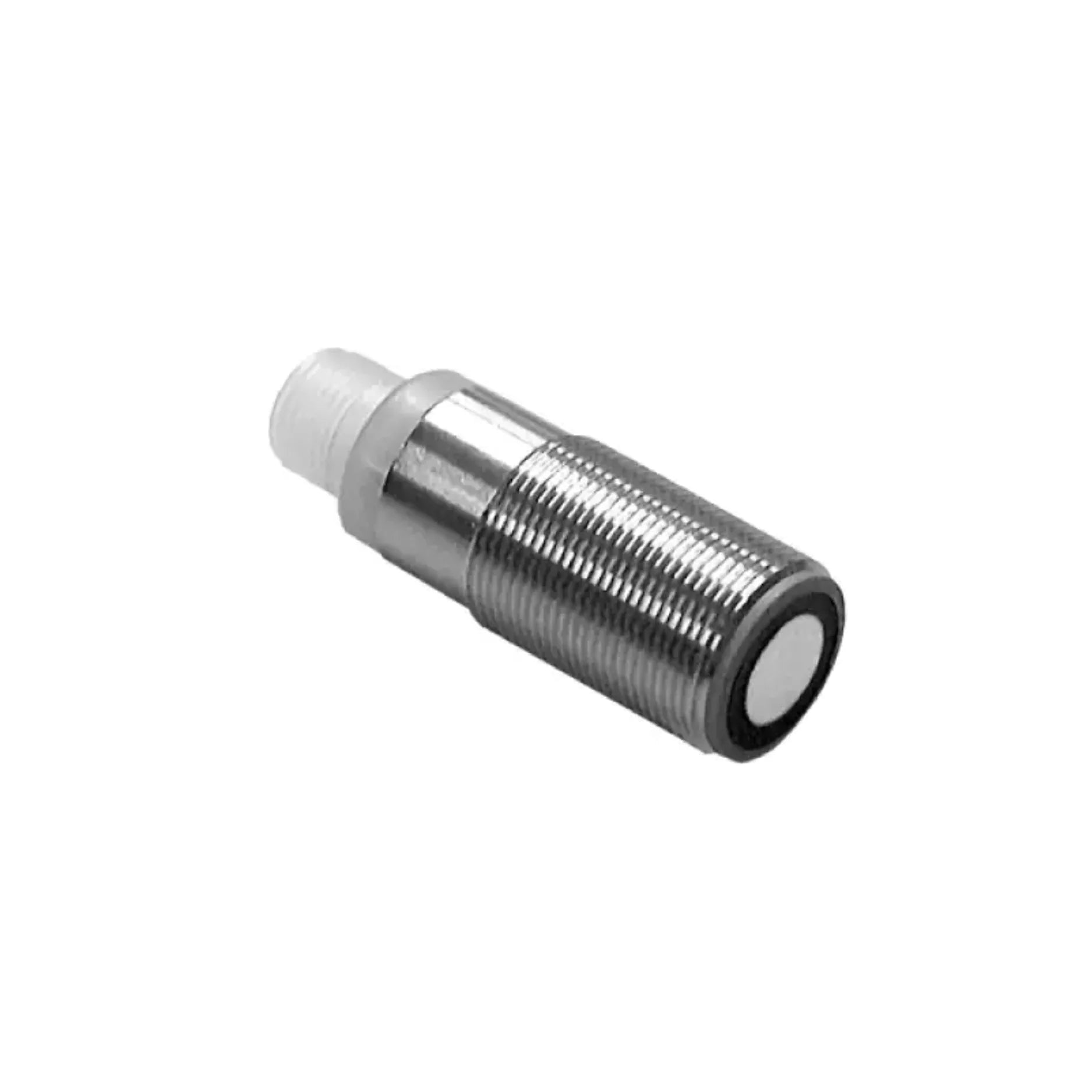

Pepperl+Fuchs UB300-18GM40-E5-V1

Overview

The Pepperl+Fuchs UB300-18GM40-E5-V1 (Part Number: 220357) is a high-performance, proximity-mode ultrasonic sensor designed for robust and accurate non-contact object detection across diverse industrial environments. Engineered to deliver exceptional reliability, this sensor boasts an impressive detection range of 20 mm to 300 mm, making it a versatile solution for a multitude of applications. Its core strength lies in its ability to consistently perform even in challenging conditions where optical sensors might falter, such as environments characterized by dust, highly reflective surfaces, or the presence of transparent materials. With a standard M18 threaded housing for straightforward integration and a PNP normally open (NO) output, coupled with a reliable M12 connector, the UB300-18GM40-E5-V1 ensures seamless compatibility and dependable operation within your existing systems. This sensor embodies Pepperl+Fuchs' commitment to providing advanced, durable, and precise sensing technology for modern industrial automation needs.

Key Features

• Extended Sensing Range: Accurately detects objects from 20 mm up to 300 mm, offering flexibility for various applications.
• PNP Normally Open (NO) Output: Provides a clear switching signal for direct integration into control systems.
• Wide Power Supply Range: Operates efficiently with a 10–30V DC power supply, ensuring broad compatibility.
• Robust M18 Threaded Housing: Features a durable nickel-plated brass M18 threaded metal housing for secure and long-lasting installation.
• Standard M12 Connection: Equipped with a 4-pin M12 connector for quick, reliable, and industry-standard electrical hook-up.
• Integrated Status Indicators: Bright LED indicators for echo perception and power status provide immediate operational feedback.
• Rapid Response Time: Engineered for fast switching, making it ideal for dynamic applications requiring quick object detection.
• High Ultrasonic Frequency: Utilizes a ~380 kHz ultrasonic frequency for precise and stable detection.
• IP67 Protection: Guarantees excellent protection against dust and water ingress, ensuring reliable operation in harsh industrial settings.

Technical Specifications

• Model Number: UB300-18GM40-E5-V1
• Part Number: 220357
• Detection Range: 20 mm to 300 mm
• Output Type: PNP NO
• Supply Voltage: 10–30V DC
• Current Consumption: ≤ 35 mA
• Max Output Current: 100 mA
• Voltage Drop: ≤ 2 V
• Ultrasonic Frequency: 380 kHz
• Switching Frequency: 5 Hz
• Response Time: 100 ms
• Protection Class: IP67
• Housing Material: Nickel-plated brass
• Connection: M12 x 1, 4-pin
• Operating Temperature: -25°C to +70°C
• Mounting Type: Threaded M18 with locknuts

Applications

• Packaging Machinery: Essential for precise detection of packages, bottles, or other containers, ensuring accurate presence sensing and fill level monitoring.
• Material Handling Systems: Excellently suited for sensing non-metallic, irregularly shaped, or acoustically soft objects on conveyor belts or within automated material flow.
• Level Measurement: Provides accurate and continuous distance measurement to both solid and liquid surfaces in tanks and hoppers, irrespective of material color or transparency.
• Food & Beverage Industry: Its robust design and IP67 rating make it ideal for use in splash zones and for detecting clear containers, aligning with stringent hygiene requirements.
• Automotive Manufacturing: Reliable for presence detection of various components, including painted or plastic parts, overcoming challenges of varying surface finishes.
• Wood Processing: Effective in detecting raw wood, planks, or panels where dust and irregular surfaces are common.

Why Choose This Model?

Opting for the Pepperl+Fuchs UB300-18GM40-E5-V1 ultrasonic sensor means investing in unparalleled reliability and performance for your industrial automation needs. This model stands out due to its exceptional ability to deliver consistent and accurate object detection in conditions that typically challenge conventional sensing technologies. Its ultrasonic principle allows it to bypass obstacles like dust, fog, and changes in ambient light, making it a superior choice for environments where optical sensors might fail. The robust, IP67-rated nickel-plated brass housing ensures maximum durability and a long operational lifespan, even when exposed to harsh industrial chemicals, vibrations, or washdown procedures. Furthermore, the standard M18 threaded body and M12 connector simplify installation and integration, significantly reducing setup time and maintenance efforts. With advanced features such as fast response times and precise 380 kHz frequency, the UB300-18GM40-E5-V1 provides an intelligent, cost-effective solution that enhances productivity and minimizes downtime across a wide array of applications. Choose Pepperl+Fuchs for a sensor that consistently performs, protecting your investment and streamlining your operations.

Order Now

Enhance your automation processes with the superior reliability and precision of the Pepperl+Fuchs UB300-18GM40-E5-V1 ultrasonic sensor. Available now for fast and efficient global shipping directly to your facility. Secure this robust and versatile sensor today to optimize your object detection capabilities and ensure seamless operation across all your demanding industrial applications. Don't compromise on quality or performance—choose Pepperl+Fuchs for advanced sensing solutions. Click to add to cart and experience the difference.
