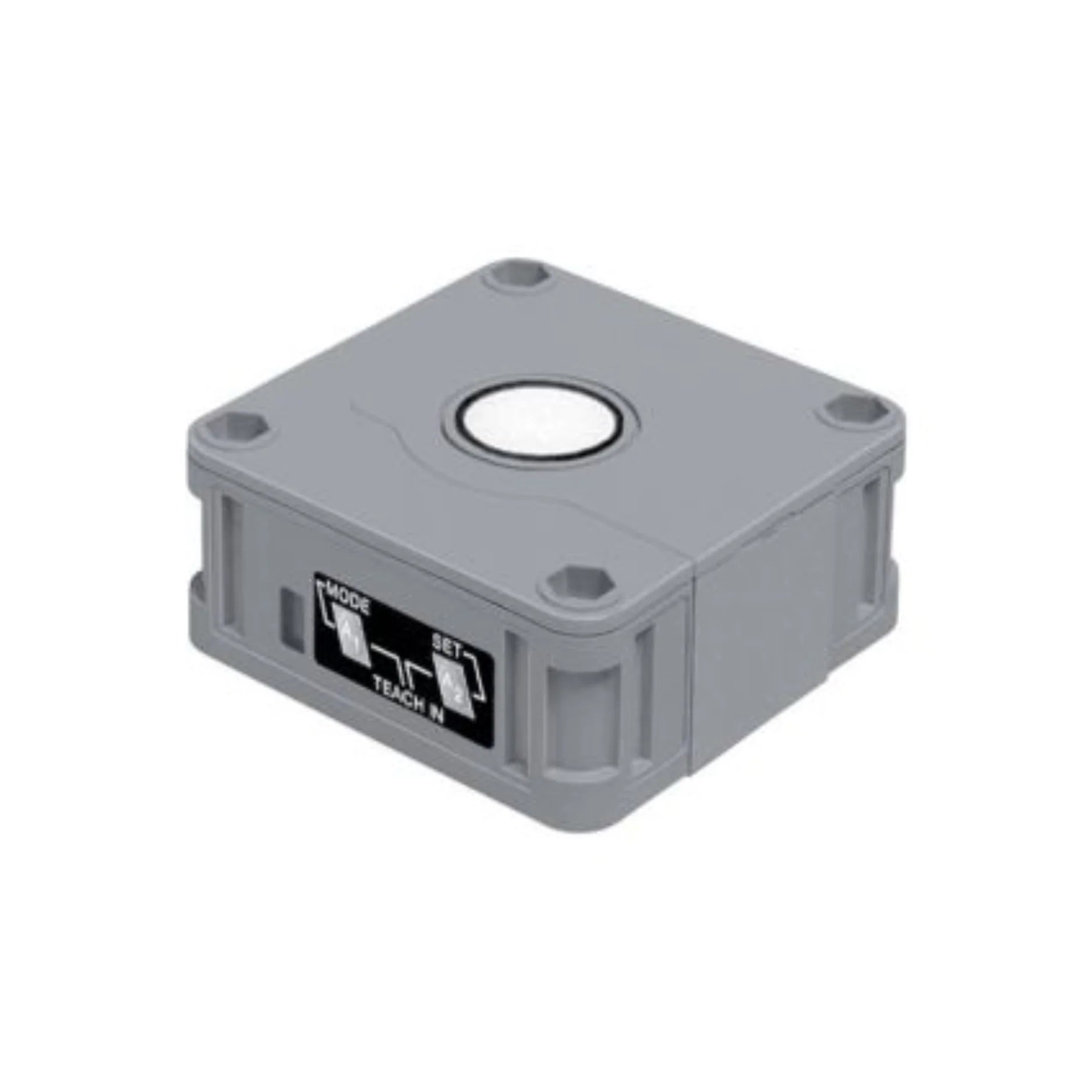

Pepperl+Fuchs UB2000-F42-E6-V15

Overview

Experience unparalleled precision and adaptability with the Pepperl+Fuchs UB2000-F42-E6-V15 ultrasonic sensor. Engineered for demanding industrial environments, this state-of-the-art sensor delivers reliable object detection across an expansive 60 to 2000 mm range. Its innovative design incorporates two independent PNP switch outputs, offering superior flexibility as each can be configured as normally open (NO) or normally closed (NC). Integration into existing systems is seamless, and its robust functionality ensures consistent performance where accuracy is paramount. The UB2000-F42-E6-V15 stands out with its intuitive TEACH-IN function for rapid calibration and an adjustable sound beam divergence, allowing for bespoke interference suppression in complex or confined spaces. This sensor is an indispensable tool for enhancing efficiency and reliability in a multitude of automation applications.

Key Features

• Sensing Range: Highly precise detection from 60 mm up to 2000 mm.
• Adjustment Range: Fine-tune detection from 90 mm to 2000 mm for optimal application fit.
• Dead Band: Minimal dead band of 0 to 60 mm ensures detection of objects close to the sensor.
• Outputs: Two independent PNP switch outputs, user-selectable as NO or NC, for versatile control.
• TEACH-IN Functionality: Simplifies setup and calibration, reducing commissioning time and effort.
• Adjustable Sound Beam Divergence: Customize the sensing zone to effectively suppress interference in critical areas.
• Temperature Compensation: Guarantees consistent and accurate measurement results across a wide range of operating temperatures.
• Synchronization Options: Supports bi-directional synchronization, enabling multiple sensors to operate without mutual interference.
• Clear Indicators: Equipped with a green LED for power status, yellow LEDs for switching states of outputs, and a red LED for fault indication.
• Operating Voltage: Broad operating voltage of 10 to 30 V DC for widespread compatibility.
• No-Load Supply Current: Efficient operation with a typical no-load supply current of ≤ 50 mA.
• Response Delay: Rapid response time of approximately 150 ms for quick detection.
• Switching Frequency: High switching frequency of up to 2.7 Hz captures fast-moving objects.
• Protection Rating: IP54 protection ensures reliable performance in dusty and splash-prone environments.
• Operating Temperature Range: Robust operation from -25°C to +70°C (-13°F to +158°F).
• Housing Material: Durable ABS housing with a PBT transducer cover for sustained durability.
• Connection: Convenient 5-pin M12 connector for easy and secure installation.

Technical Specifications

• Model Number: UB2000-F42-E6-V15
• Series: F42
• Transducer Frequency: Approximately 175 kHz, providing excellent resolution.
• Repeat Accuracy: Exceptional repeat accuracy of ≤ 0.5% of switching point.
• Range Hysteresis: Optimized range hysteresis of 1% of the set operating distance.
• Voltage Drop: Minimal voltage drop of ≤ 2.5 V.
• Rated Operating Current: 200 mA, protected against short-circuit and overload.
• Synchronization Input: Configurable 0 Level (-UB to +1 V) and 1 Level (+4 V to +UB).
• Input Impedance: High input impedance of > 12 kΩ.
• Synchronization Pulse: Efficient synchronization with pulse duration ≥ 100 µs.
• Synchronization Interpulse Period: Optimal interpulse period of ≥ 2 ms.
• Compliance: Adheres to EN IEC 60947-5-2:2020 and IEC 60947-5-2:2019 standards.
• Approvals: Proudly cULus Listed under Class 2 Power Source; CCC not required for products rated ≤36 V.

Applications

• Material Handling: Precise object detection on conveyor belts and within automated sorting systems, ensuring smooth operations.
• Packaging: Critical for presence detection and accurate positioning of products in high-speed packaging lines.
• Automotive: Reliable component detection in various stages of automotive assembly processes, contributing to quality control.
• Warehouse Automation: Essential for accurate level detection in storage bins, silos, and other containers, optimizing inventory management.
• General Automation: A versatile solution for a myriad of general automation tasks requiring non-contact sensing.

Why Choose This Model?

The Pepperl+Fuchs UB2000-F42-E6-V15 is not just another sensor; it's a strategic investment in precision and operational efficiency. Its dual independent outputs offer unparalleled flexibility, allowing you to configure each PNP output as either NO or NC to perfectly match your control system's requirements. The intuitive user-friendly TEACH-IN functionality drastically simplifies setup and calibration, enabling rapid deployment and minimizing downtime. With its adjustable sound beam, you gain the power to customize the detection area, effectively mitigating interference from surrounding structures or objects, ensuring only the target is detected. Crafted with a robust ABS housing and an IP54 rating, this sensor is engineered for longevity and reliable operation even in the most challenging industrial environments. Furthermore, with its comprehensive LED indicators for power, output states, and fault conditions, you get instant visual feedback, making troubleshooting and monitoring straightforward. Choose the UB2000-F42-E6-V15 for a sensor that delivers consistent, high-performance object detection, enhancing your automation capabilities and optimizing your operational workflow.

Order Now

Elevate your automation systems with the superior performance of the Pepperl+Fuchs UB2000-F42-E6-V15 ultrasonic sensor. Ready for immediate shipping worldwide, ensure your operations benefit from this cutting-edge technology. Experience accuracy, reliability, and ease of integration by adding this essential component to your industrial ecosystem today.
