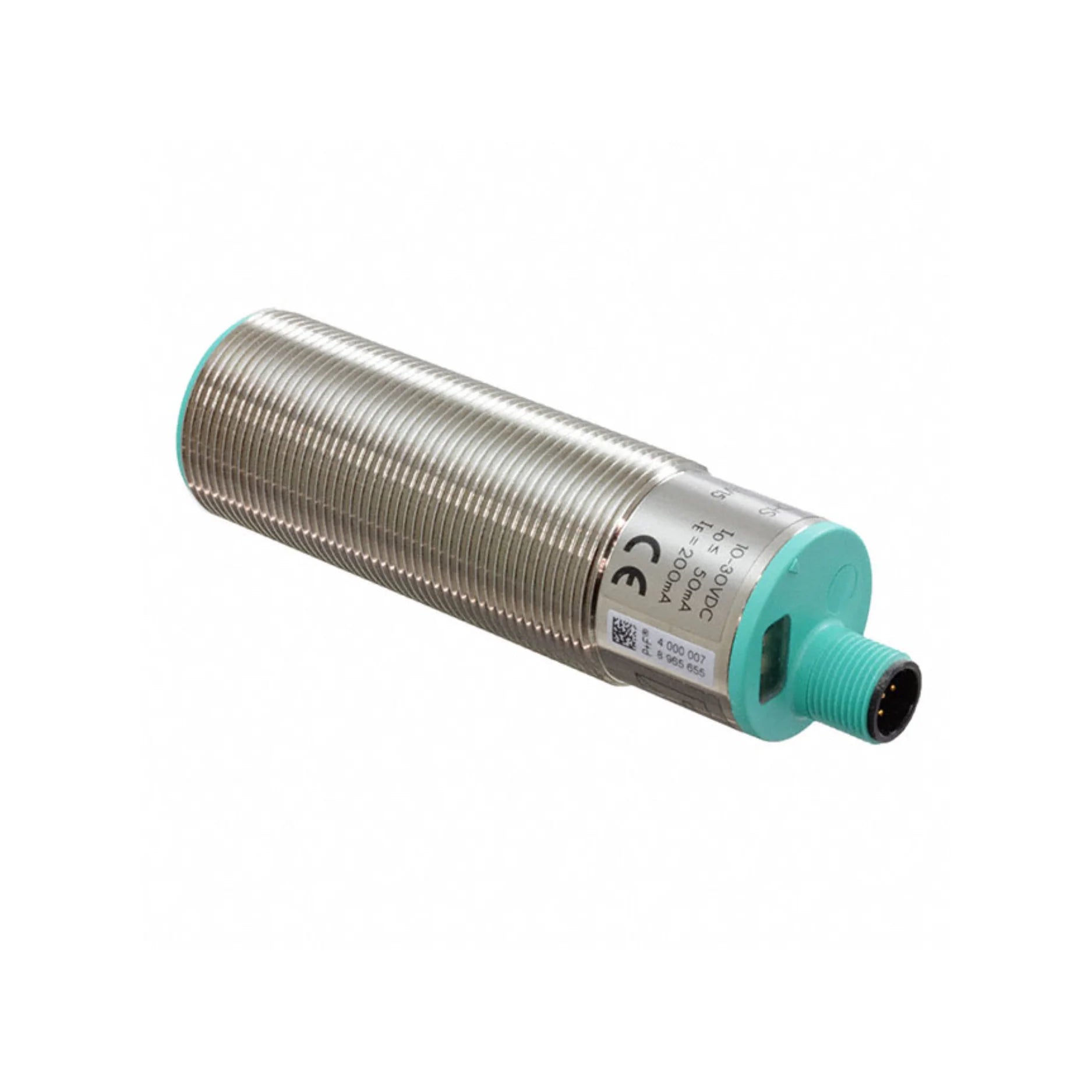

Pepperl+Fuchs UB2000-30GM-E5-V15

Overview

The Pepperl+Fuchs UB2000-30GM-E5-V15 (Part Number: 097969) redefines precision and reliability in long-range object detection. As a leading solution in ultrasonic sensing technology, this robust M30 metal-housed sensor is engineered to provide consistent and accurate detection across a remarkable range of up to 2000 mm. Its advanced ultrasonic frequency of approximately 120 kHz allows it to reliably sense a diverse array of materials, including those that are typically challenging for other sensor types, such as transparent, colored, or highly reflective objects. Integrated with a PNP normally open (NO) output and a convenient M12 connector, the UB2000-30GM-E5-V15 is not just a component; it's a foundation for enhanced automation and control in various industrial environments. Its dependable performance ensures seamless operation, reducing downtime and improving overall efficiency in your applications.

Key Features

• Extended Sensing Range: Detect objects effortlessly from 250 mm up to an impressive 2000 mm, offering unparalleled flexibility for diverse applications.
• Versatile Output Type: Equipped with a reliable PNP, normally open (NO) output for straightforward integration into existing control systems.
• High-Frequency Operation: Operates at an ultrasonic frequency of approximately 120 kHz, ensuring stable and accurate detection of even the most challenging targets.
• Standardized Connection: Features a robust M12 4-pin connector for quick, secure, and industry-standard electrical hook-up.
• Durable Housing: Encased in a sturdy M30 threaded cylindrical metal housing, designed for resilience in demanding industrial settings.
• Clear LED Indicators: Provides instant visual feedback with dedicated LEDs for echo status and power, simplifying setup and fault diagnosis.
• Superior Environmental Protection: Boasts an IP67 protection rating, guaranteeing optimal performance in dusty, wet, and harsh operating conditions.

Technical Specifications

• Model Number: UB2000-30GM-E5-V15
• Part Number: 097969
• Detection Range: 250 mm to 2000 mm
• Output Type: PNP NO
• Supply Voltage: 10–30V DC
• Current Consumption: ≤ 40 mA
• Maximum Output Current: 100 mA
• Switching Frequency: 5 Hz
• Response Time: 96 ms
• Voltage Drop: ≤ 2 V
• Operating Temperature Range: -25°C to +70°C
• Protection Rating: IP67
• Housing Material: Nickel-plated brass
• Connection Type: M12 x 1, 4-pin
• Mounting Style: M30 threaded with included nuts
• Compliance: CE, cULus compliant

Applications

The versatility and reliability of the Pepperl+Fuchs UB2000-30GM-E5-V15 make it an invaluable asset across a multitude of industrial applications:

• Material Handling Systems: Excellently suited for detecting boxes, packages, or containers on conveyor belts or in automatic storage and retrieval systems, even at considerable distances.
• Precision Level Sensing: Provides accurate and continuous monitoring of fill levels for liquids, granules, or bulk solids in storage tanks, silos, or hoppers, irrespective of material color or transparency.
• Advanced Packaging Equipment: Offers dependable sensing for clear films, irregularly shaped products, or diverse packaging materials, enhancing throughput and reducing errors in automated packaging lines.
• Automated Storage and Retrieval Systems (AS/RS): Ideal for object detection and position control within wide warehousing aisles or in complex automated guided vehicle (AGV) pathfinding, ensuring safe and efficient material flow.
• Automotive Industry: Useful in assembly lines for component presence detection and robotic guidance where traditional sensors may struggle with varied surface finishes.

Why Choose This Model?

The Pepperl+Fuchs UB2000-30GM-E5-V15 stands out as a superior choice for your sensing needs due to its blend of innovative features and robust design:

• Unmatched Extended Range: With an impressive sensing capability of up to 2 meters, this sensor eliminates the need for multiple short-range sensors, simplifying system design and reducing installation costs in applications requiring long-distance detection.
• Universal Object Detection: Unlike optical sensors, this ultrasonic model detects virtually any object regardless of its color, surface texture, transparency, or material composition, ensuring consistent and reliable operation where others fail.
• Built for Durability: Housed in premium nickel-plated brass and featuring an IP67 rating, this sensor is designed to withstand the harshest industrial environments, including exposure to dust, moisture, and temperature fluctuations, guaranteeing a long operational lifespan.
• Seamless Integration: Its standard M12 connection and 3-wire DC setup facilitate quick and easy integration into existing or new control systems, minimizing installation time and complexity.
• Pepperl+Fuchs Reliability: Backed by the renowned quality and engineering excellence of Pepperl+Fuchs, you can trust in the consistent performance and long-term reliability of the UB2000-30GM-E5-V15.

Order Now

Elevate your automation capabilities with the Pepperl+Fuchs UB2000-30GM-E5-V15 ultrasonic sensor. Experience superior long-range detection, unmatched reliability, and robust construction engineered for demanding industrial environments. Available for fast worldwide shipping, ensure your operations benefit from this cutting-edge technology today.
