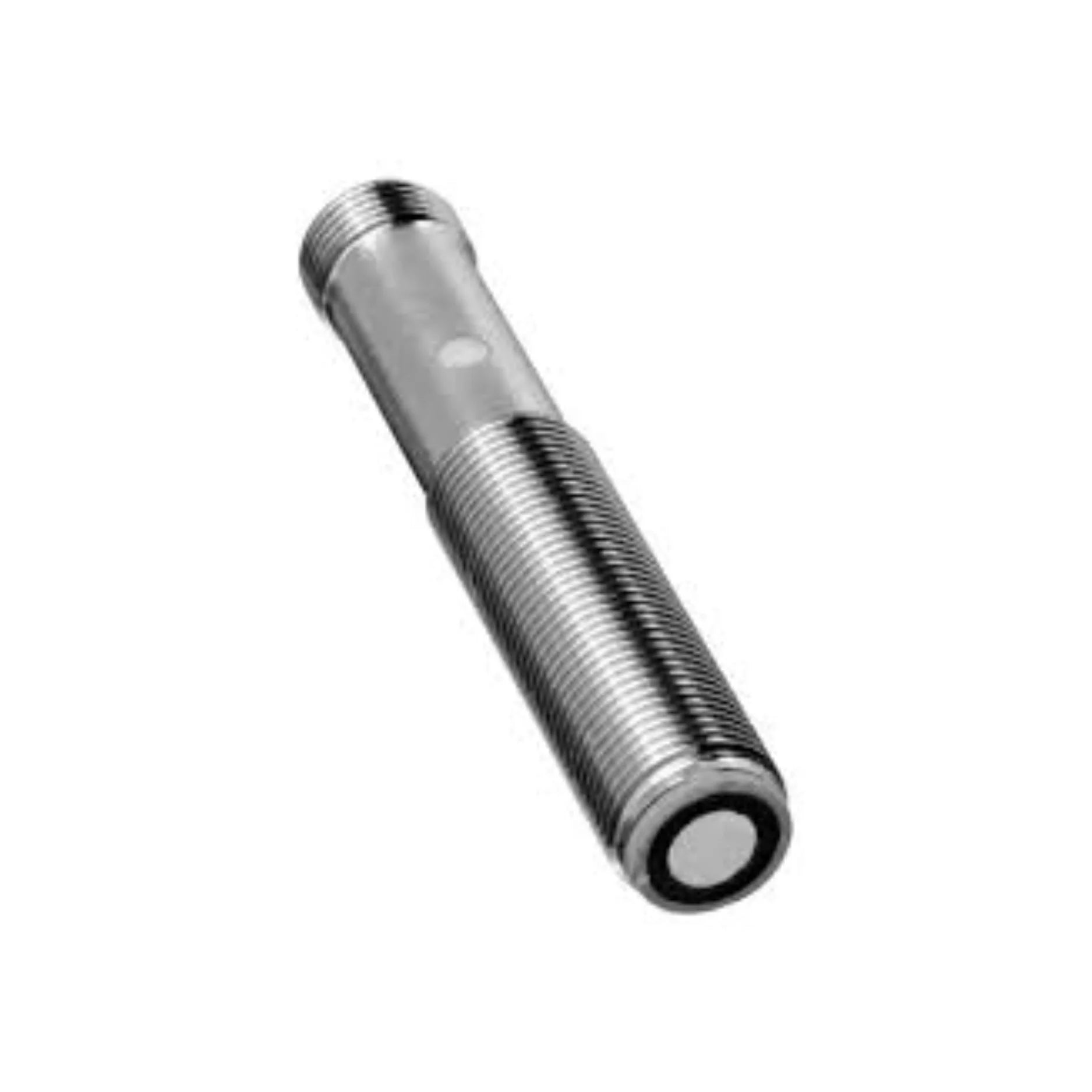

Pepperl+Fuchs UB200-12GM-I-V1

Overview

Elevate your industrial automation processes with the Pepperl+Fuchs UB200-12GM-I-V1, a cutting-edge M12 ultrasonic sensor engineered for unparalleled precision in close-range distance measurement. This high-performance device is meticulously crafted to meet the demanding requirements of modern industrial environments, offering reliable and continuous monitoring within a sensing range of 15 to 200 mm. Its compact M12 cylindrical form factor ensures seamless integration into even the most space-constrained applications, without compromising on functionality or accuracy. Equipped with a standard 4–20 mA analog output, the UB200-12GM-I-V1 provides real-time, proportional data, making it an indispensable tool for applications requiring exacting level detection, object positioning, or distance verification.

Designed for durability and consistent operation, this Pepperl+Fuchs sensor embodies advanced ultrasonic technology, delivering exceptional performance where conventional sensors fall short. From detecting fill levels in small containers to precise part positioning on intricate assembly lines, the UB200-12GM-I-V1 stands as a testament to engineering excellence, promising stable and repeatable measurements under various operating conditions.

Key Features

• Precision Sensing Range: Optimized for short to medium distances, accurately detecting objects within a 15 to 200 mm range, catering to a diverse array of close-proximity measurement needs.
• Reliable Analog Output: Delivers a clean and proportional 4–20 mA current output, seamlessly integrating with existing control systems for accurate and continuous data feedback.
• Ultra-Compact M12 Design: Its slender 12 mm diameter M12 threaded housing allows for effortless installation in tight or confined spaces, maximizing design flexibility.
• Rapid Response Time: An impressive response delay of approximately 30 ms ensures that measurements are nearly instantaneous, critical for dynamic applications.
• Integrated Temperature Compensation: Guarantees consistent measurement accuracy irrespective of fluctuating ambient temperatures, crucial for stable environmental performance.
• Clear LED Indicators: Features bright yellow and red LEDs for immediate and unequivocal status indication, simplifying operational oversight and diagnostic checks.
• Robust IP67 Construction: Encased in a durable nickel-plated brass housing with an IP67 rating, offering superior protection against dust and water ingress, ideal for harsh industrial settings.

Technical Specifications

• Model Number: UB200-12GM-I-V1
• Sensing Range: 15 to 200 mm
• Adjustment Range: 20 to 200 mm
• Dead Band: 0 to 15 mm
• Standard Target Plate: 100 mm x 100 mm
• Transducer Frequency: Approximately 400 kHz
• Response Delay: Approximately 30 ms
• Operating Voltage: 10 to 30 V DC, with ≤10% ripple
• No-Load Supply Current: ≤30 mA
• Analog Output: 4–20 mA
• Resolution: 0.17 mm
• Deviation of Characteristic Curve: ±1% of full-scale value
• Repeat Accuracy: ±0.5% of full-scale value
• Load Impedance: 0 to 200 Ω
• Temperature Influence: ±1.5% of full-scale value
• Ambient Temperature Range: -25°C to 70°C (-13°F to 158°F)
• Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
• Connection Type: M12 x 1, 4-pin connector
• Housing Material: Nickel-plated brass
• Degree of Protection: IP67
• Dimensions: 12 mm diameter, 70 mm length
• Weight: Approximately 25 g

Applications

• Precise Level Measurement: Ideal for accurately monitoring liquid or granular material levels in small tanks, hoppers, or specialized containers within manufacturing and processing industries.
• Industrial Distance Sensing: Critical for precise object recognition and proximity sensing in automated production lines, robotics, and material handling systems.
• Automated Positioning Tasks: Essential for determining the exact placement and alignment of components during assembly processes, enhancing product quality and manufacturing efficiency.
• Integration into Compact Machinery: Perfectly suited for equipment with limited installation space, such as miniature conveyors, specialized packaging machines, or portable inspection devices.
• Collision Avoidance: Provides reliable short-range detection for automated guided vehicles (AGVs) or collaborative robots operating in confined environments.

Why Choose This Model?

The Pepperl+Fuchs UB200-12GM-I-V1 stands out as a superior choice for a multitude of reasons, making it an invaluable asset for your automation needs. Its exceptional high precision is evident in its remarkable 0.17 mm resolution, guaranteeing highly accurate and repeatable measurements that are critical for quality control and operational efficiency. The sensor's space-efficient design, characterized by its robust M12 housing, allows for straightforward integration into the most challenging and compact installations without sacrificing performance or necessitating complex modifications to existing machinery. Furthermore, its reliable performance is bolstered by integrated temperature compensation, ensuring consistent and accurate readings across a wide range of environmental conditions. This robustness, coupled with its IP67 rating, means unwavering operation even in demanding industrial environments.

Finally, the inclusion of user-friendly LED indicators provides immediate visual feedback on the sensor's operational status, simplifying setup, monitoring, and troubleshooting, thereby reducing downtime and enhancing overall system reliability. Choosing the UB200-12GM-I-V1 means investing in a solution that delivers precision, adaptability, and unwavering performance.

Order Now

Ready to upgrade your industrial sensing capabilities? The Pepperl+Fuchs UB200-12GM-I-V1 M12 ultrasonic sensor is available for immediate dispatch. Experience the difference that precision engineering and robust design can make to your operations. We offer worldwide shipping to ensure you receive this essential automation component no matter your location. Contact us today to place your order or for further inquiries.
