Pepperl+Fuchs UB1000-18GM75-U-V15

Overview

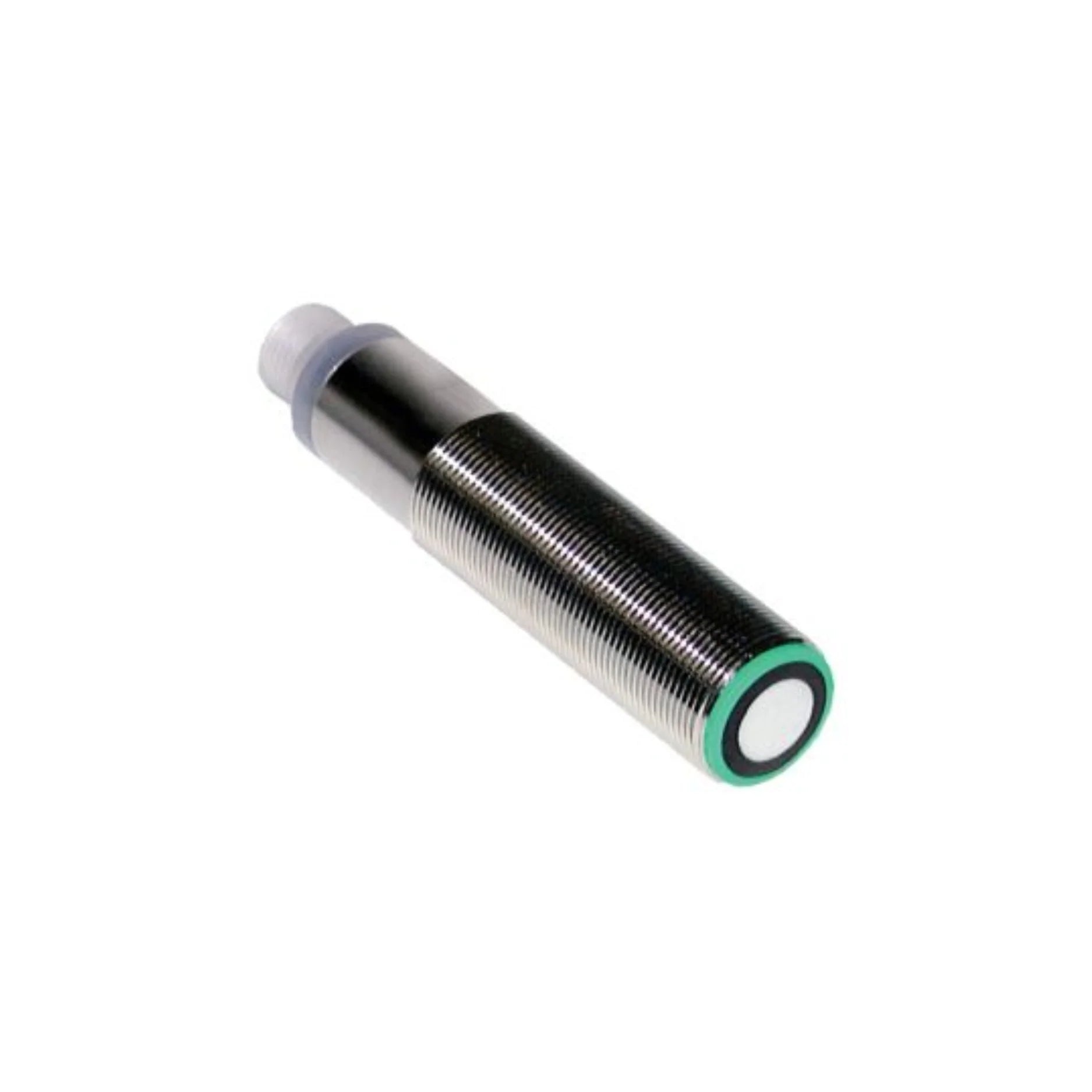

The Pepperl+Fuchs UB1000-18GM75-U-V15 (Part No. 204536) is a robust and highly reliable M18 cylindrical ultrasonic sensor engineered for precise, non-contact distance measurement in demanding industrial settings. Offering a generous measuring range of up to 1000 mm, this sensor provides a dependable 4–20 mA analog output, making it an ideal solution for applications requiring continuous position monitoring or level detection. Its advanced ultrasonic technology ensures consistent performance irrespective of an object's color, shape, or surface texture, including transparent or shiny materials, where other sensing technologies might fail. With its IP67 protection rating, the UB1000-18GM75-U-V15 is built to deliver exceptional accuracy and longevity, even in harsh environmental conditions.

Key Features

• Extended Measuring Range: Accurately detects objects from 80 mm up to 1000 mm.
• Analog Output: Provides a standard 4–20 mA output signal for seamless integration into control systems.
• Wide Operating Voltage: Compatible with 10–30 VDC power supplies.
• Durable Housing: Features a compact M18 cylindrical metal body for robust performance.
• Secure Connection: Equipped with an M12 4-pin connector for reliable electrical connectivity.
• Superior Protection: IP67-rated enclosure ensures resistance to dust and water ingress.
• Easy Teach-In Function: Simplifies setup and adjustment of sensing range and output parameters.
• High Switching Frequency: Operates at approximately 20 Hz for responsive detection.
• LED Indicators: Provides clear visual feedback on sensor status and signal strength.
• Broad Temperature Range: Functions flawlessly in environments ranging from -25°C to +70°C.

Technical Specifications

• Model Number: UB1000-18GM75-U-V15
• Part Number: 204536
• Sensor Type: Ultrasonic, diffuse mode
• Resolution: ≤ 1 mm, ensuring fine measurement precision.
• Linearity Deviation: ≤ 1% of full scale, guaranteeing high accuracy across the range.
• Repeat Accuracy: ±0.15%, for consistent and reliable readings over time.
• Load Resistance: ≤ 500 Ω, compatible with various control circuits.
• Current Consumption: ≤ 35 mA, for efficient power usage.
• Material – Housing: Constructed from nickel-plated brass, offering excellent corrosion resistance.
• Material – Sensing Face: Made from high-quality plastic for optimal ultrasonic wave transmission.
• Weight: Approximately 45 g, for lightweight integration.

Applications

The versatility and high performance of the Pepperl+Fuchs UB1000-18GM75-U-V15 make it suitable for a wide array of industrial applications, including:

• Tank Level Monitoring: Provides accurate and continuous feedback for fill-level management in tanks and containers.
• Packaging Lines: Essential for precise detection of product presence, position, and orientation, optimizing throughput and preventing errors.
• Automated Systems: Ideal for continuous position tracking of components and machinery, enhancing automation efficiency.
• Material Handling: Facilitates accurate distance measurement for alignment, sorting, and positioning tasks in conveyor and robotic systems.
• Glass, Transparent & Shiny Object Detection: Uniquely excels in detecting challenging materials where optical sensors struggle, due to its independence from surface optical properties.

Why Choose This Model?

The Pepperl+Fuchs UB1000-18GM75-U-V15 stands out as a superior choice for your sensing requirements due to its blend of advanced features and robust construction:

• Reliable Long-Range Sensing: Delivers accurate measurements up to 1000 mm, paired with dependable analog feedback for continuous monitoring.
• Object-Independent Performance: Provides stable and precise measurements regardless of an object's color, transparency, or surface reflectivity, ensuring consistent operation in diverse environments.
• Effortless Integration: Features an M12 connector and a user-friendly teach-in setup, simplifying installation and configuration, thereby reducing downtime.
• Industrial-Grade Durability: Its IP67-rated protection ensures enduring performance and reliability in the most challenging industrial conditions, resistant to dust and water.
• Space-Saving Design: The compact M18 housing allows for easy integration into tight control layouts and machinery, maximizing operational space.
• Trusted Brand Quality: Backed by Pepperl+Fuchs, a leader in industrial sensor technology, ensuring high-quality, precision, and longevity.

Order Now

The Pepperl+Fuchs UB1000-18GM75-U-V15 ultrasonic sensor is in stock and ready to ship worldwide. Enhance your industrial automation with this high-performance, durable, and versatile sensing solution. Contact us today to place your order or for further inquiries.
