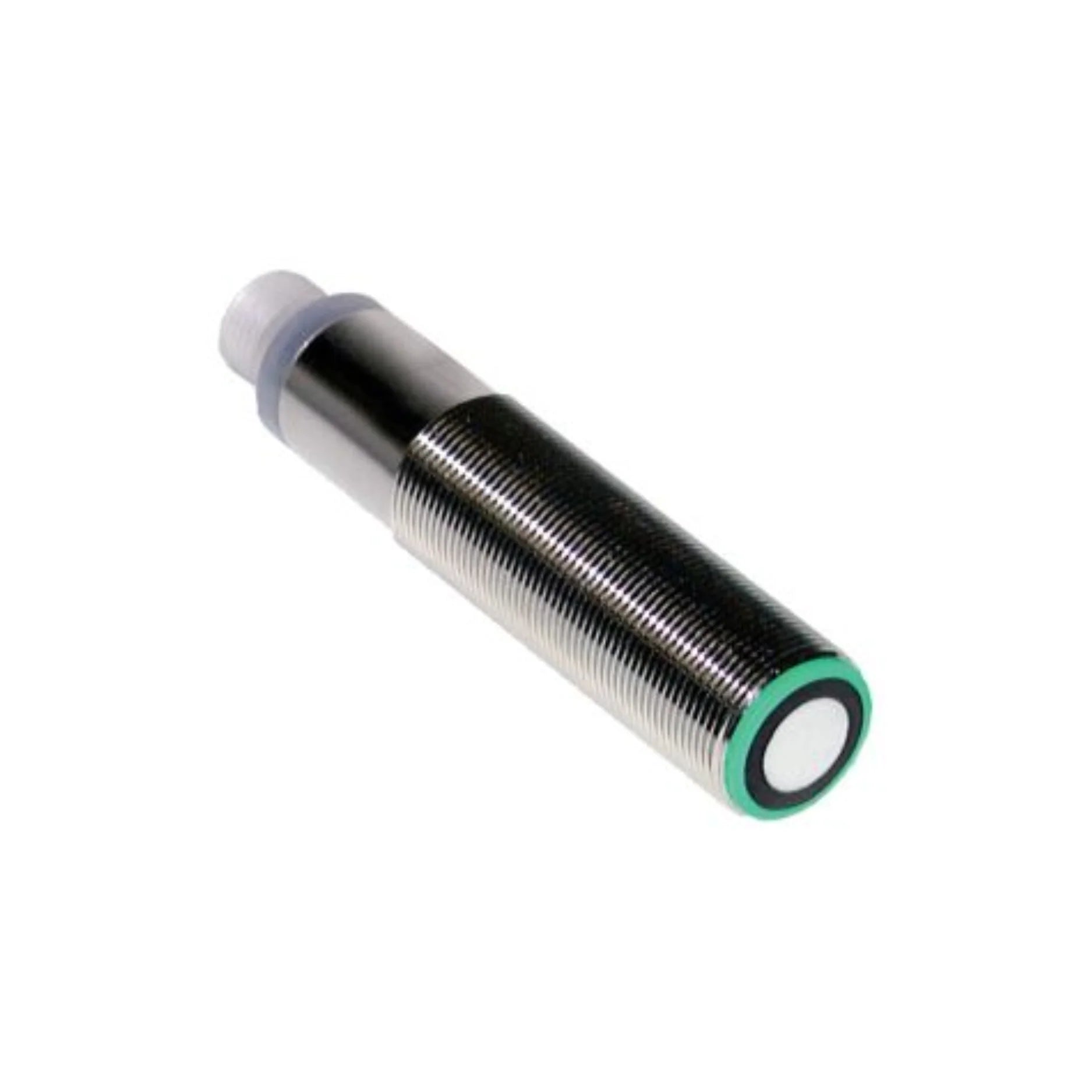

Pepperl+Fuchs UB1000-18GM75-I-V15

Overview

Unlock unparalleled precision in industrial automation with the new Pepperl+Fuchs UB1000-18GM75-I-V15 ultrasonic sensor. Engineered for demanding environments, this robust cylindrical sensor offers reliable, non-contact distance measurement across a versatile 70 to 1000 mm range. Its integrated 4–20 mA analog output ensures seamless integration and accurate data transmission for a wide array of applications, from intricate assembly lines to critical level monitoring in tanks.

Designed with flexibility in mind, the UB1000-18GM75-I-V15 features customizable measuring windows and selectable sound beam widths, allowing for precise adaptation to your specific operational needs. Furthermore, advanced synchronization options facilitate harmonious operation within complex multi-sensor systems, preventing mutual interference and ensuring consistent performance. With its compact M18 housing and comprehensive LED indicators, installation and status monitoring are effortlessly streamlined, making this sensor an indispensable component for optimizing your industrial processes.

Key Features

• Expansive Sensing Range: Accurately measures distances from 70 mm to an impressive 1000 mm.
• Industry-Standard Analog Output: Provides a stable 4–20 mA signal for reliable data integration.
• Adjustable Measuring Window: Customize the detection area to focus on specific zones, enhancing application precision.
• Selectable Sound Beam Width: Optimize the sensor’s acoustic profile to suit various object sizes and environmental conditions.
• Advanced Synchronization Options: Effortlessly coordinate multiple sensors to prevent cross-talk and improve system accuracy.
• Integrated Temperature Compensation: Guarantees consistent and accurate measurements, even amidst fluctuating ambient temperatures.
• Compact and Durable Design: Features an M18 threaded housing (75 mm length, 18 mm diameter) crafted from nickel-plated brass, ensuring easy installation and longevity in harsh industrial settings.
• Intuitive LED Indicators: Provides clear visual feedback on sensor status and alignment for quick diagnostics and setup.

Technical Specifications

• Model Number: UB1000-18GM75-I-V15
• Series: UB
• Transducer Frequency: Approximately 255 kHz
• Response Delay: Approximately 125 ms
• Resolution: 0.35 mm
• Deviation of Characteristic Curve: ±1% of full-scale value
• Repeat Accuracy: ±0.1% of full-scale value
• Load Impedance: 0 to 300 Ohms
• Operating Voltage: 10 to 30 V DC
• No-Load Supply Current: ≤45 mA
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Housing Material: Nickel-plated brass
• Protection Class: IP67
• Connection Type: M12 x 1, 5-pin connector
• Dimensions: Length 75 mm, Diameter 18 mm
• Weight: Approximately 60 g
• Certifications: CE, cULus Listed

Applications

• Precise Level Measurement: Attain accurate and continuous monitoring of fluid or granular material levels in tanks, silos, and hoppers. This ensures optimal inventory management and prevents overflows or shortages.
• Reliable Object Detection: Flawlessly detect the presence or absence of objects on conveyor belts, automated assembly lines, and packaging machinery, enhancing throughput and reducing errors.
• Accurate Distance Measurement for Positioning: Implement precise positioning control in robotics, automated guided vehicles (AGVs), and other automated systems, guaranteeing superior operational accuracy.
• Dynamic Loop Control: Maintain consistent tension in material processing applications by accurately measuring and controlling the sag of materials such as paper, film, or textiles.

Why Choose the Pepperl+Fuchs UB1000-18GM75-I-V15?

The Pepperl+Fuchs UB1000-18GM75-I-V15 ultrasonic sensor stands out as a prime choice for industrial professionals demanding excellence. Its highly versatile sensing capabilities, combined with adjustable parameters, ensure it can be fine-tuned to suit an extensive range of applications, providing optimal performance where other sensors fall short. The commitment to high accuracy and a minimal deviation in its characteristic curve means you can rely on consistently precise measurements, crucial for critical automation tasks.

Furthermore, its robust construction, featuring a durable nickel-plated brass housing and an IP67 protection class, guarantees longevity and reliable operation even in the most challenging industrial environments. Seamless integration is a given, thanks to its standard M12 connector and compact M18 design, which significantly reduces installation time and complexity. Choosing the UB1000-18GM75-I-V15 means investing in a high-performance, durable, and easily integratable solution that will elevate the efficiency and reliability of your automation systems.

Order Now

Elevate your industrial automation capabilities today. The Pepperl+Fuchs UB1000-18GM75-I-V15 ultrasonic sensor is available for immediate worldwide shipping. Secure your advanced sensing solution and experience the difference in precision and reliability.
