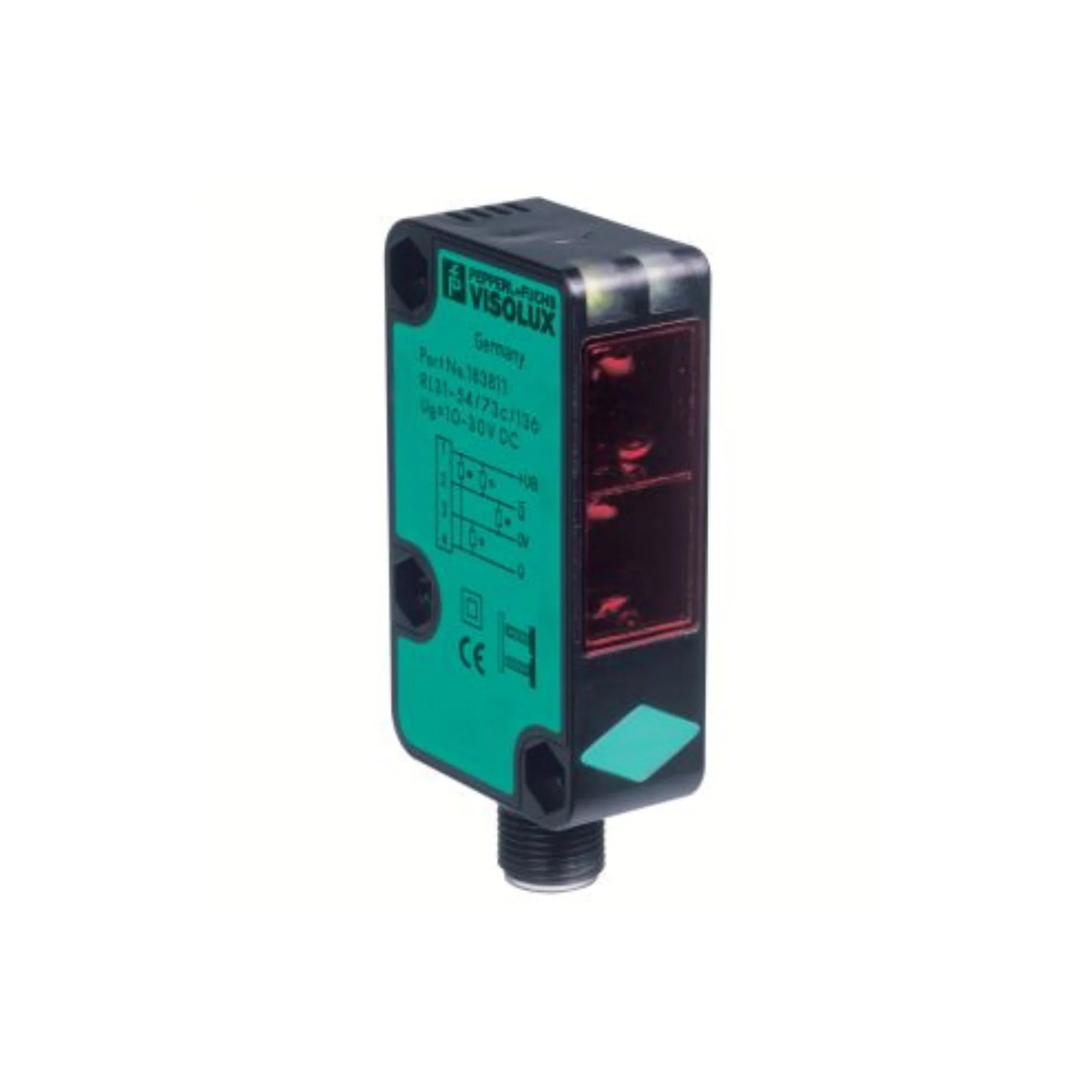

Pepperl+Fuchs RL31-8-1200-RT/73c/136

Overview

The Pepperl+Fuchs RL31-8-1200-RT/73c/136 is a state-of-the-art diffuse mode sensor engineered for unparalleled precision and reliability in demanding industrial environments. This high-performance sensor is specifically designed to accurately detect objects within an impressively versatile and adjustable range of 0 to 1200 mm. Its integrated push-pull (4 in 1) output ensures seamless compatibility and dependable signaling across a multitude of automation systems, providing both PNP and NPN functionality. Built with a compact form factor and an exceptional IP67 protection rating, the RL31-8-1200-RT/73c/136 stands as a testament to durability and efficiency, making it the ideal solution for harsh and challenging operational settings where consistent performance is paramount. From material handling to complex assembly lines, this sensor delivers the accuracy and resilience that modern industrial applications demand.

Key Features

• Adjustable Detection Range: Offers a highly flexible 0 to 1200 mm sensing distance, enabling precise object detection tailored to diverse industrial requirements and varying application setups.
• Versatile Output Type: Equipped with a sophisticated push-pull (4 in 1) output, this sensor supports both PNP and NPN connections, simplifying integration into existing control systems and enhancing operational flexibility.
• Optimized Light Source: Utilizes a modulated visible red light (630 nm) for superior object recognition, ensuring consistent and highly accurate detection even in environments with varying ambient light conditions.
• Compact and Robust Design: Featuring a slim profile with dimensions of 62 mm (height) × 18 mm (width) × 35 mm (depth), it facilitates effortless installation in space-constrained areas without compromising performance.
• Exceptional Protection Rating: Boasts an IP67-rated enclosure, providing comprehensive protection against the ingress of dust and water, thereby extending the sensor's lifespan and reliability in rugged industrial conditions.
• Wide Operating Temperature Range: Capable of functioning flawlessly across a broad temperature spectrum from -30°C to +55°C, ensuring consistent operation in extreme thermal environments.
• Secure Connection: Features a robust 4-pin M12 x 1 connector, guaranteeing a stable and secure electrical connection for uninterrupted data transmission.
• Intuitive Indication: Incorporated with a green LED for power status and a yellow LED for clear signal indication, offering immediate visual feedback on the sensor's operational state.

Technical Specifications

• Model Number: RL31-8-1200-RT/73c/136
• Adjustable Detection Range: 0 to 1200 mm
• Reference Target: Standard white, 100 mm × 100 mm
• Light Source: LED, 630 nm
• Light Type: Modulated visible red light
• Diameter of Light Spot: Approximately 25 mm at 1.2 m distance
• Opening Angle: 2°
• Ambient Light Limit: 50,000 Lux (according to EN 60947-5-2)
• Operating Voltage: 10 to 30 V DC
• Ripple: 10%
• No-Load Supply Current: ≤ 20 mA
• Switching Type: Light-on
• Signal Output: 2 push-pull (4 in 1) outputs, short-circuit and reverse polarity protected
• Switching Voltage: Max. 30 V DC
• Switching Current: Max. 100 mA
• Voltage Drop: ≤ 1.5 V
• Switching Frequency: ≤ 500 Hz
• Response Time: ≤ 1 ms
• Housing Material: Polycarbonate
• Optical Face Material: PMMA
• Degree of Protection: IP67
• Connection Type: 4-pin M12 x 1 connector
• Dimensions: 62 mm (H) × 18 mm (W) × 35 mm (D)
• Weight: Approximately 25 g
• Compliance: EN 60947-5-2

Applications

• Material Handling Systems: Optimizes conveyor operations through precise object detection for efficient sorting, accurate positioning, and streamlined logistics within automated warehouses and manufacturing facilities.
• Packaging Industry: Enhances quality control and operational efficiency by reliably verifying the presence of items, ensuring correct product count, and maintaining packaging integrity on high-speed production lines.
• Automotive Manufacturing: Facilitates seamless assembly processes by providing highly accurate detection of critical vehicle components, contributing to improved automation and adherence to strict quality standards.
• Process Control and Monitoring: Plays a vital role in industrial process management by continuously monitoring material levels and positions, enabling precise control and automation in various manufacturing and processing environments.
• Logistics and Warehousing: Streamlines inventory management and order fulfillment by automating the detection and tracking of goods, minimizing errors and increasing operational throughput.
• Machine Building: Integrates effortlessly into a wide array of machinery, offering reliable sensing capabilities essential for safety, operational feedback, and automated functions in complex mechanical systems.

Why Choose This Model?

The Pepperl+Fuchs RL31-8-1200-RT/73c/136 stands out as a superior choice for industrial sensing due to its exceptional combination of flexibility, reliability, and robust design. Its adjustable sensing range of 0 to 1200 mm provides unparalleled versatility, allowing it to adapt effortlessly to various application distances and object sizes, thus minimizing the need for multiple sensor types. The inclusion of a reliable push-pull output ensures broad compatibility with both PNP and NPN input devices, significantly simplifying integration into diverse control architectures and reducing setup complexities. Furthermore, its durable IP67-rated construction guarantees sustained, high-performance operation even in the most challenging industrial environments, offering superior protection against dust, water, and other contaminants. This sensor is not just a component; it's a long-term investment in precision, efficiency, and operational continuity for your critical applications.

Order Now

Elevate your industrial automation processes with the precision and reliability of the Pepperl+Fuchs RL31-8-1200-RT/73c/136 diffuse mode sensor. Experience enhanced operational efficiency, reduced downtime, and seamless integration into your existing systems. Contact us today to place your order and take the first step towards optimized performance in your facility.
