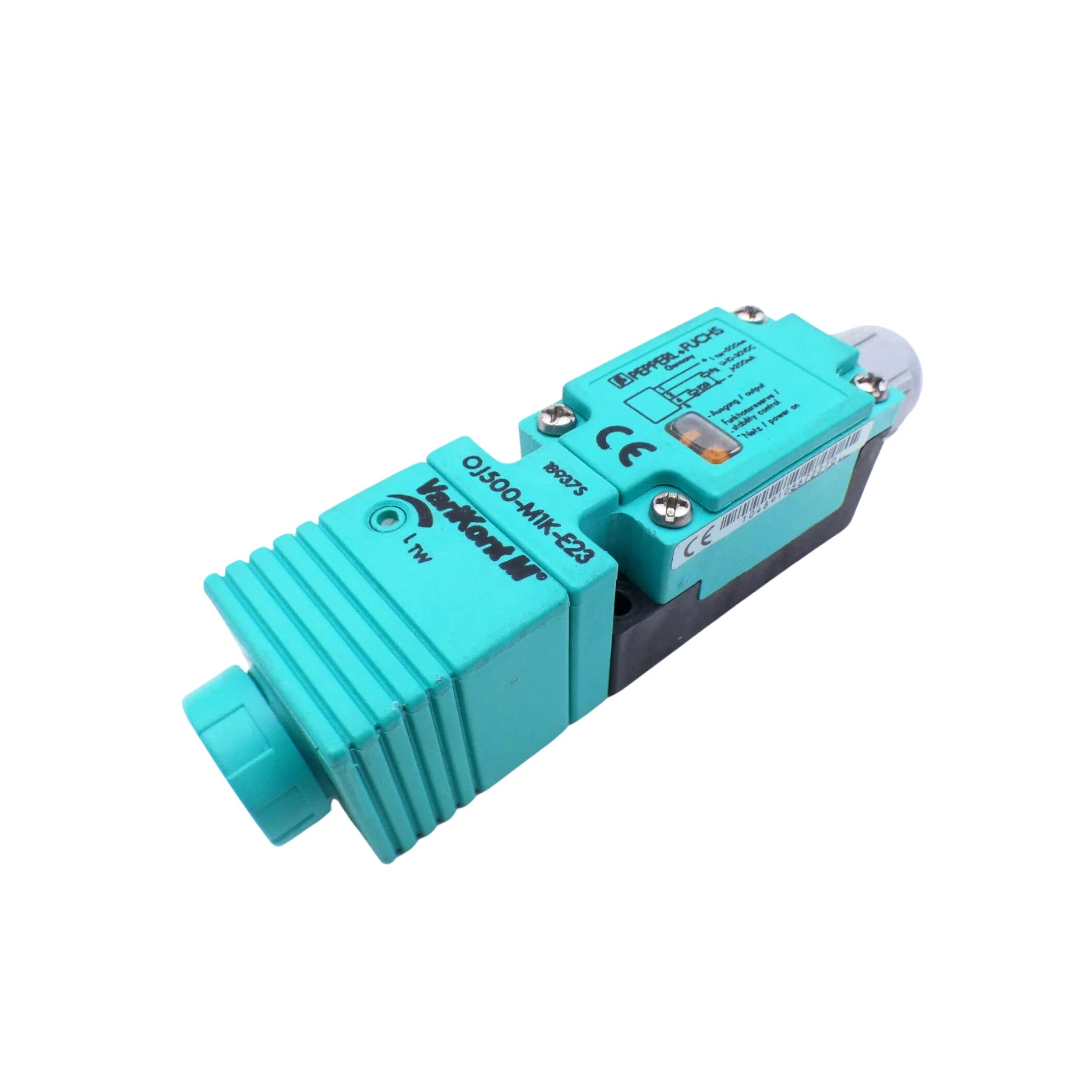

Pepperl+Fuchs OJ500-M1K-E23

Overview

The Pepperl+Fuchs OJ500-M1K-E23 fiber optic sensor is engineered for exceptional performance in demanding industrial environments. Designed for seamless integration with glass fiber optics, this versatile sensor delivers unparalleled precision in detecting objects across a wide range of applications. Its innovative adjustable sensor head, coupled with parameterizable light-on/dark-on settings, provides optimal flexibility for diverse industrial processes. Whether you're dealing with intricate assembly lines or high-speed packaging operations, the OJ500-M1K-E23 offers reliable and accurate detection, ensuring operational efficiency and consistency. This robust sensor is a testament to Pepperl+Fuchs' commitment to advanced industrial sensing solutions.

Key Features

• Versatile Sensing Range: Achieves an impressive detection range of up to 100 mm with LMR 18-3,2-1,0-K4 fiber optics, and an extended range of up to 600 mm with LME 18-2,3-0,5-K3 fiber optics, accommodating various application needs.
• Optimized Light Source: Utilizes a modulated infrared LED for enhanced detection stability and resistance to ambient light interference.
• High Ambient Light Immunity: Operates reliably in environments with ambient light levels up to 40,000 Lux, minimizing false triggers and maximizing uptime.
• Adjustable Sensor Head: Provides superior flexibility in installation and alignment, allowing for precise positioning and optimized performance in complex setups.
• Light-on/Dark-on Parameterizable: Easily switch between light-on and dark-on modes to precisely match your application's detection requirements.
• High Switching Frequency: Boasts a rapid switching frequency of up to 1.5 kHz, switchable to 200 Hz, enabling the detection of fast-moving objects with exceptional accuracy.
• Wide Operating Voltage: Compatible with a 10 to 30 V DC power supply, offering broad integration capabilities within existing industrial systems.
• Robust Output Type: Features a PNP output with integrated short-circuit and reverse polarity protection, ensuring dependable operation and system safety.
• Superior Protection Rating: Boasts an IP67 protection rating, safeguarding the sensor against dust and water ingress, making it ideal for harsh industrial conditions.
• Broad Operating Temperature Range: Functions flawlessly across a wide temperature spectrum, from -25°C to 70°C (-13°F to 158°F), guaranteeing consistent performance in extreme environments.
• Durable Housing Material: Constructed with PBT housing and a scratch-resistant mineral glass lens, providing long-lasting durability and reliable operation.

Technical Specifications

• Model: OJ500-M1K-E23
• Part Number: 018937
• Control Elements: Intuitive programming switch for comprehensive configuration, including light-on/dark-on changeover, operating frequency selection, switching frequency selection, pulse extension, and dynamic/static operating reserve adjustment.
• Indicators: Clear visual feedback with a green LED for operation status, a yellow LED for switching state, and a flashing red LED for operating reserve indication, simplifying monitoring and diagnostics.
• Connection: Secure M16 terminal compartment, accommodating core cross-sections up to 2.5 mm² for reliable electrical connections.
• Dimensions: Compact design with dimensions of 30 mm (Height) x 30 mm (Width) x 102 mm (Depth), facilitating integration into space-constrained applications.
• Mass: Lightweight at 100 g, minimizing additional load on machinery and structures.

Applications

• Automation Systems: Provides accurate object detection and positioning in complex assembly lines, enhancing efficiency and reducing errors.
• Material Handling: Reliably detects objects on conveyor systems, optimizing material flow and preventing bottlenecks in logistics and manufacturing.
• Packaging Machines: Ensures precise presence detection in high-speed packaging processes, contributing to consistent product quality and reduced waste.
• Robotics: Facilitates crucial position sensing in robotic applications, enabling precise movements and reliable interaction with workpieces.

Why Choose This Model?

The Pepperl+Fuchs OJ500-M1K-E23 stands out as a superior choice for industrial sensing due to its exceptional blend of versatility, robustness, and high performance. Its compatibility with various glass fiber optics allows for tailored sensing ranges, making it adaptable to a multitude of tasks from short-range intricate detections to broader area monitoring. The IP67-rated housing ensures unwavering reliability even in the most challenging and aggressive industrial environments, protecting against dust and water ingress. Furthermore, the flexible configuration options, including an adjustable sensor head and parameterizable settings, empower users to fine-tune the sensor's operation to meet unique application demands. With its high-speed performance and rapid response time, the OJ500-M1K-E23 ensures that even the fastest-moving objects are detected with precision, minimizing delays and maximizing throughput. Investing in this model means choosing a sensor that delivers consistent, accurate, and dependable results, ultimately contributing to enhanced operational efficiency and reduced downtime in your industrial processes.

Order Now

Elevate your industrial automation capabilities today with the Pepperl+Fuchs OJ500-M1K-E23 fiber optic sensor. Available for prompt shipping, this advanced sensing solution is ready to integrate into your operations and deliver the precision and reliability you demand. Secure your competitive edge with this high-performance sensor.
