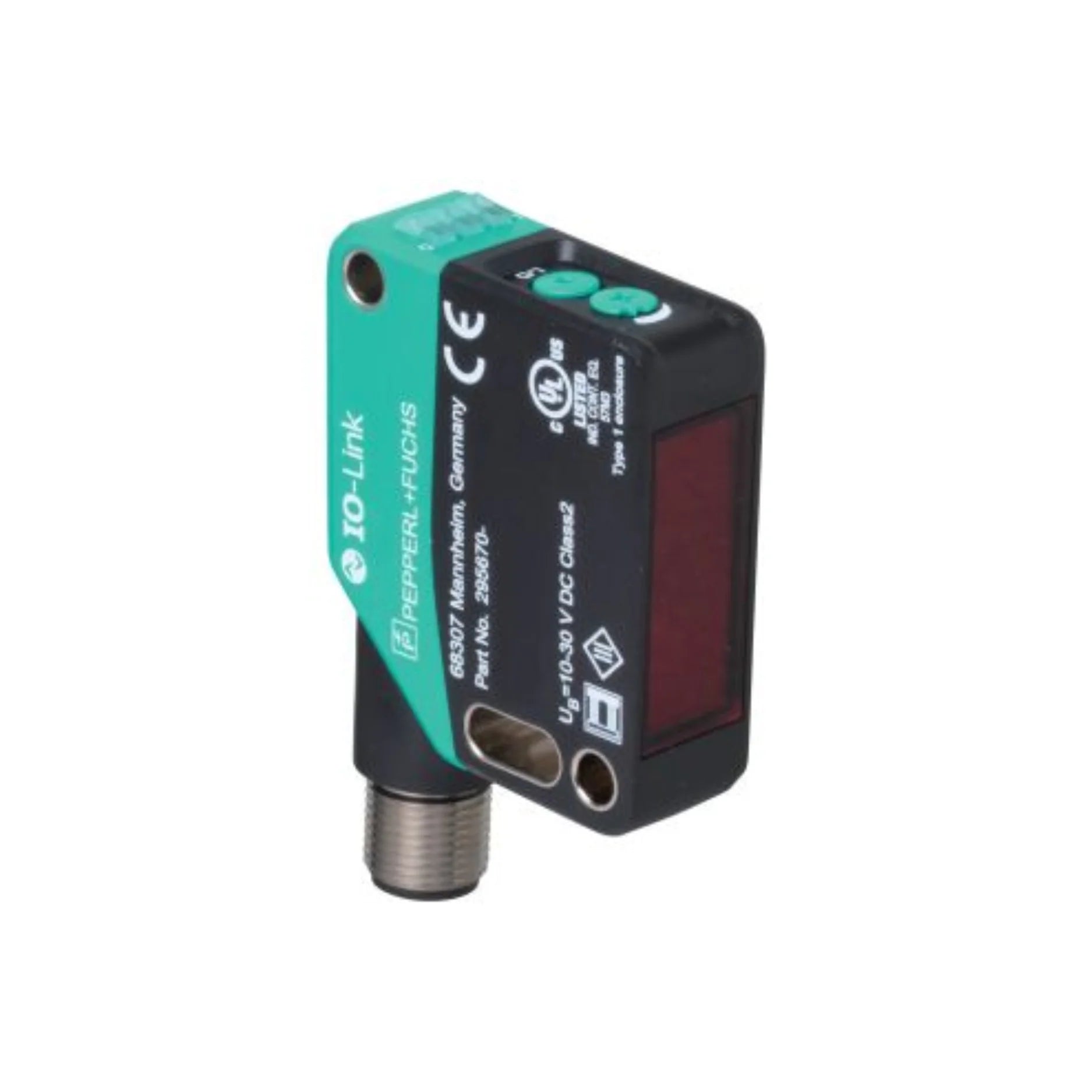

Pepperl+Fuchs OBT650-R200-2EP-IO-V1

Overview

The Pepperl+Fuchs OBT650-R200-2EP-IO-V1 (Part No. 295670-100112) is a state-of-the-art photoelectric diffuse sensor engineered for unparalleled performance and reliability in diverse industrial environments. As a flagship model from the cutting-edge R200 series, this sensor boasts an impressive sensing range of up to 650 mm, making it ideal for a wide array of detection tasks. Integrated with advanced IO-Link technology, the OBT650-R200-2EP-IO-V1 goes beyond simple object detection, enabling sophisticated diagnostics, seamless remote configuration, and real-time data communication for truly smart automation solutions. Its robust VISTAL™ housing, coupled with an exceptional IP67/IP69K protection rating, ensures unwavering operation even in the most challenging conditions, including those requiring high-pressure washdowns. From demanding food & beverage processing to high-speed packaging lines and complex industrial automation, this sensor is built to deliver precision and endurance.

Key Features

• Extended Sensing Range: Detect objects reliably within a 10–650 mm range using diffuse reflection with precise background suppression.
• Dual PNP Outputs: Equipped with 2 x PNP outputs, configurable as Normally Open (NO) or Normally Closed (NC), offering versatile control integration.
• IO-Link Connectivity: Features integrated IO-Link (Smart Sensor Profile) for advanced parameterization, diagnostics, condition monitoring, and intelligent data exchange.
• High-Visibility Light Source: Utilizes a red light LED for clear indication and easy alignment.
• Compact & Robust Design: Housed in the R200 rectangular compact body, manufactured from durable VISTAL™, ensuring long-term reliability.
• Industrial-Grade Connector: Standard M12 4-pin, A-coded connector for secure and reliable electrical connections.
• Superior Environmental Protection: IP67 / IP69K rated enclosure guarantees resistance against dust, water immersion, and high-pressure, high-temperature washdowns.
• Wide Operating Voltage: Operates efficiently within a 10–30 VDC power supply range.
• Fast Response Time: Achieves a switching frequency of up to 1 kHz, perfect for high-speed applications.
• Flexible Teach-In Function: Easy configuration via a manual teach button or remotely through IO-Link.
• Broad Temperature Resilience: Reliably functions across a wide temperature range from -30°C to +60°C.

Technical Specifications

• Model Number: OBT650-R200-2EP-IO-V1
• Part Number: 295670-100112
• Sensing Principle: Diffuse mode with reliable background suppression
• Configuration: User-friendly setup via IO-Link interface or dedicated teach button
• Operating Current: Maximum 100 mA per output, ensuring energy efficiency.
• Response Time: Rapid response time of ≤ 0.5 ms for critical applications.
• Status Indicators: Dual LED indicators provide clear visual status for power and output.
• Dimensions: Compact footprint of approximately 50 x 40 x 20 mm for easy integration into confined spaces.
• Weight: Lightweight design, approximately 50 g.

Applications

• Packaging Lines: Precisely detect product presence, orientation, and position on high-speed packaging machinery.
• Food & Beverage Industry: Ideal for environments requiring stringent hygiene, capable of withstanding rigorous high-pressure and high-temperature cleaning regimes.
• Conveyor Systems: Accurately monitor object flow, spacing, and jam detection for optimized material handling.
• Robotics: Essential for presence detection of components and tools in fast-moving robotic arms and automated assembly cells.
• Industrial Automation: Enhances overall system intelligence through seamless Smart Sensor integration via IO-Link, providing valuable data for process optimization.

Why Choose This Model?

The Pepperl+Fuchs OBT650-R200-2EP-IO-V1 stands out as a superior choice for discerning engineers and system integrators. Its remarkable 650 mm diffuse sensing range, coupled with advanced background suppression, guarantees unparalleled detection accuracy. The integrated IO-Link capability transforms it into an intelligent device, offering proactive diagnostics, effortless remote configuration, and predictive maintenance insights that minimize downtime and optimize operational efficiency. With dual PNP outputs, it provides the flexibility needed for complex control logic integration. Furthermore, its formidable IP69K rating makes it an undisputed leader in environments subjected to frequent washdowns and harsh conditions, ensuring long-term performance and reliability where other sensors fail. The compact R200 housing and intuitive installation features underscore its user-centric design, making it an exceptionally compelling solution for modern industrial demands.

Order Now

Elevate your industrial processes with the precision and reliability of the Pepperl+Fuchs OBT650-R200-2EP-IO-V1. This high-performance photoelectric sensor is currently in stock and available for worldwide shipping. Secure your advanced automation solution today!
